24 Connectors Square LC/UPC Optical Fibre Polishing Fixture Kit Flexible Operation
Product Details
| Type: | Fiber Optic Production Machine | ODM/OEM: | Acceptable |
|---|---|---|---|
| Application: | Optical Fiber Connector | Use: | Fiber Patch Cord Production Line |
| Max Capacity: | 24 Connector | Connector Type: | SC/FC/ST/LC/MU/E2000 |
| Highlight |
LC Polishing Fixture,Square Polishing Fixture,LC fiber polishing kit |
||
Product Description

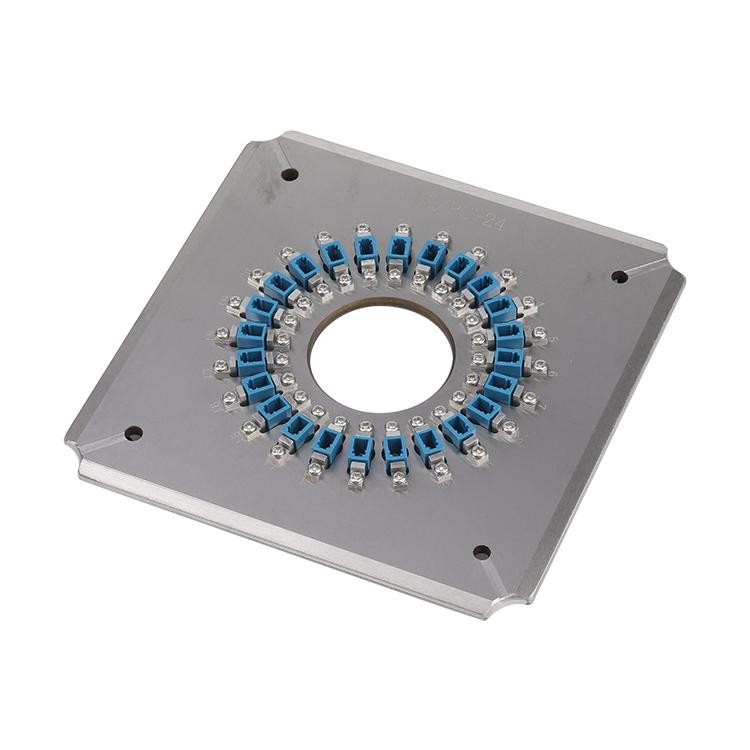

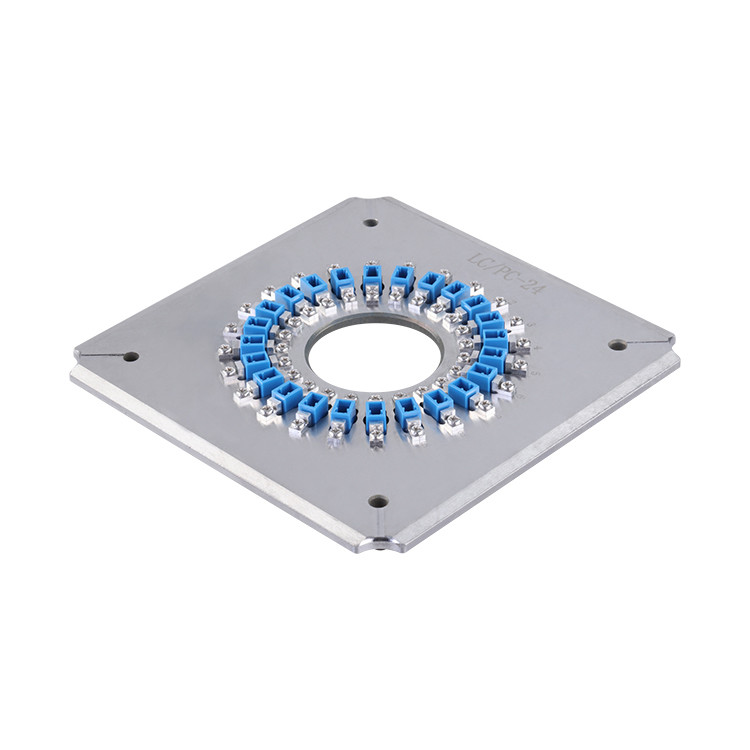

24 Connectors square LC/UPC fiber optic connector polishing jig fixtures
Model:LC/PC-24
Place of Origin:ShenZhen,China
Product description
This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
Feature
• Applicate to LC/PC connector polishing
• High efficiency, and polishing 24 connectors in one cycle
• Holders on jig replacable, effeciency for polishing cost saving
• The geometry dimensions of polished ferrules comply with IEC standards
• The first pass yield for end face quality reach 100%
Specifications
| 1. Machine Size | 174*174*26mm |
| 2. Net Weight | 1.3kg |
| 3. Max capactiy | 24 connectors a time |
| 4. Application | LC/PC connector polishing |
| 5. Suitable Machine | CLX-02E and SEIKOH GIKEN SFP-550 Serials |
| 6. Materials | harden stainless steel S136 |
Application
• Polishing LC conncetor for fiber optic patchcords manufacturing
• LC/PC connector polishing for fiber optic pigtail
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
- We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description
