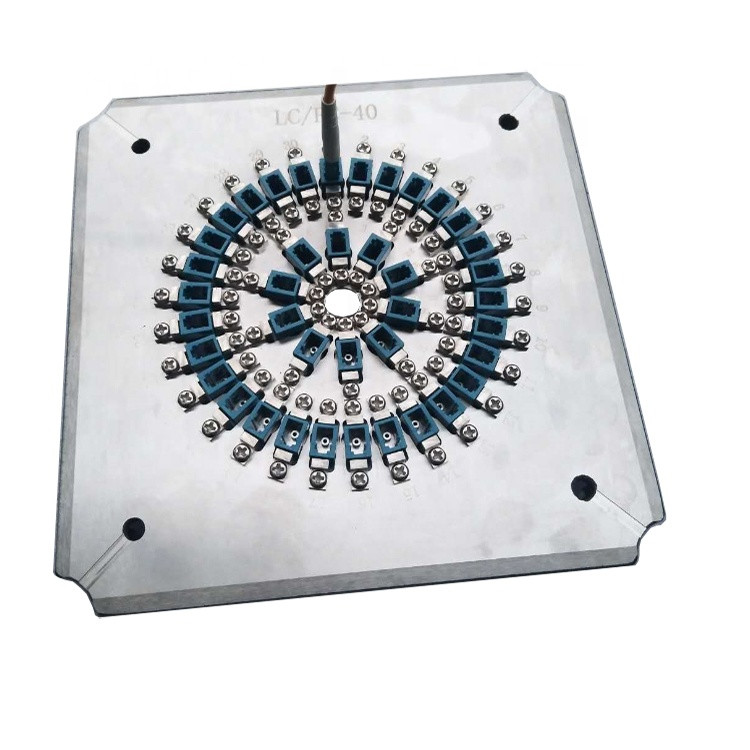

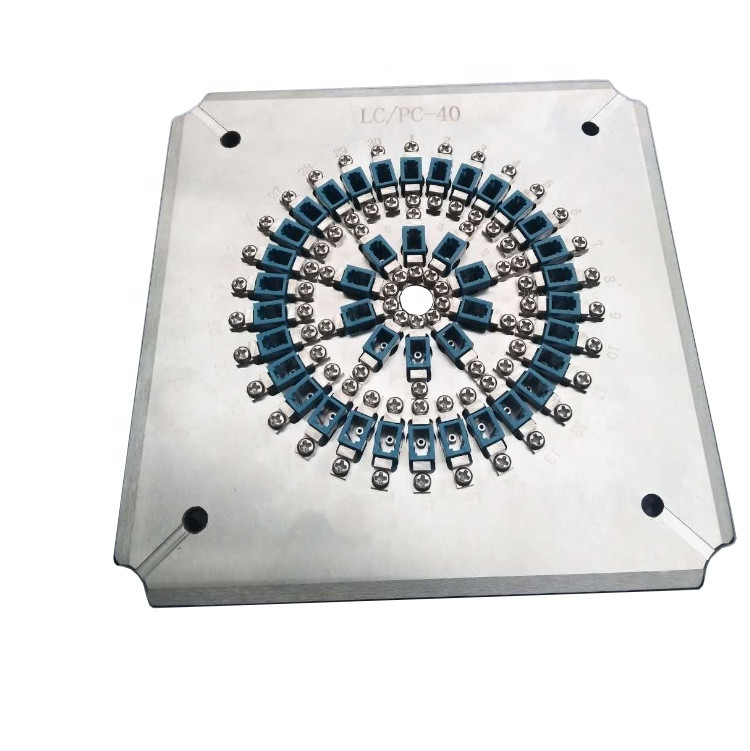

40 Ports Fiber Jig
Product Details
| Product Name: | Fiber Optic Polish Jig | End-face: | Angled PC |
|---|---|---|---|
| Suitable Machines: | CLX-02E/Seikoh Giken SFP-550 Series | Material: | Stainless Steel |
| Ferrule Diameter: | 1.25mm | Color: | Silver |
| Highlight |
40 Ports LC UPC Fiber Jig,Fiber Patch Cord Fiber Jig,40 Ports LC UPC Fiber Optic Polishing Kit |
||
Product Description
40 Ports LC UPC polishing fixture for fiber optical connector polishing
Model:LC/PC-40
Place of Origin:ShenZhen,China
Product description
This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
Feature
1.Applicate to SC/PC connector polishing
2.High efficiency, and polishing 32 ferrules in one cycle
3.Holders on jig replacable, effeciency for polishing cost saving
4.The geometry dimensions of polished ferrules comply with IEC standards
5.The first pass yield for end face quality reach 100%
Specifications
| Model | LC-PC-24 | LC-PC-40 | LC-PC-48 |
| Brand | CLX | CLX | CLX |
| Connector Type | LC PC | LC PC | LC PC |
| End-face | PC | PC | PC |
| Ferrule Diameter | 1.25 mm | 1.25 mm | 1.25 mm |
| Capacity | 24positions | 40 positions | 48 positions |
| Application | Polishing assembled LC PC connectors | Polishing assembled LC PC connectors | Polishing assembled LC PC connectors |
| Material | Stainless Steel | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight (kg) | 1.5 kgs / 2.0 kgs | ||
| Suitable machines |
CLX-02E polishing machine Seikoh Giken SFP-550 polishing machine The similar machines |
||
FAQ
1.Are you a factory or a trader?
-we are factory.
2.What is your MOQ?
......MOQ 1 piece.
3.Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4.How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5.How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description
