IPC Structure Fiber Optic Fixture , Polishing Jig For Fiber Core Optical Machine
Product Details
| Warranty Time: | One Years | Suitable Machines: | CLX-02E Polishing Machine/Seikoh Giken SFP-550 Series |
|---|---|---|---|
| Use: | Polishing Assembled LC PC Fiber Core | Material: | Stainless Steel S136 |
| Net Weight: | 1 Kg | Color: | Color |
| Highlight |
IPC Structure Fiber Optic Fixture,Core Optical Machine Fiber Optic Fixture,IPC Structure Polishing Jig |
||
Product Description

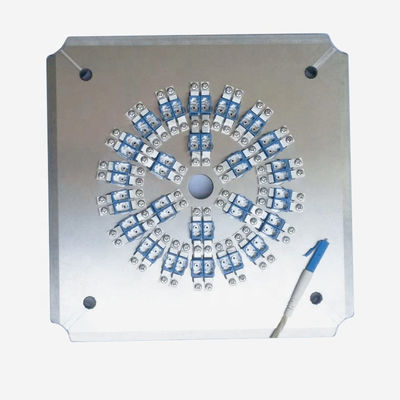

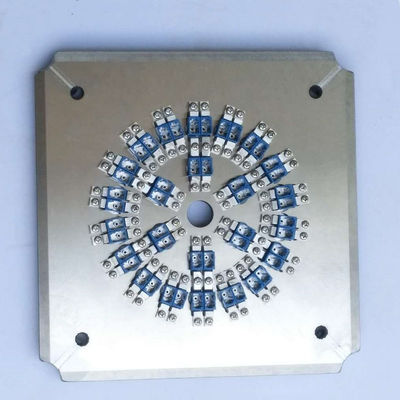

LC 48 DXSQ Duplex Fiber core optical Machine optic polishing jig fixture base plate lc fiber polishing fixture
Model:LC/PC-48DX
Place of Origin:ShenZhen,China
Product description
The polishing fixture is IPC Structure, Independent compression of each connector. Polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC), APPEX OFFET is within 24. This polishing fixture is high stability and good surface quality.
Feature
1. Used for four-corner pressure grinder
2. Designed for duplex LC/PC connectors
3. High efficiency grinding, 48 cores can be ground at one time
4. High-quality grinding ferrule end face.
Specifications
| Suitable Machine | CLX-02E or Seikoh Giken SFP-550 Series |
| Net Weight | 1.8kg |
| Processing and treatment | Heat-treated, hardened |
| Materials | stainless steel S136 |
Applications:
1. Polishing LC PC connector on patch cords
2. LC APC connector polishing on pigtail
3. Polishing LC PC connector on attenuator.
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description
