FC UPC Connector Fibre Optic Polishing Fixture Jig For Fiber Polishing Plate
Product Details
| Warranty Time: | 1 Years | Product Name: | Fiber Optic Connector Polish Holder |
|---|---|---|---|
| Dimensions: | 174*174*26mm | Net Weight: | 1.2 Kg |
| Suitable Machine: | CLX-02E And SFP-550 Series | Connector Type: | FC UPC Connector |
| Highlight |
FC UPC Connector Polishing Fixture,Fiber Polishing Plate Polishing Fixture,FC UPC Connector fiber jig |
||
Product Description

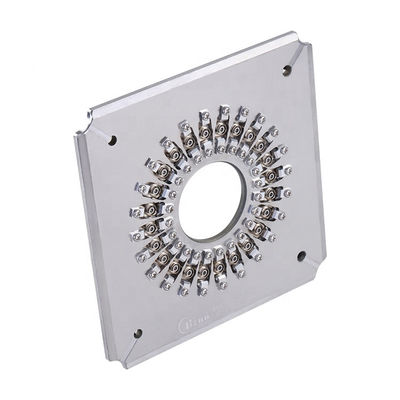

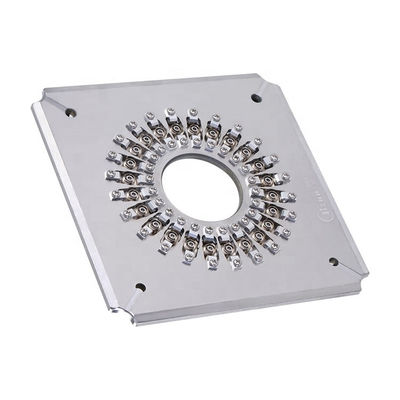

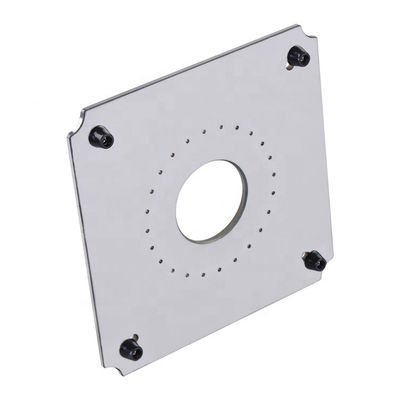

Fiber Optic Polishing Fixture For FC UPC Connector Optical Fiber Polishing Plate
Model:FC/PC-24
Place of Origin:ShenZhen,China
Product description
1. Designed for FC UPC connectors
2. Easy to change jigs, simple and flexible to operate
3. High efficiency, polishing Max 24 connectors in one cycle
4. Excellent connector end-face polishing quality
Feature
1. Applicate to FC/PC connector polishing
2. High efficiency, and polishing 24 ferrules in one cycle
3. Holders on jig replacable, effeciency for polishing cost saving
4. The geometry dimensions of polished ferrules comply with IEC standards
5. The first pass yield for end face quality reach 100%
Specifications
| Model | FC-PC-24 | FC-PC-32 | FC-PC-36 |
| Brand | CLX | CLX | CLX |
| Connector Type | FC PC | FC PC | FC PC |
| End-face | PC | PC | PC |
| Ferrule Diameter | 2.50 mm | 2.50 mm | 2.50 mm |
| Capacity | 24positions | 32 positions | 36 positions |
| Application | Polishing assembled FC PC connectors | Polishing assembled FC PC connectors | Polishing assembled FC PC connectors |
| Material | Stainless Steel | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight (kg) | 1.5 kgs / 2.0 kgs | ||
| Suitable machines |
CLX-02E polishing machine Seikoh Giken SFP-550 polishing machine The similar machines |
||
Applications:
1. Polishing FC conncetor for fiber optic patchcords manufacturing
2. FC UPC connector polishing for fiber optic pigtail
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
