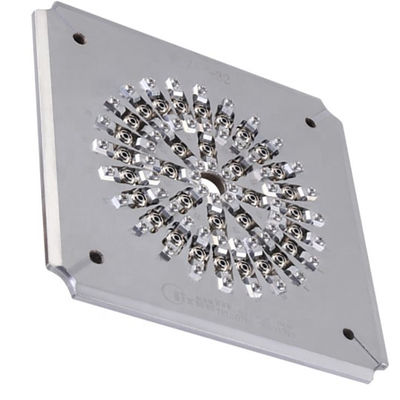

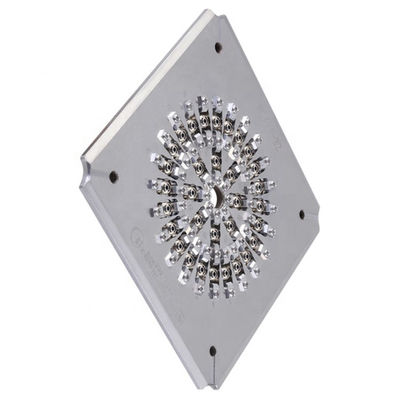

FC UPC Connector Fiber Optic Polishing Fixture 32 Positions For Pressure Grinder
Product Details
| Product Name: | Fiber Optic Connector Polish Holder | Warranty Time: | 1 Years |
|---|---|---|---|
| Suitable Machine: | CLX-02E And SFP-550 Series | Net Weight: | 1.2 Kg |
| Connector Type: | FC UPC Connector | Dimensions: | 174*174*26mm |
| Application: | Telecommunication | Certification: | RoHS, Ce, CE RoHS |
| Highlight |
32 Positions Polishing Fixture,32 Positions UPC Fiber Optic Fixture,FIBER Pressure Grinder FC Polishing Fixture |
||
Product Description

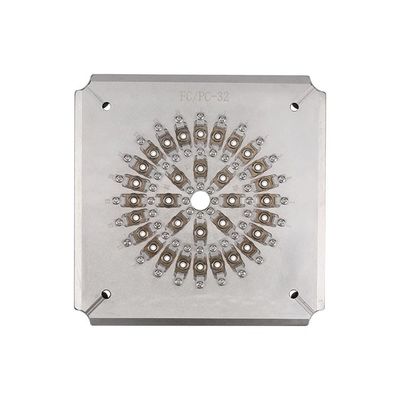

Fiber Optic 32 Connectors FC UPC Polishing Jig Fiber Polishing Fixture
Model:FC/PC-32
Place of Origin:ShenZhen,China
Product description
The IPC mechanism offers precise polishing pressure control for each ferrule being polished and provides a high quality polishing finish regardless of ferrule length. It enables the user to polish from 1 pc up to 36pcs at once without adjusting polishing pressure. Also there is no need to control ferrule length in case of re-polishing. For SC, LC ,FC,MU connectors, we use durable snap-in mechanism, which achieves reduced cycle time by easier and faster installation of connectors.
Feature
1. Applicate to FC UPC connector polishing
2. High efficiency, and polishing 32 connectors in one cycle
3. Holders on jig replacable, effeciency for polishing cost saving
4. The geometry dimensions of polished ferrules comply with IEC standards
5. The first pass yield for end face quality reach 100%
Specifications
| Model | FC-PC-24 | FC-PC-32 | FC-PC-36 |
| Brand | CLX | CLX | CLX |
| Connector Type | FC PC | FC PC | FC PC |
| End-face | PC | PC | PC |
| Ferrule Diameter | 2.50 mm | 2.50 mm | 2.50 mm |
| Capacity | 24positions | 32 positions | 36 positions |
| Application | Polishing assembled FC PC connectors | Polishing assembled FC PC connectors | Polishing assembled FC PC connectors |
| Material | Stainless Steel | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight (kg) | 1.5 kgs / 2.0 kgs | ||
| Suitable machines |
CLX-02E polishing machine Seikoh Giken SFP-550 polishing machine The similar machines |
||
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
