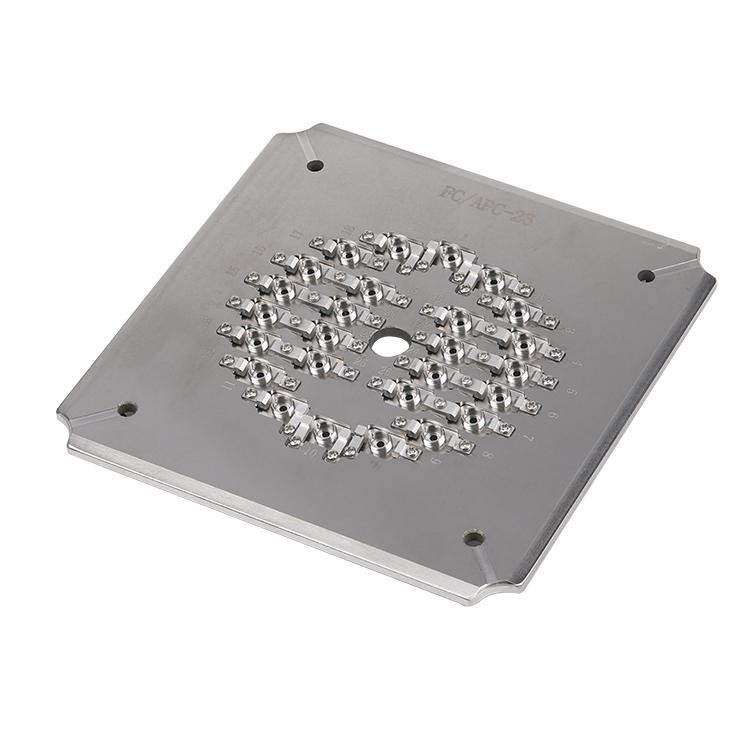

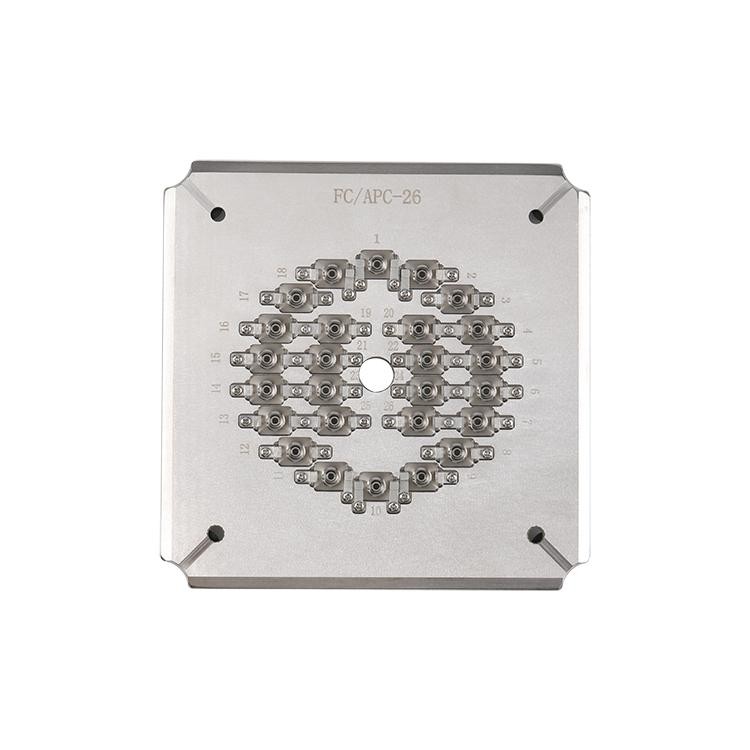

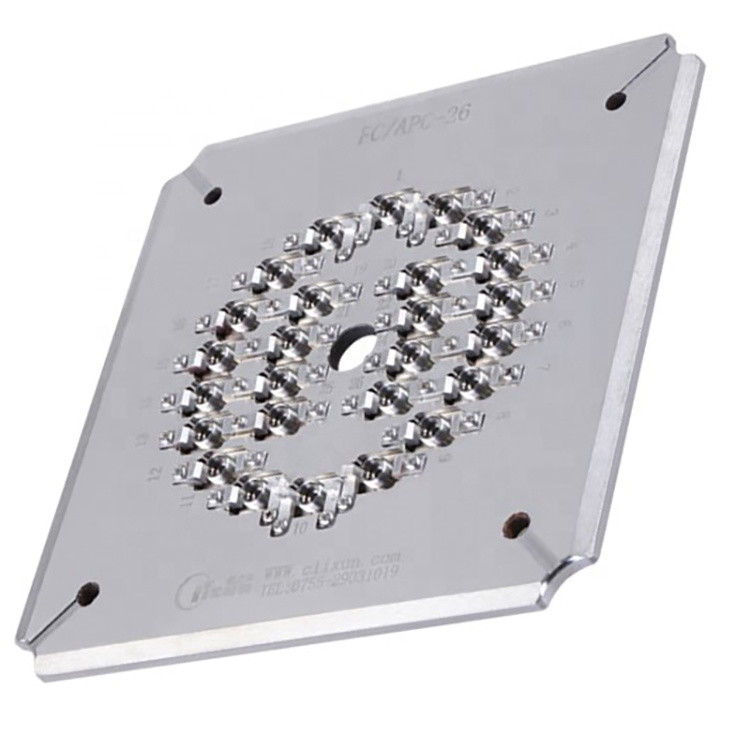

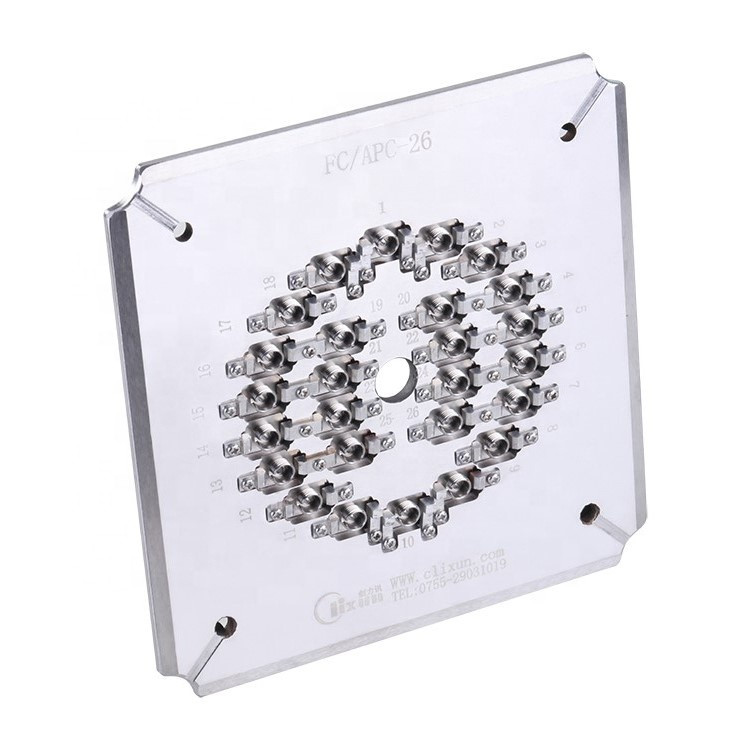

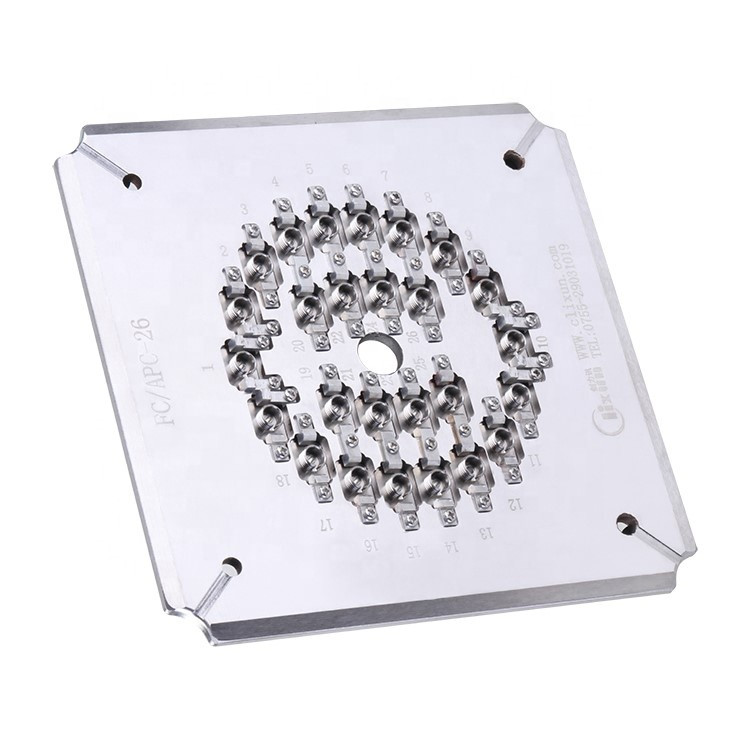

Foursquare Fibre Optic Polishing Fixture Kit 26 Positions For FC Connector
Product Details
| Product Name: | Fiber Optic Connector Polish Holder | Connector Type: | FC UPC Connector |
|---|---|---|---|
| Warranty Time: | 1 Years | Suitable Machine: | CLX-02E And SFP-550 Series |
| Net Weight: | 1.2 Kg | Dimensions: | 174*174*26mm |
| Highlight |
fibre optic Polishing Fixture,26 Positions Polishing Fixture,fiber polishing kit fixture 26 Positions |
||
Product Description
26 Positions FC Connector Type Foursquare Fiber Optic Polishing Fixture
Model:FC/APC-26
Place of Origin:ShenZhen,China
Product description
1. Adopt four corner pressurized type to polish with high production effciency and low repair rate.
2. Can be installed 26 FC Connectors .
3. Adopts independent pressurized way, eliminates ferrules, shows the different length effects on polishing.
4. We can design the jig according to the customer request.
Feature
1. Specialized for FC-26 connector polishing.
2. High precision manufactering technology.
3. Easy to operation, and Fast to insert connects and pull out connectors.
4. Polishing with high yield rate and low reworking rate.
Specifications
| Model | FC-APC-26 | FC-PC-36 | FC-PC-36 |
| Brand | CLX | CLX | CLX |
| Connector Type | FC APC | FC APC | FC PC |
| End-face | APC | APC | PC |
| Ferrule Diameter | 2.50 mm | 2.50 mm | 2.50 mm |
| Capacity | 26positions | 36 positions | 36 positions |
| Application | Polishing assembled FC APC connectors | Polishing assembled FC APC connectors | Polishing assembled FC PC connectors |
| Material | Stainless Steel | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight (kg) | 1.5 kgs / 2.0 kgs | ||
| Suitable machines |
CLX-02E polishing machine Seikoh Giken SFP-550 polishing machine The similar machines |
||
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
