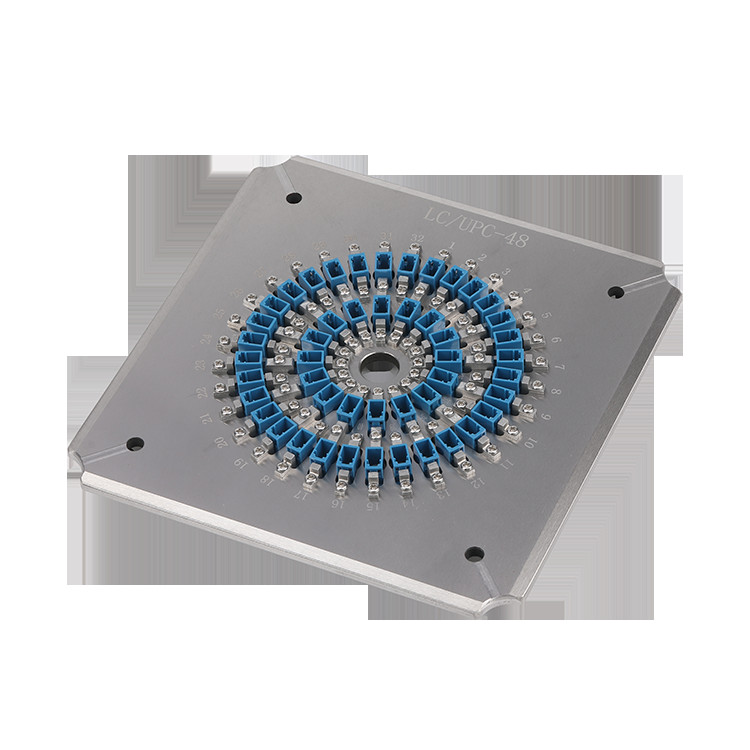

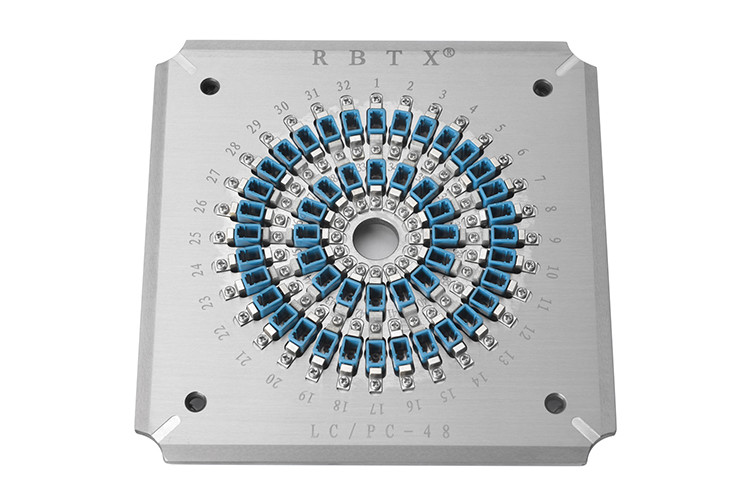

Fiber Optic 48 Connectors LC PC Polishing Fixture s136 Polish Jig

1 Piece
Fiber Optic 48 Connectors LC PC Polishing Fixture s136 Polish Jig
Features Gallery Product Description Request A Quote
Name: Fiber LC PC Connector Polishing Jig
Net Weight: 1.2kg
Max Capactiy: 48 Connectors A Time
Application: LC/PC Connector Polishing
Machine Size: 174*174*26mm
Materials: Harden Stainless Steel S136
Insertion Loss: ≤0.20dB(SM) ≤0.30dB(MM)
Return Loss: ≥55dB(PC 、UPC)
High Light:

LC PC Polishing Fixture


S136 Polishing Fixture


LC PC Polish Jig

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Certification: RoHS
Model Number: LC/PC-48
Payment & Shipping Terms
Packaging Details: Carton Packing:215*215*80mm
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 Piece/week
Product Description

Fiber Optic 48 Connectors LC PC Polishing Fixture S136 Polish Jig


Fiber Optic 48 Connectors LC PC Polishing Jig Polishing Fixture




Place of Origin:ShenZhen,China


LC PC Fiber Patch Cord Polishing Fixture Description

This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.

Fiber Optic LC PC Grinding Jigs Features

1. Designed for LC/PC connectors.
2. Easy to change jigs, simple and flexible to operate.
3. High efficiency, polishing Max 48 connectors in one cycle.
4. Excellent connector end-face polishing quality.
5. Holders on jig replacable, effeciency for polishing cost saving.
6. The geometry dimensions of polished ferrules comply with IEC standards.
7. The first pass yield for end face quality reach 100%.

8. The plugs of fiber optical polishing fixture can be interchanged, extend fiber polishing fixture's life.
9. All kinds of fiber optical polishing fixtures can be customized according by customer requirment.


LC PC Polishing Jigs Specifications

Model Number
Net Weight
LC/PC Fiber Optic Connector Polished
No. of Fiber
Hardened stainless steel2316
Insertion Loss
Return Loss
≥55dB (UPC,PC) ≥60dB (APC)


Fiber Optic 48 Connectors LC PC Polishing Fixture s136 Polish Jig 0

Fiber Optic 48 Connectors LC PC Polishing Fixture s136 Polish Jig 1

Fiber Optic 48 Connectors LC PC Polishing Fixture s136 Polish Jig 2

About shipping


We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity



1. Are you a factory or a trader?

......we are factory.

2. What is your MOQ?

......MOQ 1 piece.

3. Do you provide sample services?

......Yes, we will provide samples.

4. How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5. How do we pay?

......Book in advance or multiple payment methods such as T / T and T / L.

6. How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7. Do you provide customized services?

......Yes, we provide customized services, According to customer requirements and description.
