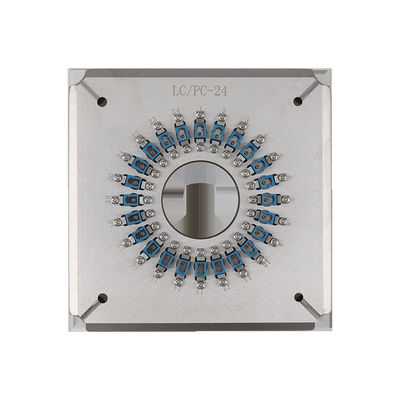

LC PC Housing Fiber Patch Cord Polishing Fixture 24 Connectors A Time
Product Details
| Product Name: | Fiber Optic Patch Cord Polishing Holder | Net Weight: | 1.2kg |
|---|---|---|---|
| Max Capactiy: | 24 Connectors A Time | Application: | Fiber Optic LC/PC Connector Polishing |
| Dimensions: | 174*174*26mm | Materials: | Harden Stainless Steel S136 |
| Insertion Loss: | ≤0.20dB（SM） ≤0.30dB(MM) | Return Loss: | ≥55dB（PC 、UPC） |
| Highlight |
LC PC Polishing Fixture,24 Connectors Polishing Fixture,LC PC Polishing Holder |
||
Product Description
LC PC Housing Fiber Patch Cord Polishing Fixture 24 Connectors A Time
24 Connector LC / PC Housing Fiber Optic Polishing Jig
Model:LC/PC-24
Place of Origin:ShenZhen,China
fiber optic polishing machine jig Description
This Fiber polishing fixture using high quality steel with heated treat, the hardened steel providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC,and E2000, etc, and also according to the customer request. The fiber polishing fixture pass rate with Interference> = 98% .This fiber polishing fixture is high stability and good surface quality.
Fiber Optic LC UPC Polishing fixtures Features
1. Designed for LC/PC(UPC) connectors.
2. Easy to change jigs, simple and flexible to operate.
3. High efficiency, polishing Max 24 connectors in one cycle.The first pass yield for end face quality reach 98%～100%
4. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate
with Interference> = 98% (100% Typical, according to IEC),
5. APC return loss ≥60dB , UPC return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
6. The accessories on the fixture can be replaced, Greatly extend the service life.
7. Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
LC PC Connector Polishing Jig Specifications
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples.
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
