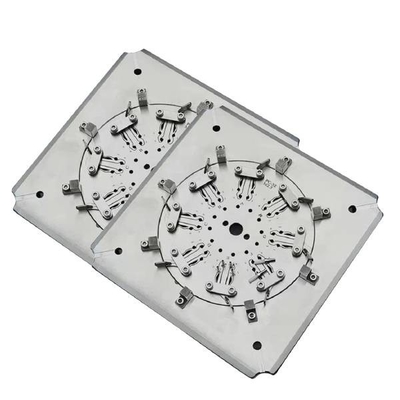

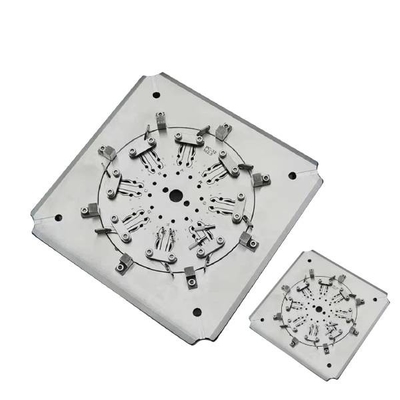

2.5mm 1.25mm Fiber Optic Patch Cord Ferrule Polishing Jig 32 Position
Product Details
| Name: | SC Fiber Optic Patch Cord Ferrule Polishing Fixture | Keywords: | Polishing Fixture |
|---|---|---|---|
| Net Weight: | 1.3kg | No. Of Fiber: | 32 |
| Application: | Fiber Optic Patch Cord Ferrule Polishing | Size: | 174*174*26mm |
| Insertion Loss: | ≤0.20dB（SM） ≤0.30dB(MM) | Return Loss: | ≥55dB（PC 、UPC） ≥60dB(APC) |
| Highlight |
Ferrule Fiber Polishing Jig,RoHS Fiber Polishing Jig,Ferrule Polish Holder |
||
Product Description
2.5mm 1.25mm Fiber Optic Patch Cord Ferrule Polishing Jig 32 Position
Model:PC/APC
Place of Origin:ShenZhen,China
Polish Fixture 32 Position 2.5mm 1.25mm Fiber Optic Patch Cord Ferrule Polishing
Fiber Optic Ferrule Polishine Jig Description
1. Special designed for polishing 2.5mm ferrules of SC/FC/ST/LC Connectors (Size can also be customized)
2. 32 connectors can be placed for polishing at the same time.
3. Parts are changeable on each polish jig, it is cost effective.
Fiber Optic Ferrule Polishine Jig Features
1. Designed for dia 1.25mm~ 2.5mm(PC or APC) Ferrule
2. Easy to change jigs, simple and flexible to operate
3. High efficiency, polishing Max 32 Ferrules in one cycle
Custom Made Fiber Optic Ferrule Polishing Jig
|
Ferrule Type |
Dia 1.25mm~2.5mm Ferrule (customizable)
|
|||
|
Size
|
174mm*174mm*26mm
|
|||
|
Net Weight
|
1.3kg
|
|||
|
Application
|
Fiber Optic Ferrule Polishing
|
|||
|
Use
|
FTTH
|
|||
|
No. of Fiber
|
32
|
|||
|
Material
|
Hardened stainless steel2316
|
|||
|
Insertion Loss
|
≤0.20dB(SM) ≤0.30dB(MM)
|
|||
|
Return Loss
|
≥55dB (UPC,PC) ≥60dB (APC)
|
|||
|
Warranty Time
|
2 years |
|||
Company Profile
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010. Is an optical communications equipment company integrating research and development, production, after-sales service and technical services. We not only sell high-quality products and provide good after-sales service,but also provide free technical support to our customers. For the technical problems encountered in the production of fiber optic patch cords, there are good solutions.
About shipping:We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
1.Are you a factory or a trader?
......MOQ 1 piece.
3.Do you provide sample services?
......Yes, we will provide samples.
4.How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity .
5.How do we pay?
......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
