SC APC Round Fiber Optic Polishing Fixture stainless steel S136
Product Details
| Product Name: | Fiber Optic SC Round Polishing Jig | Net Weight: | 0.5kg |
|---|---|---|---|
| Max Capactiy: | 12 Connectors A Time | Application: | Fiber Optic SC APC Connectors Polishing |
| Size: | 110mm*5mm | Materials: | Harden Stainless Steel S136 |
| Insertion Loss: | ≤0.20dB（SM） | Return Loss: | ≥60dB(APC) |
| Highlight |
Fiber Optic Polishing Fixture,APC Polishing Fixture,APC Polish Fixtures |
||
Product Description

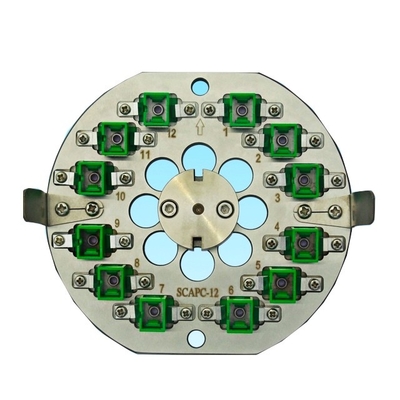

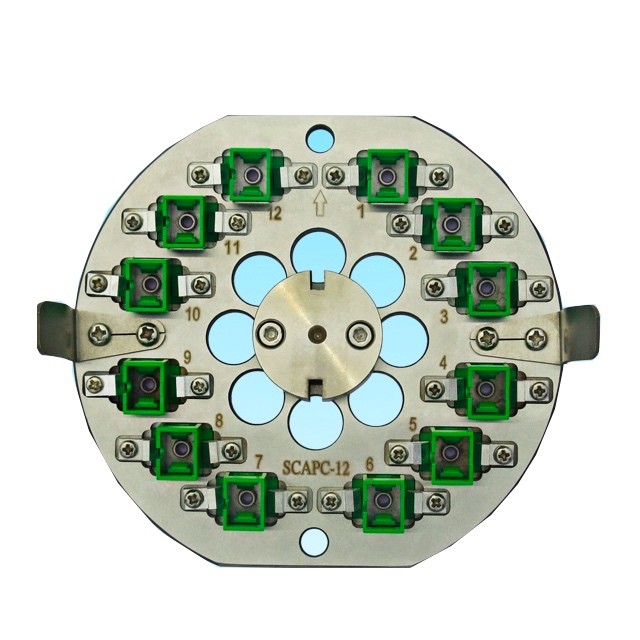

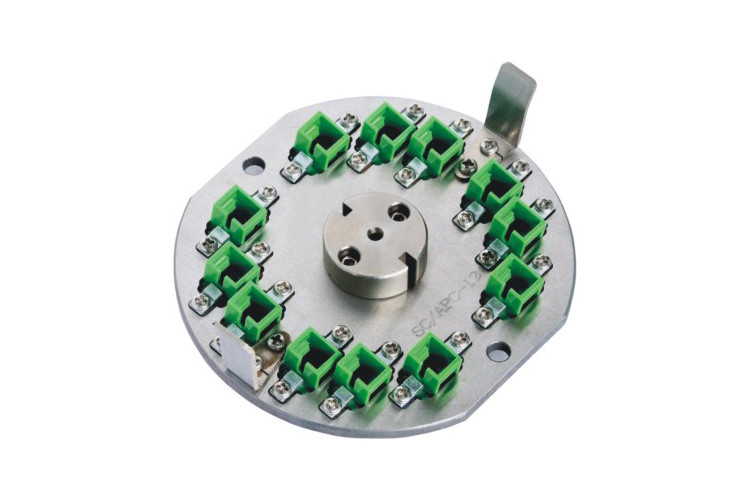

SC APC Round Fiber Optic Polishing Fixture Stainless Steel S136
Fiber Optic Center Pressure Polishing Machine Jig Polisher Fixture SC APC Polishing Fixture
Model:SC/APC-12
Place of Origin:ShenZhen,China
Fiber Optic Center Pressure Polisher fixture
Application
1. Polishing 12 port SC/APC connector a time
2. Designed for high volume applications
3. Used for Center Pressure Polishing Machine
4. Good quality and high production efficiency
5. Can be customized according by customer requirement
6. Quick change tooling, Super centering accuracy
7. Excellent endface geometry, Utilizes I.P.C. holder technology
8. Eliminate ferrules show the different length effects on polishing
9. Plugs of polishing jig can be interchanged to extend polishing fixture’s life
Polishing jig for central pressure polishing machine
| P/N | Description |
| CP-J-LC/P-16 | LC /PC Connector housing polishing jig for WT-CP-C 16 position |
| CP-J-SC/P-12 | SC/PC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-FC/P-12 | FC/PC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-ST/P-12 | ST/PC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-LC/A-12 | LC/APC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-SC/A-12 | SC/APC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-FC/A-12 | FC/APC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-MU/P-12 | MU Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-E2/P-12 | E2000/PC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-E2/A-12 | E2000/APC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-MJ/P-12 | MTRJ ferrule polishing jig for WT-CP-C 12 position |
| CP-J-MT/P-12 | MPO/MTP ferrule polishing jig for WT-CP-C 12 position |
| CP-J-125/P-12 | 1.25mm PC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-125/A-12 | 1.25mm APC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-250/P-12 | 2.5mm PC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-250/A-12 | 2.5mm APC ferrule polishing jig for WT-CP-C 12 position |
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples.
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
