Fiber Optic ST PC Polish Jig Fixture For Center Polish Machine
Product Details
| Product Name: | Fiber Optic ST Round Polishing Fixture | Net Weight: | 0.5kg |
|---|---|---|---|
| Max Capactiy: | 12 Connectors A Time | Application: | Fiber Optic ST PC Connectors Polishing |
| Size: | 110mm*5mm | Materials: | Harden Stainless Steel S136 |
| Insertion Loss: | ≤0.20dB（SM）≤0.30dB（MM） | Return Loss: | ≥55dB(PC) |
| Highlight |
ST PC Polish Jig,12 connectors Polish Jig,RoHS Polish Fixture |
||
Product Description

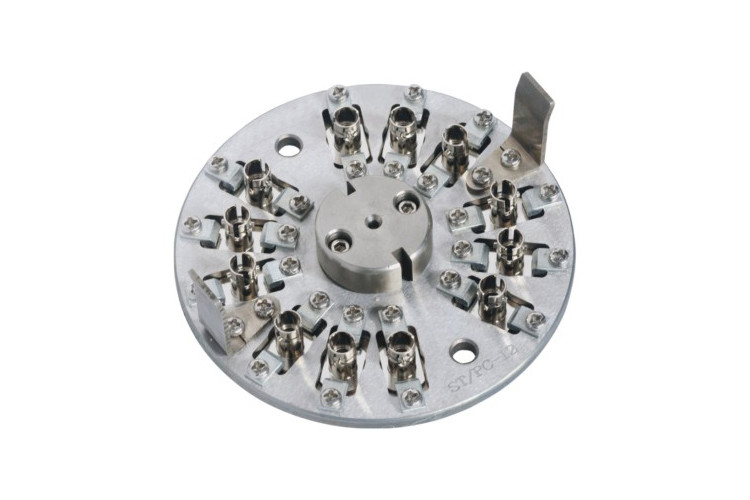

Fiber Optic ST PC Polish Jig Fixture For Center Polish Machine
Fiber Optic ST PC Polish jig/Fixture for Center polish machine
Model:ST/PC-12
Place of Origin:ShenZhen,China
Fiber Optic ST PC Cable Polishing Holder Features:
• Polishing 12 port ST/PC connector a time
• Designed for high volume applications
• Good quality and high production efficiency
• Can be customized according by customer requirement
• Quick change tooling, Super centering accuracy
Fiber optic ST PC Connector Shell Polishing Fixture
Application:
• Used for Center Pressure Polishing Machine
• ST/PC connector polishing for fiber optic
Optical Fiber ST Polishing Jig
Product Description:
1. For polishing ST/PCconnectors.
2. This fiber optical polishing fixture adopt independent pressurized way, eliminate ferrules show the different length effects on polishing
3. Each fiber optical polishing fixture can hold 12 connectors. It has high production efficiency.
4. The plugs of fiber optical polishing fixture can be interchanged, extend fiber polishing fixture's life.
5. The fiber optical polishing fixture has good quality, high efficiency,
6. All kinds of fiber optical polishing fixtures can be customized according by customer requirment.

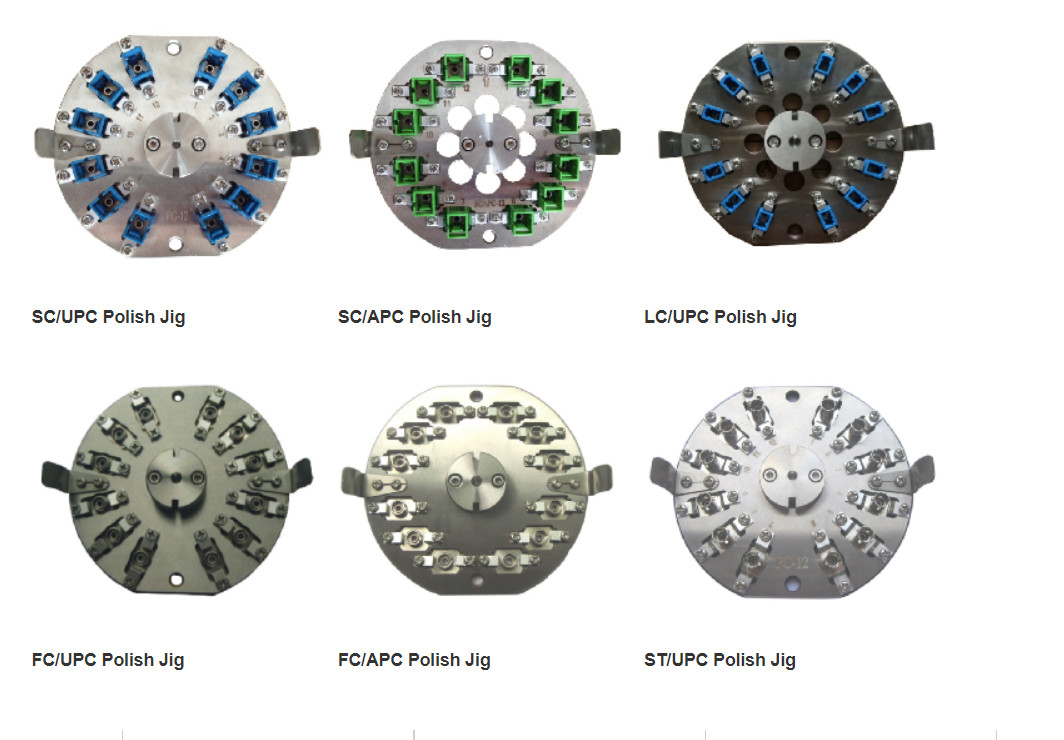

optical fiber ST PC connector polishing plate
| P/N | Description |
| CP-J-LC/P-16 | LC /PC Connector housing polishing jig for WT-CP-C 16 position |
| CP-J-SC/P-12 | SC/PC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-FC/P-12 | FC/PC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-ST/P-12 | ST/PC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-LC/A-12 | LC/APC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-SC/A-12 | SC/APC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-FC/A-12 | FC/APC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-MU/P-12 | MU Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-E2/P-12 | E2000/PC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-E2/A-12 | E2000/APC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-MJ/P-12 | MTRJ ferrule polishing jig for WT-CP-C 12 position |
| CP-J-MT/P-12 | MPO/MTP ferrule polishing jig for WT-CP-C 12 position |
| CP-J-125/P-12 | 1.25mm PC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-125/A-12 | 1.25mm APC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-250/P-12 | 2.5mm PC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-250/A-12 | 2.5mm APC ferrule polishing jig for WT-CP-C 12 position |
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples.
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
