SC APC Polishing Fixture 12 Connectors Fiber Optic Polishing Kit
Product Details
| Product Name: | Fiber Optic SC APC Polishing Jig | Net Weight: | 0.5kg |
|---|---|---|---|
| Max Capactiy: | 12 Connectors A Time | Application: | Fiber Optic SC Connectors Polishing |
| Fixture Size: | 110mm*5mm | Materials: | Harden Stainless Steel S136 |
| Insertion Loss: | ≤0.20dB（SM） | Return Loss: | ≥60dB(APC) |
| Highlight |
SC APC Polishing Fixture,12 Connectors Polishing Fixture,SC APC Fiber Optic Polishing Kit |
||
Product Description

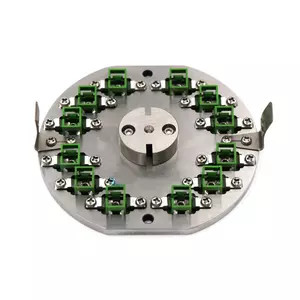

SC / APC Fiber optic Polishing Jig Fiber optic connector Polishing Fixture
Model:SC/APC-12
Place of Origin:ShenZhen,China
SC APC Polishing Holder
Optical Fiber SC APC Polishing Jig Products description:
This Fiber polishing fixture for SC/APC 12 Connectors are made of stainless steel,Adopt central pressurized
way to polish, used for mechanically polishing the ends of fiber-optic jumpers, cables, patchcords or assemblies.
Meanwhile, the adapter of connector jig can be interchanged, prolong the service life of grinding plate.
Fiber optic SC round polishing jig Features:
1.The fiber optical polishing fixture is used in central polishing machine, to plishing SC/APC Connector.
2.This fiber optical polishing fixture adopt independent pressurized way, eliminate ferrules show the different length effects on polishing
3.Each fiber optical polishing fixture can hold 12 connectors. It has high production efficiency.
4.The plugs of fiber optical polishing fixture can be interchanged, extend fiber polishing fixture's life.
5.The fiber optical polishing fixture has good quality, high efficiency
6.All kinds of fiber optical polishing fixtures can be customized according by customer requirment.
SC Connector Type Polishing Fixture Applications:
1.Polishing ferrule for patchcords, such as SC/APC
2.SC/APC ferrule Manufacturer polishes geometry dimensions;
3.SC/APC attenuator ferrule polishing;
Polishing jig for central pressure polishing machine
| P/N | Description |
| CP-J-LC/P-16 | LC /PC Connector housing polishing jig for WT-CP-C 16 position |
| CP-J-SC/P-12 | SC/PC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-FC/P-12 | FC/PC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-ST/P-12 | ST/PC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-LC/A-12 | LC/APC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-SC/A-12 | SC/APC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-FC/A-12 | FC/APC Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-MU/P-12 | MU Connector housing polishing jig for WT-CP-C 12 position |
| CP-J-E2/P-12 | E2000/PC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-E2/A-12 | E2000/APC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-MJ/P-12 | MTRJ ferrule polishing jig for WT-CP-C 12 position |
| CP-J-MT/P-12 | MPO/MTP ferrule polishing jig for WT-CP-C 12 position |
| CP-J-125/P-12 | 1.25mm PC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-125/A-12 | 1.25mm APC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-250/P-12 | 2.5mm PC ferrule polishing jig for WT-CP-C 12 position |
| CP-J-250/A-12 | 2.5mm APC ferrule polishing jig for WT-CP-C 12 position |
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples.
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
......Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description.
