ST Connector Fiber Polishing Fixture Fiber Optic Patch Cord Polishing Holder
Product Details
| Product Name: | ST Connector Polish Machine Jig | Use:: | ST UPC Patch Cord Production |
|---|---|---|---|
| Size: | 174*174*26mm | Net Weight: | 1.2kg |
| Suitable Type: | ST UPC Connector | Materials: | Stainless Steel S136 |
| Highlight |
ST Connector Polish Machine Jig,S136 Fiber Polishing Fixture,Fiber Optic Patch Cord Polishing Holder |
||
Product Description

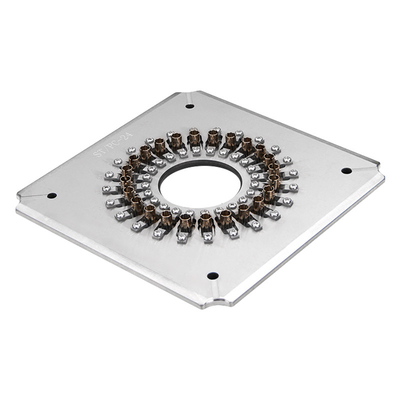

ST Connector Polish Machine Jig Fiber Polishing Fixture Fiber Optic Patch Cord Polishing Holder
Fiber Optic Patch Cord Polishing Holder Description:
The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC),
This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
optic fiber patch cord polisher jig Features:
1. Designed for polishing manner with planet tray
2. Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much higher
3. Dual APC &UPC polishing and Accommodating most styles of connectors
4. High efficiency to deal with all kinds of connectors. The maximum polishing quantity for MU and LC connectors is 24 pcs; And maximum polishing quantity for SC, FC and ST connectors is 24 pcs
5. The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability
6. Quick to change jigs, Easy and flexible to operate
7. APC return loss as low as -60 dB, UPC return loss as low as -55 dB, Insertion loss 0.2 dB typical
8. Super centering accuracy
9. Excellent connector end-face polishing quality
|
Name |
ST UPC Fiber Optic Polishing Plate | |||
|
Material |
Stainless Steel S136 |
|||
|
Size |
174mm*174mm*26mm |
|||
|
Net weight |
1.2kg |
|||
|
application |
Fixed and polishing ST/UPC fiber optic connector |
|||
| Suitable Machine | CLX-02E and SEIKOH GIKEN SFP-550 Serials | |||
|
Model |
ST/UPC |
|||
|
Insertion Loss |
≤0.20dB(typical) |
|||
|
Return Loss |
≥55dB(APC) |
|||
|
3D pass rate |
100% |
|||
|
3.Max capactiy |
24 connectors a time |
|||
|
MOQ |
1pcs |
|||
Optical Fiber Polish Jig Applications:
1.Polishing ferrule for patchcords, such as SC/APC
2.SC/APC ferrule Manufacturer polishes geometry dimensions;
3.SC/APC attenuator ferrule polishing;
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
2.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
3.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
4.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
