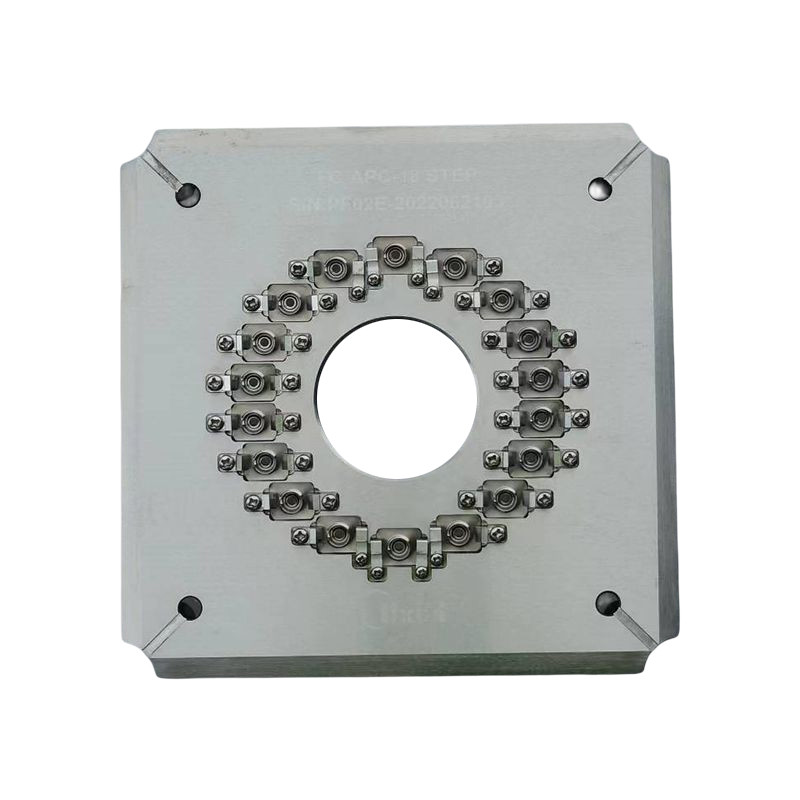

General Fiber Optic 18 Conectores FC APC Polisher Jig Polishing Fixtures
Product Details
| Product Name: | Optical Fiber FC APC Polishing Fixture | Use:: | FC APC Patch Cord Production |
|---|---|---|---|
| Size: | 174*174*26mm | Net Weight: | 1.2kg |
| Suitable Type: | FC APC Connector | Materials: | Stainless Steel |
| Highlight |
18 Connectors Polishing Fixtures,FC APC Polisher Jig,RoHS FC APC Polisher Jig |
||
Product Description
General Fiber Optic 18 Conectores FC APC Polisher Jig Polishing Fixtures
Fiber Optic Ferrule Polishing Jig/fixture Product Description:
The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC), This fiber polishing fixture is high stability and good surface quality.
fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 provide long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, and also according to the customer request.
Fiber Optic Connector Polishing Fixture Features:
1. Designed for FC APC connectors
2. Easy to change jigs, simple and flexible to operate
3. High efficiency
4. Excellent connector end-face polishing quality
5. Each fiber optical polishing fixture can hold 18 connectors. It has high production efficiency.
6. The plugs of fiber optical polishing fixture can be interchanged, extend fiber polishing fixture's life.
7. The fiber optical polishing fixture has good quality, high efficiency
8. All kinds of fiber optical polishing fixtures can be customized according by customer requirment.
Polishing Jig:
|
Name |
Fiber Optic Polishing Fixture FC APC |
|||
|
Material |
Stainless Steel |
|||
|
Size |
174mm*174mm*26mm |
|||
|
Net weight |
1.2kg |
|||
|
application |
Fixed and polishing FC/APC fiber optic connector |
|||
| Suitable Machine | CLX-02E and SEIKOH GIKEN SFP-550 Serials | |||
|
Model |
FC/APC |
|||
|
Insertion Loss |
≤0.20dB(typical) |
|||
|
Return Loss |
≥60dB(APC) |
|||
|
3D pass rate |
100% |
|||
|
3.Max capactiy |
18 connectors a time |
|||
|
MOQ |
1pcs |
|||
Optical Fiber Polish Jig Applications:
1.Polishing ferrule for patchcords, such as FC/APC
2.FC/APC ferrule Manufacturer polishes geometry dimensions;
3.FC/APC attenuator ferrule polishing;
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
2.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
3.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
4.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
