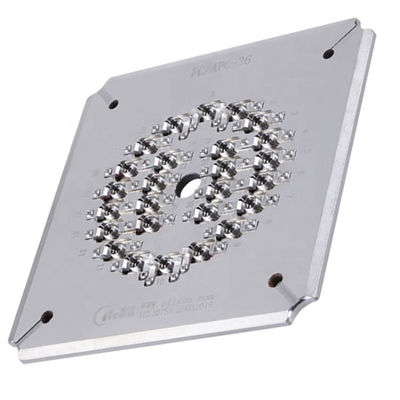

FC APC 26 Port Polish Fixtures S2316 Jig For Fiber Optical Patch Cord

1 Piece
MOQ
Negotiable
Price
FC APC 26 Port Polish Fixtures S2316 Jig For Fiber Optical Patch Cord
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fiber Optic FC APC Polishing Fixture
Application: FC APC Patch Cord Polishing
Size: 174*174*26mm
Net Weight: 1.2kg
Material: Hardened Stainless Steel S2316
3D Passing Rate: >100%
Return Loss: ≥55dB (PC) ≥60dB (APC)
Use: FTTH, FTTH
Warranty Time: 2 Years
High Light:

FC APC Polish Fixtures

,

S2316 Polishing Jig

,

S2316 Polish Fixtures

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: CLX
Certification: RoHS
Model Number: FC/APC-26
Payment & Shipping Terms
Packaging Details: Cushion Pads and carton case
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 200 Piece/week
Product Description

FC APC 26 Port Polish Fixtures S2316 Jig For Fiber Optical Patch Cord



FC APC 26 Port Fiber Optic Fixture Polishing Jig For Fiber Optical Patch Cord



Fiber Polishing Fixture FC APC Product Description:

1.Designed for FC/APC connectors.

2.Easy to change jigs, simple and flexible to operate.

3.High efficiency, polishing Max 26 connectors in one cycle.The first pass yield for end face quality reach 98%~100% 4.The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC),

5.APC return loss ≥60dB , UPC return loss ≥55dB , Insertion loss ≤0.20dB ( typical)

6.The accessories on the fixture can be replaced, Greatly extend the service life.




Features:

●Designed specifically for grinding and polishing FC APC connectors.

●Fiber optic connector end face polishing quality is good, 3D pass rate is high, repeated repair rate is low.

●Quick change fixture, easy and flexible operation.

●The product has been processed by special technology for many times. It is wear-resistant, rust-proof and not easy to be deformed. ●FC APC fixture adapter accessories can be replaced, greatly extending fixture life.


Optical Fiber Polishing Jig Polishing Fixture

Model
FC-APC-26
FC-APC-36
FC-PC-36



Brand
CLX
CLX
CLX
Connector Type
FC APC
FC APC
FC PC
End-face
APC
APC
PC
Ferrule Diameter
2.5mm
2.5mm
2.5mm
Capacity
26positions
36positions
36positions
Insertion Loss
≤0.20dB
≤0.20dB
≤0.20dB
Return Loss
≥60dB (APC)
≥60dB (APC)
≥55dB (PC)
Application
Polishing assembled FC APC connectors
Polishing assembled FC APC connectors
Polishing assembled FC PC connectors
Material
Stainless Steel S136
Dimension (L*W*H)
174*174*26 mm
Net Weight / Gross Weight (kg)
1.5 kgs / 2.0 kgs
Suitable machines
CLX-02E polishing machine
Seikoh Giken SFP-550 polishing machine
The similar machines

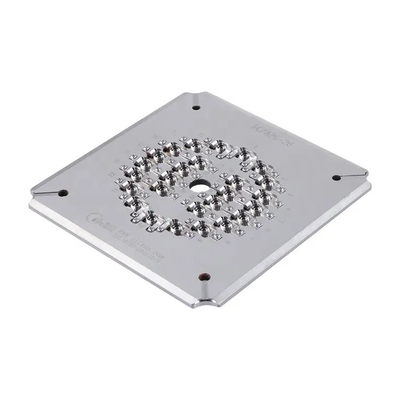

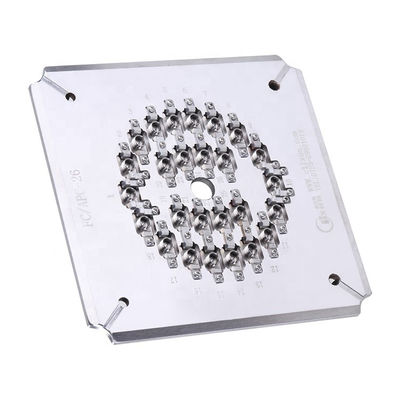

FC APC 26 Port Polish Fixtures S2316 Jig For Fiber Optical Patch Cord 0FC APC 26 Port Polish Fixtures S2316 Jig For Fiber Optical Patch Cord 1

Optical Fiber Polish Jig​ Applications:

1.Polishing FC APC conncetor for fiber optic patchcords manufacturing

2.FC/APC connector polishing for fiber optic pigtail








FC APC 26 Port Polish Fixtures S2316 Jig For Fiber Optical Patch Cord 2




Our Company

FC APC 26 Port Polish Fixtures S2316 Jig For Fiber Optical Patch Cord 3


FC APC 26 Port Polish Fixtures S2316 Jig For Fiber Optical Patch Cord 4

About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity


FAQ

1.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn’t be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.

2.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.

3.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;

4.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
