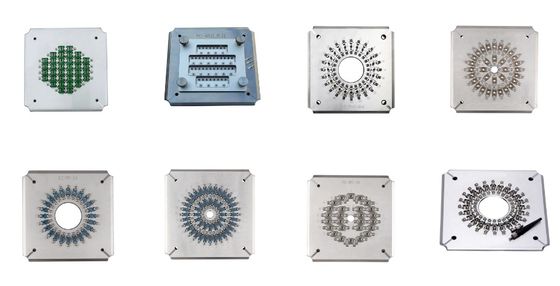

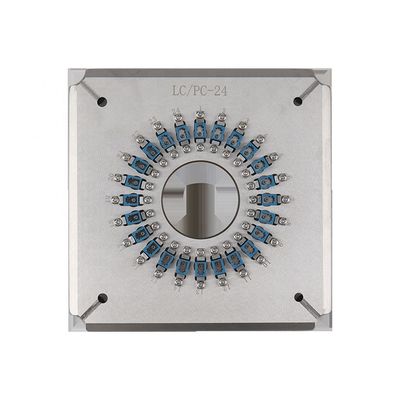

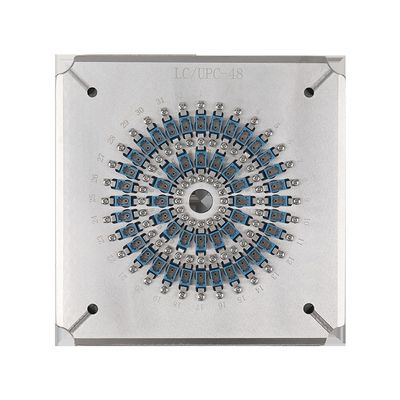

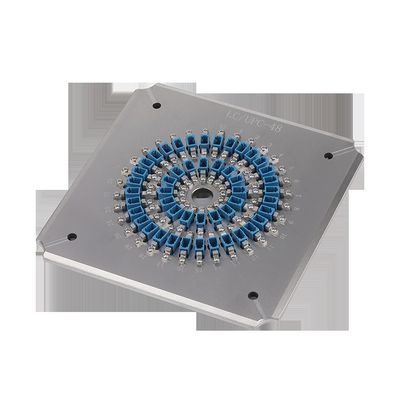

Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB
Product Details
| Connector Type: | LC/UPC | Material: | Stainless Steel S136 |
|---|---|---|---|
| Dimensions: | 174*174*26mm | Max Capacity: | 40 Positions For LC PC Connectors |
| Net Weight: | 1.3kgs | Gross Weight: | 2kgs |
| Ferrule Diameter: | 1.25mm | Insertion Loss: | ≤0.20dB |
| Return Loss: | ≥55dB (UPC) | End-face Type: | UPC |
| Radius Of Curvature: | 5-25mm | Apex Offset: | 0-50μm |
| Fiber Height: | -100~+50μm | Angle: | 8.00+/-0.50° (APC) |
| First Pass Yield: | 98%～100% | ||
| Highlight |
First Pass Yield 98-100% Polishing Fixture,UPC Return Loss ≥55dB Fiber Optic Polishing Jig,Insertion Loss ≤0.20dB Optical Polishing Fixture |
||
