LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100%

1
MOQ
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100%
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Production Machine
Model: LC/APC
Net Weight: 1.2kg
Material: High-Strength Stainless Steel S136
Dimensions: 174mm*174mm*26mm
No. Of Fiber: 24/36/48
Insertion Loss: ≤0.20dB
Return Loss: ≥55dB (PC) ≥60dB (APC)
Ferrule Diameter: 1.25mm
Capacity: 24/36/48 Positions
End-face: APC
Radius Of Curvature: 5-25mm (UPC), 5-12mm (APC)
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Angle: 8.00+/-0.50° (APC)
Highlight:

Insertion Loss ≤0.20dB Polishing Fixture

,

Return Loss ≥60dB Fiber Polishing Jig

,

First Pass Yield 98%–100% Optical Fiber Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Model Number: LC/APC
Payment & Shipping Terms
Product Description

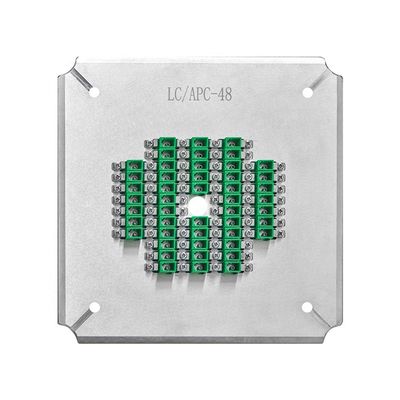

LC APC Optical Fiber 24/36/48 Ports Polishing Fixture
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 0 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 1
This fiber polishing fixture/jig offers high stability and excellent surface quality. Constructed from high-quality heat-treated steel (hardened steel S2316) for long service life. Available in configurations for SC, FC, ST, and LC connectors, with custom designs available upon request.
Key Features:

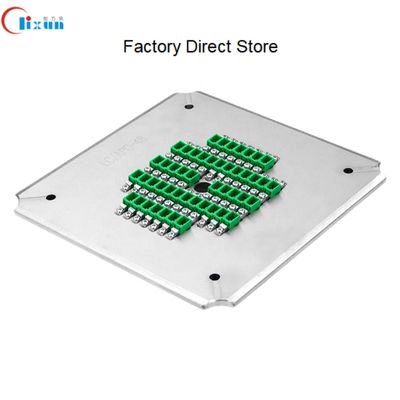

  • Designed specifically for LC/APC connectors
  • Easy jig replacement with simple, flexible operation
  • High efficiency: polishes 24, 36, or 48 connectors per cycle with 98%-100% first-pass yield
  • IPC structure with independent compression for each connector
  • Performance metrics: APC return loss ≥60dB, UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
  • Constructed from heat-treated hardened steel S136 for durability
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 2 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 3 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 4
Technical Specifications:

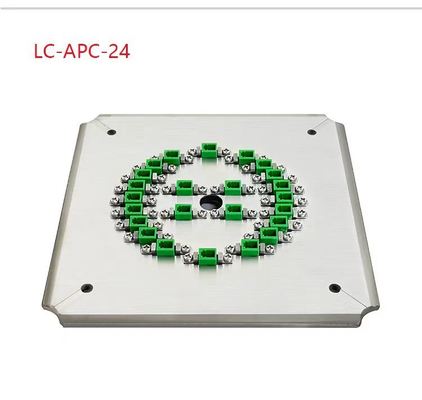

Model LC-APC-24 SC-APC-36 SC-APC-48
Brand CLX CLX CLX
Connector Type LC APC LC APC LC APC
End-face APC APC APC
Ferrule Diameter 1.25mm 1.25mm 1.25mm
Capacity 24 positions 36 positions 48 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥60dB (APC) ≥60dB (APC) ≥60dB (APC)
Application Polishing assembled LC APC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight (kg) 1.3 kgs / 1.5 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Get a free Quotation via Us >>> GO
Polishing Effect

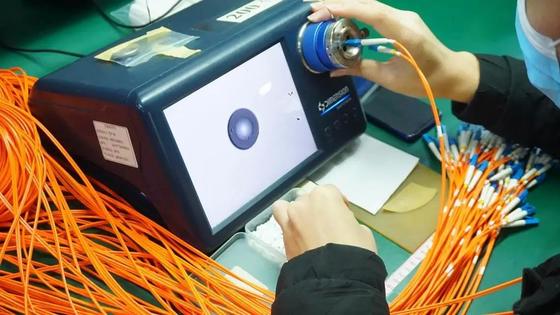

1. Polished Connector Ferrule Faces:
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 5
2. ILRL Test Result:
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB

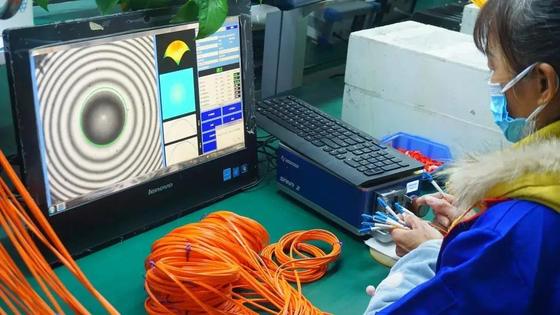

3. Geometry Test Result:
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 6
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
Company Profile
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 7
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, we are an optical communications equipment company specializing in R&D, production, after-sales service, and technical support. We provide high-quality products, excellent after-sales service, and free technical support for fiber connector production challenges.
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
Shipping via DHL or FedEx takes 4-6 days (may vary based on order quantity).
5. How do we pay?
Payment options include advance booking or multiple methods such as T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, accessories available at cost.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
