Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight

1
MOQ
$549.23-592.12
Price
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight
Features Gallery Product Description Request A Quote
Features
Specifications
Net Weight: 1.3 Kg
No. Of Fiber: 1
Material: Hardened Stainless Steel S136
Dimensions: 174mmx174mmx26mm
Insertion Loss: ≤2.3dB
Wave Length: 650nm
Operating Temperature: -40°C ~ + 70°C ,-55°C ~ + 85°C
Attenuation: ＜180dB/km
Gross Weight: 1.5 Kgs
Polishing Capacity: Max 24 Connectors In One Cycle
First Pass Yield: 98%～100%
Interference Pass Rate: ≥ 98% (100% Typical)
Suitable Machines: CLX-02E Polishing Machine, Seikoh Giken SFP-550 Polishing Machine
Fiber Type: Plastic Optical Fiber
Connector Models: HFBR-4501Z, HFBR-4511Z
Highlight:

Hardened Stainless Steel S136 Polishing Fixture

,

HFBR-4501Z/HFBR-4511Z Polishing Fixture

,

2 Year Warranty Polishing Fixture
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuanglixun
Certification: RoHS
Model Number: HFBR 4501Z/HFBR 4511Z, HFBR 4501Z/HFBR 4511Z
Payment & Shipping Terms
Product Description
Factory Custom Plastic Optical Fiber Patch Cord Polishing Fixture
Avago HFBR-4501Z/HFBR-4511Z Connector Polishing Jig
This high-stability fiber polishing fixture delivers excellent surface quality for plastic optical fiber connectors. Manufactured from hardened steel S2316 with heat treatment for extended service life, it's designed for HFBR series connectors and customizable to customer requirements.
Key Features
  1. Compatible with HFBR-4501Z/HFBR-4511Z plastic optical fiber connectors
  2. Quick-change jig system for simple, flexible operation
  3. High-efficiency design polishes up to 24 connectors per cycle with 98-100% first-pass yield
  4. IPC structure with independent compression for each connector
  5. Replaceable accessories extend fixture lifespan
  6. Heat-treated hardened steel S136 construction for durability

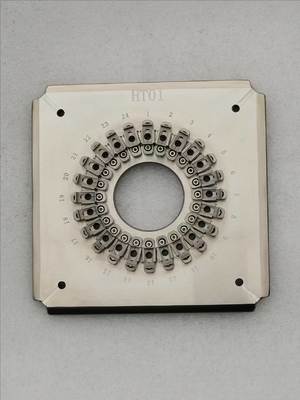

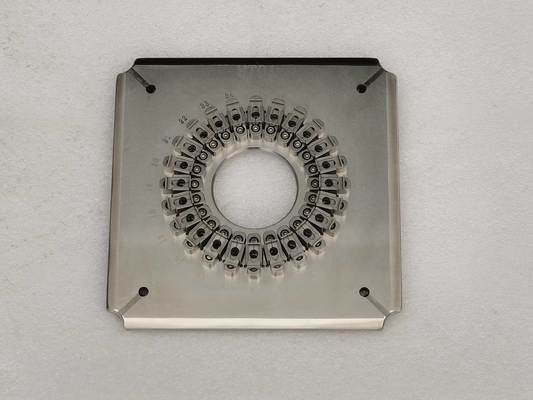

Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 0 Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 1 Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 2
Technical Specifications
Specification Detail
Product Name Plastic optical fiber patch cord polishing fixture
Model HFBR-4501Z/HFBR-4511Z
Insertion Loss ≤2.3dB (connection loss excluded)
Brand Chuanglixun
Wavelength 650nm
Attenuation <180dB/km
Material Hardened stainless steel S136
Dimensions 174mm × 174mm × 26mm
Weight 1.3 kg (Net), 1.5 kg (Gross)
Compatible Machines CLX-02E polishing machine, Seikoh Giken SFP-550, and similar models

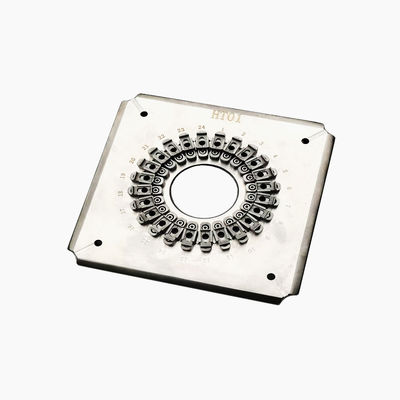

Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 3
Get a free quotation →
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. (established 2010) specializes in optical communications equipment with integrated R&D, production, and technical support services.
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 4
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide samples?
Yes, samples are available.
What are your shipping methods?
Standard delivery via DHL or FedEx takes 4-6 days (may vary by quantity).
What payment methods do you accept?
We accept advance booking, T/T, and T/L payments.
What is your warranty policy?
1-year warranty covering free repairs (excluding consumables). Post-warranty support available at cost.
Do you offer customization?
Yes, we provide custom solutions based on customer requirements.
Request a free quotation →
