High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%

1
MOQ
$149.12-168.25
Price
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%
Features Gallery Product Description Request A Quote
Features
Specifications
Net Weight: 0.5kg
Material: Harden Stainless Steel
Size: 110*5mm
No. Of Fiber: 12
3D Pass Rate: ≥98%
Insertion Loss: ≤0.20dB
Return Loss PC: ≥55dB
Return Loss APC: ≥60dB
Connector Type: SC,FC,LC,ST,MU,E2000(PC/APC)
Polishing Machine Type: Center Pressure Polish Machine
Number Of Fiber Cores: 12
IPC Structure: Independent Compression Of Each Connector
Steel Type: Hardened Steel S2316
First Pass Yield: 100%
Interference Rate: ≥98%
Highlight:

12 Port Polishing Fixture

,

110*5mm Fiber Optic Polishing Jig

,

3D Pass Rate ≥98% Polishing Plate
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuanglixun
Model Number: ST/PC
Payment & Shipping Terms
Product Description

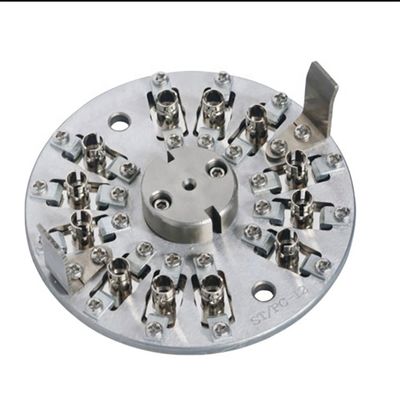

Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

This high-efficiency fiber polishing fixture features an IPC structure with independent compression for each connector. With a pass rate of ≥98% (typically 100% according to IEC standards), it delivers exceptional stability and surface quality for optical fiber connectors.

Key Features
  • Designed for ST/PC and ST/UPC connector polishing
  • High efficiency - polishes 12 ferrules in one cycle
  • Replaceable holders for cost-effective polishing
  • Complies with IEC standards for geometry dimensions
  • 100% first pass yield for end face quality
Technical Specifications
Model ST/PC, ST/UPC
Net Weight 0.5kg
Connector Type SC, FC, LC, ST, MU, E2000 (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 12
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty 24 months
Product Gallery

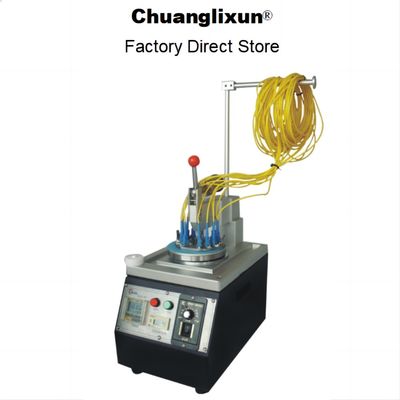

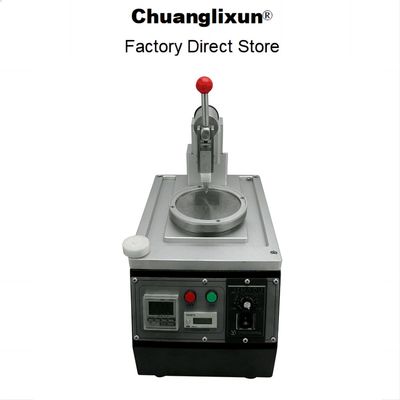

High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 0 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 1 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 2

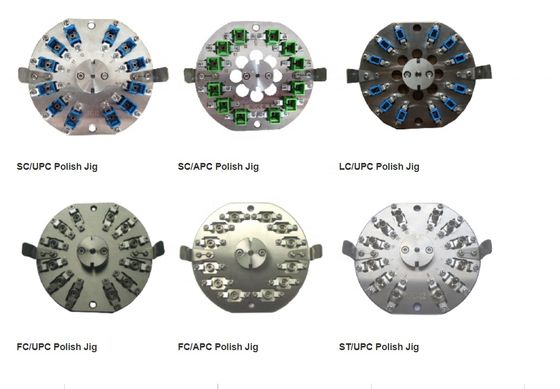

Available Models
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 3 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 4 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 5
Frequently Asked Questions
Are you a factory or a trader?
We are the factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4-6 days (may vary based on order quantity).
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based replacement parts.
Do you provide customized services?
Yes, we offer customization according to customer requirements.
