Home /Products/Polishing Fixture/174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors

174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors

1
MOQ
$326.13-350.25
Price
174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Polishing Jig
Material: Hardened Stainless Steel2316
Connector Type: SC UPC Connector
Size: 174*174*26mm
Ferrule Diameter: 2.50mm
Net Weight: 1.5 Kgs
Gross Weight: 2.0 Kgs
No. Of Fiber: 36 Positions
Insertion Loss: ≤0.20dB
Return Loss: ≥60dB (APC)
End-face: UPC
Capacity: 36 Positions
Radius Of Curvature: 5-25mm (UPC), 5-12mm (APC)
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Highlight:

174*174*26mm Fiber Optic Polishing Fixture

,

1.5 kgs Polishing Jig

,

Insertion Loss ≤0.20dB Fiber Polishing Jig
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Certification: ce
Model Number: SC-UPC-36
Payment & Shipping Terms
Product Description
Factory Price SC UPC 36 Port Connector Fiber Optic Polishing Machine Fixture Jigs For Patch Cord Production

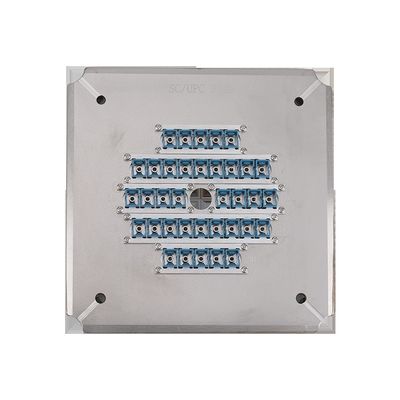

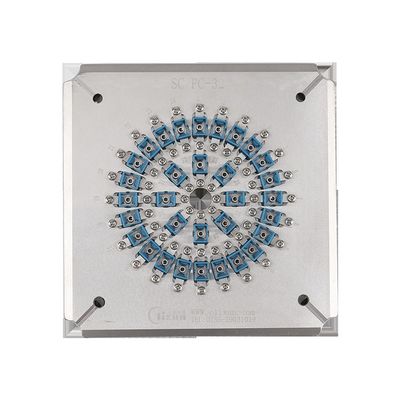

174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors 0 174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors 1
Product Description
This fiber polishing fixture/jig offers high stability and excellent surface quality. Constructed from high-quality heat-treated steel (hardened steel S2316) for extended service life. Compatible with SC, FC, ST, and LC connectors, with customization available per customer requirements.
Key Features
  • Designed specifically for SC/PC connectors
  • Easy jig changing with simple, flexible operation
  • High efficiency - polishes up to 36 connectors per cycle with 98-100% first-pass yield
  • IPC structure with independent compression for each connector
  • Exceptional performance: APC return loss ≥60dB, UPC return loss ≥55dB, insertion loss ≤0.20dB
  • Replaceable accessories significantly extend service life
  • Constructed from hardened steel S136 for durability

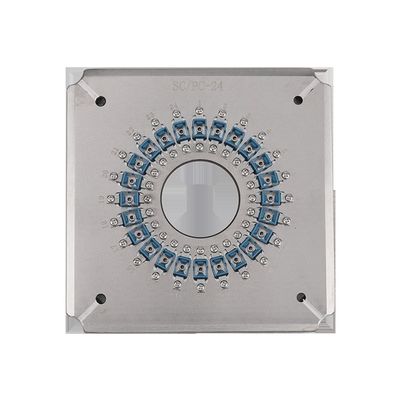

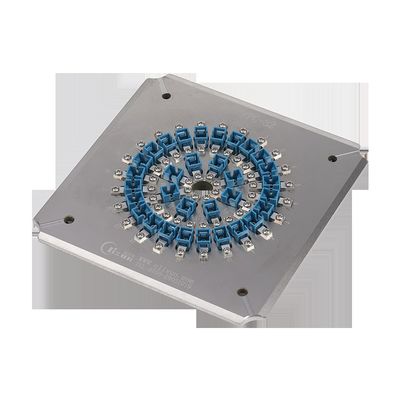

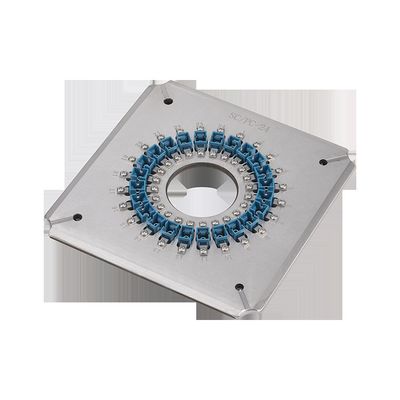

174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors 2 174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors 3 174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors 4
Technical Specifications
Model SC-UPC-24 SC-UPC-32 SC-UPC-36
Brand CLX CLX CLX
Connector Type SC UPC SC UPC SC UPC
End-face UPC UPC UPC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (UPC) ≥55dB (UPC) ≥55dB (UPC)
Application Polishing assembled SC UPC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.3 kg / 1.5 kg
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Polishing Effect
1. Polished Connector Ferrule Faces

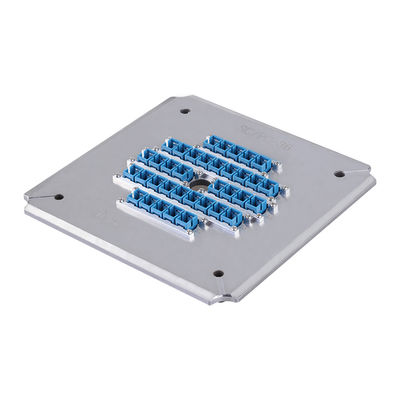

174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors 5
High-quality end-face polishing, no white spots, no scratches, with clearly visible fiber edges
2. ILRL Test Result
174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors 6
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
3. Geometry Test Result
174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors 7
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
Company Profile
174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors 8
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company specializing in R&D, production, after-sales service, and technical support. We provide high-quality products with excellent after-sales service and free technical support for fiber connector production challenges.
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
MOQ is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
We ship via DHL or FedEx in 4-6 days (may vary based on order quantity).
5. How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based accessory services.
7. Do you provide customized services?
Yes, we customize products according to customer requirements.
