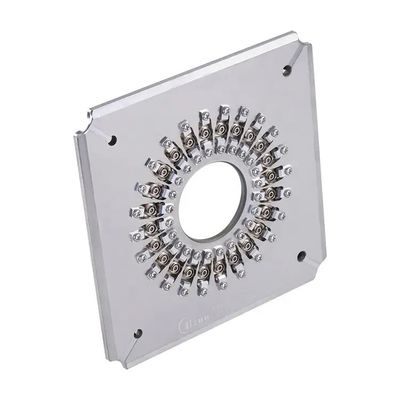

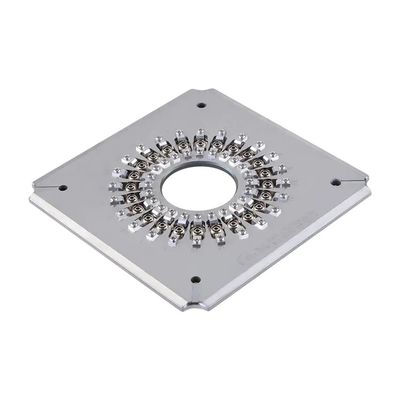

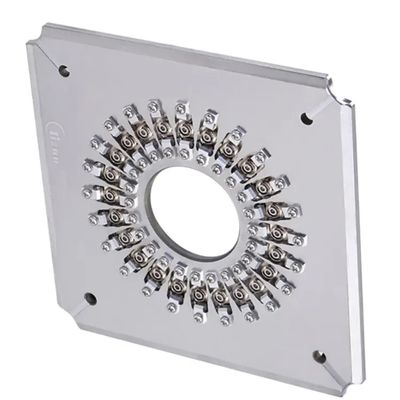

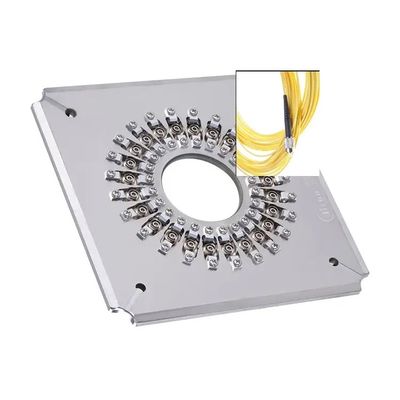

24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes

1
MOQ
$210.23-230.51
Price
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Polishing Jig
Material: Stainless Steel
Connector Type: FC UPC Connector
Size: 174*174*26mm
Ferrule Diameter: 2.50mm
Net Weight: 1.2kgs
Gross Weight: 2.0 Kgs
No. Of Fiber: 24 Positions
Insertion Loss: ≤0.20dB
Return Loss: ≥60dB (APC)
End-face: PC
Capacity: 24 Positions
Radius Of Curvature: 5-25mm
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Highlight:

High Stability Polishing Fixture

,

Good Surface Quality Fiber Optic Polishing Jig

,

Easy to Change Jigs Fiber Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Certification: ce
Model Number: FC-UPC-24, FC/UPC-24, FC/UPC
Payment & Shipping Terms
Product Description
Fiber Optic Polishing Plate Holder Fixture 24 Port FC UPC Fiber Optic Connector Polishing Fixture
This high-stability fiber polishing fixture delivers excellent surface quality for FC/PC connectors. Constructed from heat-treated hardened steel (S2316) for extended service life, it supports various connector types including SC, FC, ST, and LC configurations.
Key Features
  • Designed specifically for FC/PC connectors
  • Simple jig changing mechanism for flexible operation
  • High efficiency - polishes 24, 32, or 36 connectors per cycle
  • 98-100% first pass yield for end face quality
  • IPC structure with independent compression for each connector
  • PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
Specifications
Model FC-PC-24 FC-PC-32 FC-PC-36
Brand CLX CLX CLX
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled FC PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 0 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 1 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 2
Polishing Effect
Polished Connector Ferrule Faces
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 3
High-quality end-face polishing with no white spots or scratches. Fiber edge is clearly visible for optimal performance.
ILRL Test Result
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 4
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
Geometry Test Result
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 5
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
