Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB

Brand Name: chuanglixun
Model Number: ST/PC, ST/PC
Place of Origin: Guangdong, China
Certification: RoHS
Minimum Order Quantity: 1
Price: RM 873.21-1,013.19
Tags

LC connector fiber polishing kit

Square Polishing Fixture

LC connector Polishing Fixture

Product Details

Type: Fiber Optic Production Machine Net Weight: 1.2kg
Material: Hardened Stainless Steel S136 Dimensions: 174mmx174mmx26mm
Insertion Loss: ≤0.20dB Return Loss: ≥55dB (PC)
No. Of Fiber: 24 Connector Type: ST PC
End-face: PC Ferrule Diameter: 2.5mm
Capacity: 24 Positions Radius Of Curvature: 5-25mm
Apex Offset: 0-50μm Fiber Height: -100~+50μm
Angle: 8.00+/-0.50°
Highlight

Hardened Stainless Steel S136 Fiber Polishing Fixture

,

24 Connectors in One Cycle Fiber Polishing Fixture

,

Insertion Loss ≤0.20dB ST Connector Polish Machine

Product Description

ST Connector Polish Machine & Fiber Polishing Fixture

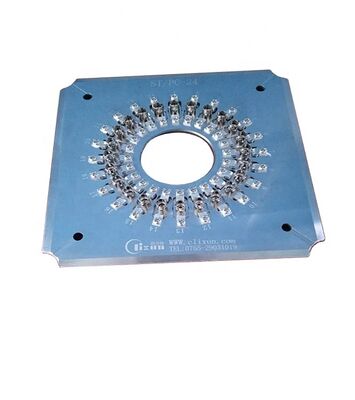

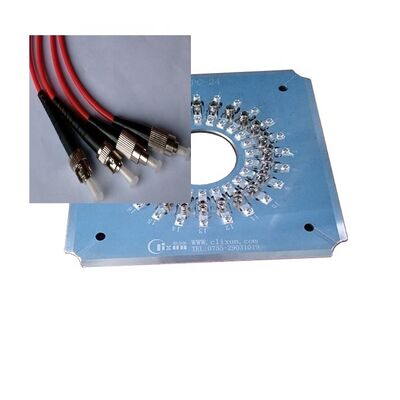

This high-stability fiber polishing fixture delivers exceptional surface quality for ST connector polishing operations. Manufactured from premium heat-treated steel (S2316/S136), it ensures long service life and reliable performance.
Key Features
  • Designed specifically for ST/PC connectors with easy jig changing
  • High efficiency: polishes up to 24, 32, or 36 connectors per cycle
  • First-pass yield for end face quality reaches 98-100%
  • IPC structure with independent compression for each connector
  • Excellent performance: APC return loss ≥60dB, UPC return loss ≥55dB
  • Replaceable accessories extend service life significantly
  • Customizable for SC, FC, ST, LC connectors per customer requirements
Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 0 Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 1
Technical Specifications
Model ST-PC-24 ST-PC-32 ST-PC-36
Brand CLX CLX CLX
Connector Type ST PC ST PC ST PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled ST PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.3 kgs / 1.5 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 2
Get a Free Quotation via Us >>> GO
Polishing Performance & Results
Polished Connector Ferrule Faces
High-quality end-face polishing with no white spots or scratches. Fiber edges are clearly visible for optimal performance.
Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 3
Insertion & Return Loss Test Results
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 4
Geometry Test Results
Parameters UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 5
Manufacturer Profile
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company integrating research and development, production, after-sales service and technical services. We provide high-quality products, comprehensive after-sales service, and free technical support for optical fiber connector production challenges.
Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 6 Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 7 Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 8 Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 9 Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 10 Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 11
Get a Free Quotation via Us >>> GO
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
MOQ 1 piece.
Do you provide sample services?
Yes, we will provide samples.
How will you ship to me?
We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
How do we pay?
Book in advance or multiple payment methods such as T/T and T/L.
How long is your product warranty?
The warranty period is 1 year (providing free repairs, except for consumables). After the warranty period, accessories will continue to be provided at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and description.
Hardened Stainless Steel S136 Fiber Polishing Fixture for ST Connectors with 24 Connectors in One Cycle and Insertion Loss ≤0.20dB 12

Product Highlights

ST fiber polishing fixture polishes up to 24 connectors per cycle with ≤0.20dB insertion loss and ≥55dB return loss. Made from hardened S136 steel for durability. Customizable for SC/FC/LC connectors. 2-year warranty.
