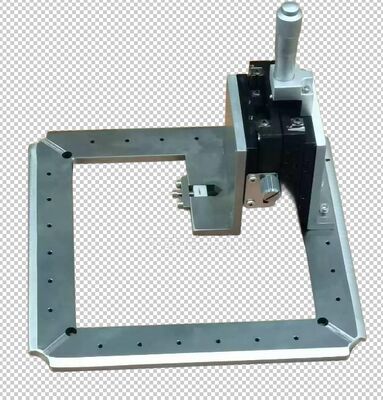

Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use

1
MOQ
$210.23-230.51
Price
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel S136
Dimensions: 174mmx174mmx26mm
Weight: 1.2kg
No. Of Fiber: 24
Ferrule Holder Size: 2.5mm
Connector Type: FC PC
End-face: PC
Ferrule Diameter: 2.5mm
Capacity: 24 Positions
Insertion Loss: ≤0.20dB
Return Loss: ≥55dB (PC)
Radius Of Curvature: 5-25mm
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Angle: 8.00+/-0.50°
Highlight:

Stainless Steel S136 Polishing Fixture

,

2.5mm Ferrule Holder Fiber Optic Polishing Jig

,

174x174x26mm Dimensions Optical Fiber Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Model Number: FC UPC-24, FC UPC-24
Payment & Shipping Terms
Product Description
Optical Fiber Polishing Fixture
High-precision 2.5mm ferrule holder with dimensions of 174x174x26mm, specifically designed for FTTH applications. Constructed from premium stainless steel S136 for exceptional durability and performance.
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 0
Product Overview
This 32-port FC PC patch cord and pigtail fiber optic cable polishing holder delivers high stability and superior surface quality. Manufactured from high-quality heat-treated steel, the hardened S2316 steel construction ensures extended service life. Compatible with various connector types including SC, FC, ST, and LC, with customization available per customer requirements.
Key Features
  • Specifically designed for FC/PC connectors
  • Easy jig replacement with simple, flexible operation
  • High efficiency polishing capacity: 24, 32, or 36 connectors per cycle
  • First-pass yield for end-face quality reaches 98-100%
  • IPC structure with independent compression for each connector
  • Interference pass rate ≥98% (typically 100% per IEC standards)
  • PC return loss ≥55dB with insertion loss ≤0.20dB (typical)
  • Replaceable accessories for extended service life
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 1 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 2 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 3 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 4
Technical Specifications
Parameter FC-PC-24 FC-PC-32 FC-PC-36
Brand CLX CLX CLX
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled FC PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar equipment
Get a free Quotation via Us >>>GO
Polishing Performance Results
Polished Connector Ferrule Faces
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 5
High-quality end-face polishing delivers flawless results with no white spots, no scratches, and clearly visible fiber edges.
Insertion Loss & Return Loss Test Results
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 6
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
Geometry Test Results
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 7
Parameter UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
Manufacturer Profile
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 8
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is a comprehensive optical communications equipment company integrating research and development, production, after-sales service, and technical services. We provide not only high-quality products and excellent after-sales support but also complimentary technical assistance to our customers. Our expertise ensures effective solutions for technical challenges encountered in optical fiber connector production.
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 9 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 10 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 11 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 12 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 13 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 14
Get a free Quotation via Us >>>GO
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 15 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 16 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 17 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 18 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 19 Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 20
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx within 4 to 6 days. Delivery time may vary based on order quantity.
How do we pay?
Advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty period providing free repairs (excluding consumables). After warranty, accessories continue to be available at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and specifications.
Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use 21
