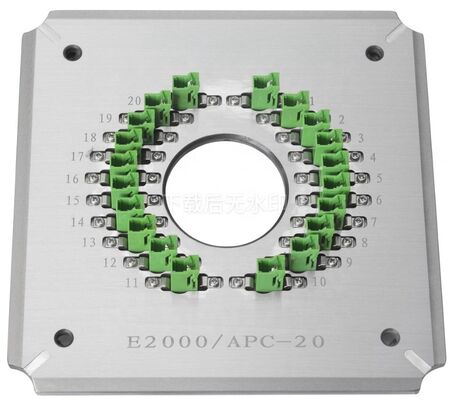

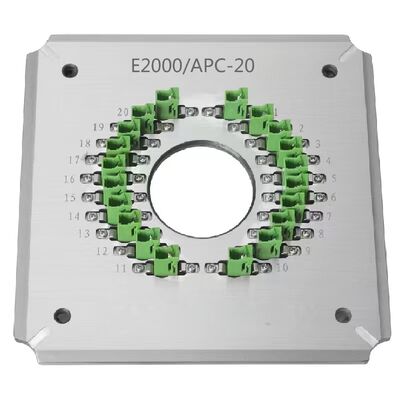

E2000/APC20 Port Optical Fiber Polishing Fixture for FTTH Use with Stainless Steel S136 Construction
Product Details
| Material: | Stainless Steel S136 | Dimensions: | 174mmx174mmx26mm |
|---|---|---|---|
| Weight: | 1.2kg | No. Of Fiber: | 24 |
| Ferrule Holder Size: | 2.5mm | Connector Type: | FC PC |
| End-face: | PC | Ferrule Diameter: | 2.5mm |
| Capacity: | 24 Positions | Insertion Loss: | ≤0.20dB |
| Return Loss: | ≥55dB (PC) | Radius Of Curvature: | 5-25mm |
| Apex Offset: | 0-50μm | Fiber Height: | -100~+50μm |
| Angle: | 8.00+/-0.50° | ||
| Highlight |
Stainless Steel S136 Polishing Fixture,E2000/APC20 Port Polishing Jig,FTTH Use Polishing Holder |
||
Product Description
- Specifically designed for E2000/PC-20 connectors
- Easy jig changing with simple, flexible operation
- High efficiency: polishes up to 20 connectors per cycle
- First-pass yield for end face quality reaches 98%-100%
- IPC structure with independent compression for each connector
- Pass rate with interference ≥98% (typically 100% per IEC standards)
- PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
- Replaceable accessories extend service life significantly
| Model | FC-PC-24 | FC-PC-32 | FC-PC-36 |
|---|---|---|---|
| Brand | CLX | CLX | CLX |
| Connector Type | FC PC | FC PC | FC PC |
| End-face | PC | PC | PC |
| Ferrule Diameter | 2.5mm | 2.5mm | 2.5mm |
| Capacity | 24 positions | 32 positions | 36 positions |
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥55dB (PC) | ≥55dB (PC) | ≥55dB (PC) |
| Application | Polishing assembled FC PC connectors | ||
| Material | Stainless Steel | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight | 1.5 kgs / 2.0 kgs | ||
| Suitable Machines | CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines | ||
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return Loss | ≥55dB | ≥60dB | ≥30dB |
| Parameter | UPC Criterion | APC Criterion |
|---|---|---|
| Radius of Curvature | 5-25mm | 5-12mm |
| Apex Offset | 0-50μm | 0-50μm |
| Fiber Height | -100~+50μm | -100~+50μm |
| Angle | n/a | 8.00+/-0.50° |
We are a factory.
Minimum order quantity is 1 piece.
Yes, we provide samples.
We ship via DHL or FedEx, typically 4 to 6 days delivery time.
We accept advance booking, T/T, and T/L payment methods.
1-year warranty with free repairs (excluding consumables). After warranty, accessories provided at cost.
Yes, we provide customized services according to customer requirements.
Product Highlights
E2000/APC20 fiber polishing fixture polishes up to 20 connectors per cycle with 98-100% first-pass yield. Made of hardened stainless steel S136 for durability. Achieves ≤0.20dB insertion loss and ≥55dB return loss. Custom jig options available.
