Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig

1
MOQ
Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig
Features Gallery Product Description Request A Quote
Features
Specifications
Net Weight: 1.3kg
Dimensions: 174*174*26mm
Materials: Stainless Steel
Connector Type: FC APC Connector
Gross Weight: 1.5kgs
Package Dimensions: 220*220*100mm
No. Of Fiber: 26
Ferrule Diameter: 2.5mm
Capacity: 26 Positions
Insertion Loss: ≤0.20dB
Return Loss: ≥60dB (PC)
Radius Of Curvature: 5-12mm
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Angle: 8.00+/-0.50°
Highlight:

Stainless Steel Polishing Fixture

,

26 Port FC APC Polishing Jig

,

High Efficiency Fiber Optic Polishing Jig
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Model Number: FC APC-26
Payment & Shipping Terms
Product Description

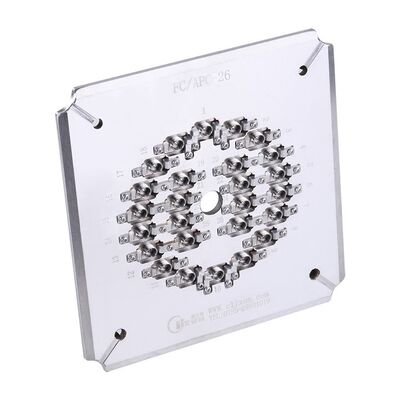

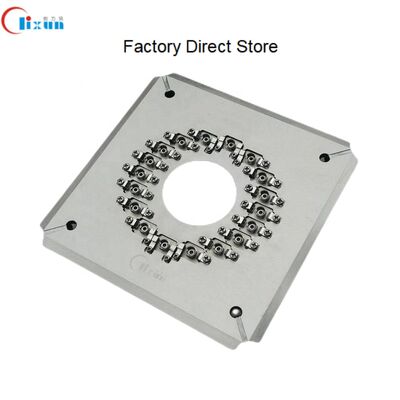

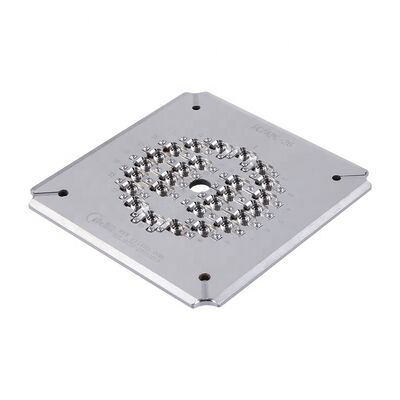

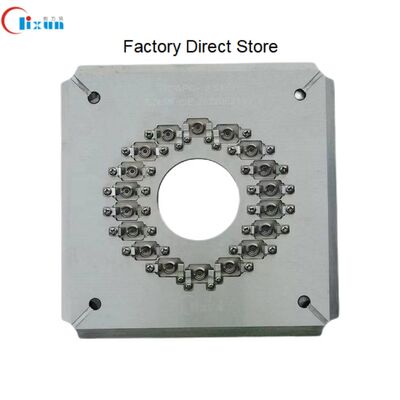

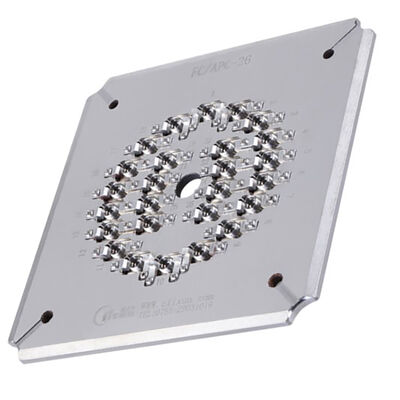

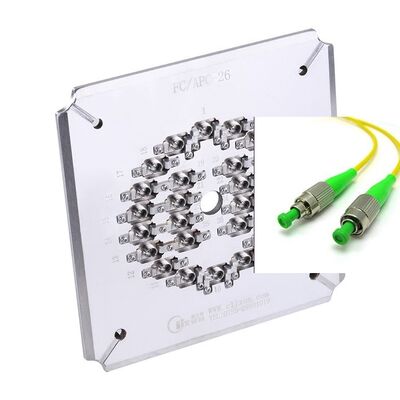

Optical Fiber Patch Cord Grinding Disc 26 Port FC APC Polishing Fixture
This high-stability fiber polishing fixture delivers exceptional surface quality for FC APC connectors. Constructed from premium hardened steel S2316 with heat treatment, it ensures long service life and reliable performance. Customizable for SC, FC, ST, LC connectors and other configurations upon request.
Key Features
  • Specifically designed for FC/APC connectors
  • Easy jig replacement with simple, flexible operation
  • High efficiency: polishes 18, 26, or 36 connectors per cycle
  • First-pass yield for end face quality reaches 98%–100%
  • IPC structure with independent compression for each connector
  • Pass rate with interference ≥98% (typically 100% per IEC standards)
  • APC return loss ≥60dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life significantly
Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig 0 Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig 1 Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig 2 Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig 3
Technical Specifications
Model FC-APC-18 FC-APC-26 FC-APC-36
Brand CLX CLX CLX
Connector Type FC APC FC APC FC APC
End-face APC APC APC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 18 positions 26 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥60dB (PC) ≥60dB (PC) ≥60dB (PC)
Application Polishing assembled FC APC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Polishing Performance Results
Polished Connector Ferrule Faces
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges
Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig 4
Insertion Loss & Return Loss Test Results
Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig 5
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Geometry Test Results
Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig 6
Parameter UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig 7 Stainless Steel 26 Port FC APC Polishing Fixture for High Efficiency Fiber Optic Polishing Jig 8
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company integrating research and development, production, after-sales service, and technical services. We provide high-quality products, excellent after-sales service, and free technical support for optical fiber connector production challenges.
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4 to 6 days, with timing adjusted based on order quantity.
How do we pay?
Payment in advance or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty with free repairs (excluding consumables). After warranty, accessories provided at cost.
