36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB

1
MOQ
€285.48-310.03
Price
36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Polishing Jig
Material: Hardened Stainless Steel2316
Connector Type: SC APC Connector
Size: 174*174*26mm
Ferrule Diameter: 2.50mm
Net Weight: 1.5 Kgs
Gross Weight: 2.0 Kgs
No. Of Fiber: 36 Positions
Insertion Loss: ≤0.20dB
Return Loss: ≥60dB (APC)
End-face: APC
Capacity: 36 Positions
Radius Of Curvature: 5-12mm
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Highlight:

36 Positions Polishing Fixture

,

Hardened Stainless Steel S2316 Fiber Optic Polishing Jig

,

APC Return Loss ≥60dB Fiber Polishing Plate
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Certification: ce
Model Number: SC-APC-36
Payment & Shipping Terms
Product Description

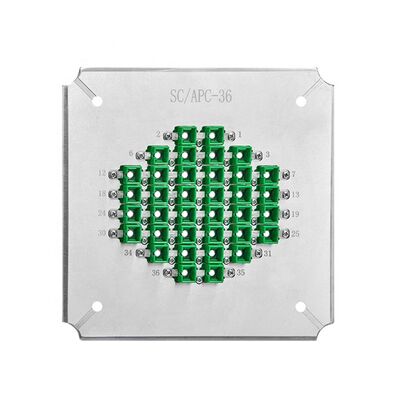

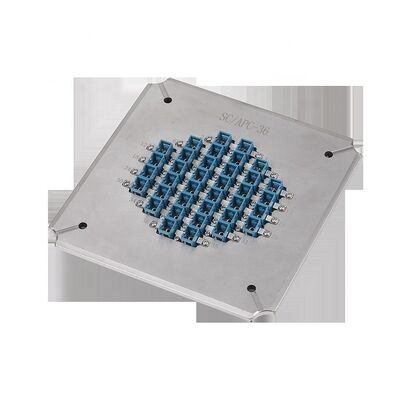

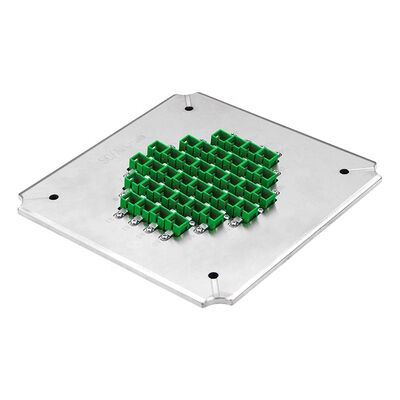

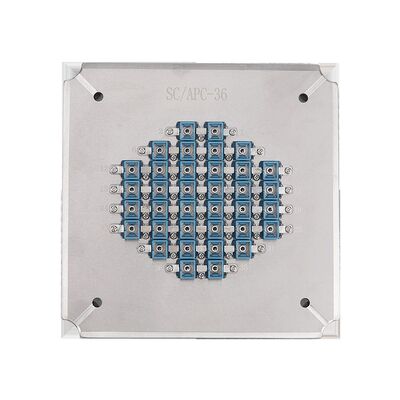

Fiber Optic Connectors SC APC Polishing Jig
Product Overview

High-stability fiber polishing fixture with excellent surface quality, manufactured from hardened steel S2316 for extended service life. Compatible with SC, FC, ST, LC connector types and customizable to customer requirements.

Key Features
  • Designed for SC/APC connectors with easy jig changing mechanism
  • High efficiency: polishes up to 36 connectors per cycle
  • First-pass yield for end face quality reaches 98-100%
  • IPC structure with independent compression for each connector
  • APC return loss ≥60dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories for extended service life
Technical Specifications
Model SC-UPC-24 SC-APC-26 SC-APC-36
Brand CLX CLX CLX
Connector Type SC UPC SC APC SC APC
End-face UPC APC APC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 26 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB (UPC) ≥60dB (APC) ≥60dB (APC)
Material Stainless Steel S136
Dimension (L*W*H) 174*174*26 mm
Weight 1.5 kgs net / 2.0 kgs gross
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB 0
FC PC Connector Polishing Fixture

Available in 24, 32, and 36 position configurations for FC/PC connectors with the same high-quality construction and performance standards.

Model FC-PC-24 FC-PC-32 FC-PC-36
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB 1 36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB 2 36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB 3
Performance Results
Polished Connector Ferrule Faces

High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.

36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB 4
Insertion & Return Loss Test Results
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB 5
Geometry Test Results
Parameter UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB 6
Manufacturer Information

Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company integrating research and development, production, after-sales service and technical services.

36 Positions Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 for APC Return Loss ≥60dB 7
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
MOQ 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4 to 6 days (extended based on order quantity).
How do we pay?
Payment in advance or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty with free repairs (excluding consumables). After warranty, accessories provided at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements.
