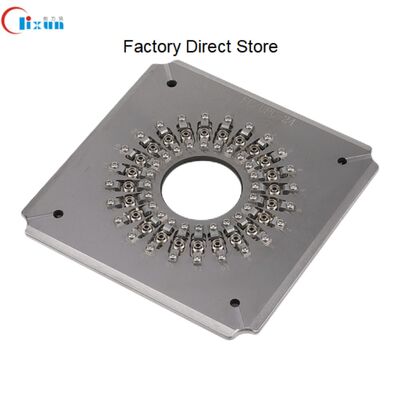

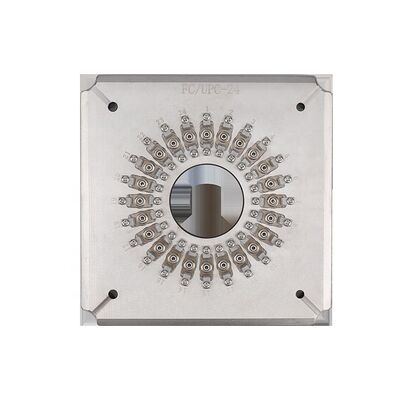

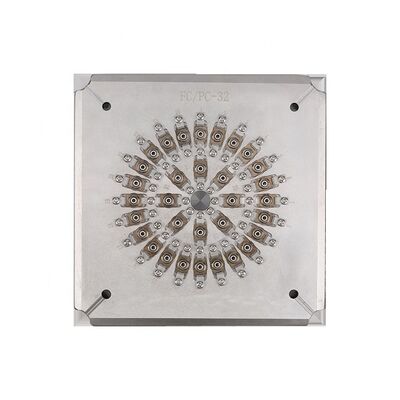

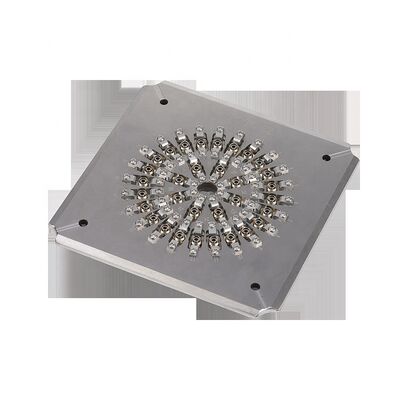

36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig

1
MOQ
36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Production Machine
Size: 174*174*26mm
Material: Stainless Steel
Ferrule Diameter: 2.50 Mm
No. Of Fiber: 36
Connector Type: FC PC
End-face: PC
Capacity: 36 Positions
Insertion Loss: ≤0.20dB
Return Loss: ≥55dB (PC)
Net Weight: 1.5 Kgs
Gross Weight: 2.0 Kgs
Radius Of Curvature: 5-25mm
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Highlight:

36 Positions Polishing Fixture

,

Stainless Steel Fiber Connector Polish Jig

,

High Efficiency FC UPC Polishing Jig
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Model Number: FC UPC
Payment & Shipping Terms
Product Description
FC/PC FC/UPC Connector Polishing Fixture
General size FC/PC FC/UPC Connector Polishing Fixture 36 FC Fiber Connector Polish Jig
Product Overview
This fiber polishing fixture/jig delivers high stability and excellent surface quality. Manufactured from high-quality heat-treated steel, the hardened S2316 steel construction ensures long service life. Designed to accommodate various connector types including SC, FC, ST, LC, and can be customized according to customer requirements.
36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 0 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 1 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 2 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 3 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 4 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 5
Key Features
  • Specifically designed for FC/PC and FC/UPC connectors
  • Easy jig changing with simple and flexible operation
  • High efficiency: polishes up to 24, 32, or 36 connectors per cycle
  • First pass yield for end face quality reaches 98%–100%
  • IPC structure with independent compression for each connector
  • Pass rate with interference ≥98% (100% typical, per IEC standards)
  • PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life significantly
Technical Specifications
Model FC-PC-24 FC-PC-32 FC-PC-36
Brand CLX CLX CLX
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled FC PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Polishing Performance Results
Polished Connector Ferrule Faces
36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 6
High-quality end-face polishing with no white spots, no scratches, and clearly visible fiber edges
Insertion Loss & Return Loss Test Results
36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 7
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Geometry Test Results
36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 8
Parameter UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 9 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 10
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, we are an optical communications equipment company integrating research and development, production, after-sales service, and technical services. We provide high-quality products, excellent after-sales service, and free technical support to our customers. We offer effective solutions for technical problems encountered in optical fiber connector production.
36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 11 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 12 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 13 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 14 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 15 36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 16
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx, typically 4 to 6 days. Delivery time may vary based on order quantity.
How do we pay?
Payment in advance or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty period providing free repairs (excluding consumables). After warranty, accessories are available at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and specifications.
36 Positions Stainless Steel High Efficiency FC UPC Polishing Fixture for Fiber Connector Polish Jig 17
