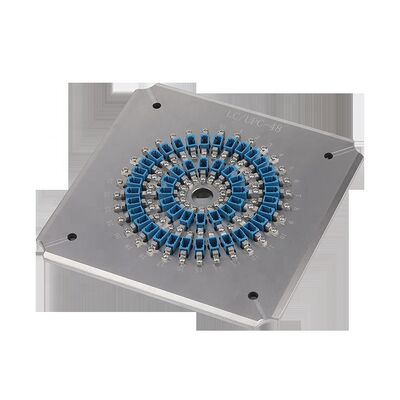

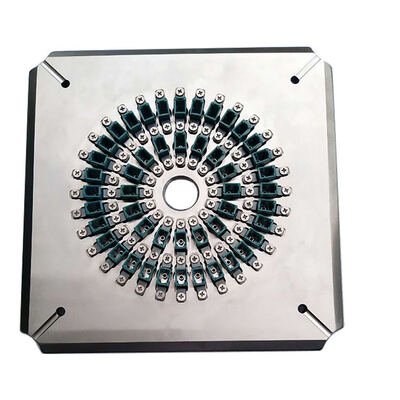

48 Ports LC PC Fiber Optic Polishing Jig with Hardened Stainless Steel for High Efficiency Grinding
Product Details
| Type: | Fiber Optic Connectors Polishing Jig | Dimensions: | 174*174*26mm |
|---|---|---|---|
| Net Weight: | 1.3 Kg | Material: | Hardened Stainless Steel |
| No. Of Fiber: | 48 | Ferrule Diameter: | 1.25mm |
| Capacity: | 48 Positions | Insertion Loss: | ≤0.20dB |
| Return Loss: | ≥55dB (PC) | End-face: | PC |
| Connector Type: | LC PC | Radius Of Curvature: | 5-25mm |
| Apex Offset: | 0-50μm | Fiber Height: | -100~+50μm |
| Angle: | 8.00+/-0.50° | ||
| Highlight |
48 Ports Polishing Fixture,Hardened Stainless Steel Fiber Grinding Fixture,High Efficiency Fiber Optic Polishing Jig |
||
Product Description
- Specifically designed for LC/PC connectors
- Easy jig changing with simple, flexible operation
- High efficiency: polishes up to 48 connectors per cycle
- First-pass yield for end face quality reaches 98-100%
- IPC structure with independent compression for each connector
- Pass rate with interference ≥98% (typically 100% per IEC standards)
- PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
- Replaceable accessories extend service life
| Model | LC-UPC-24 | LC-PC-40 | LC-PC-48 |
|---|---|---|---|
| Brand | CLX | CLX | CLX |
| Connector Type | LC PC | LC PC | LC PC |
| End-face | PC | PC | PC |
| Ferrule Diameter | 1.25mm | 1.25mm | 1.25mm |
| Capacity | 24 positions | 40 positions | 48 positions |
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥55dB (PC) | ≥55dB (PC) | ≥55dB (PC) |
| Application | Polishing assembled LC PC connectors | Polishing assembled LC PC connectors | Polishing assembled LC PC connectors |
Material: Stainless Steel S136
Dimension: 174×174×26 mm
Net Weight: 1.5 kgs / Gross Weight: 2.0 kgs

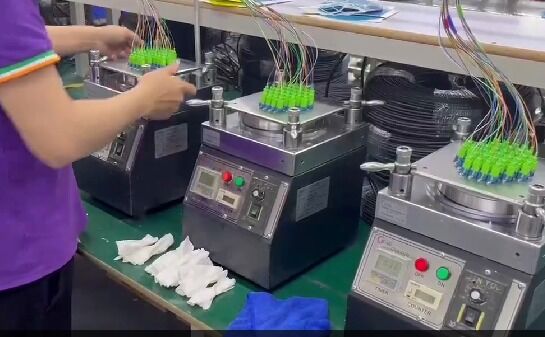

Suitable Machines: CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return Loss | ≥55dB | ≥60dB | ≥30dB |
| Parameter | UPC Criterion | APC Criterion |
|---|---|---|
| Radius of Curvature | 5-25mm | 5-12mm |
| Apex Offset | 0-50μm | 0-50μm |
| Fiber Height | -100~+50μm | -100~+50μm |
| Angle | n/a | 8.00+/-0.50° |
Established in 2010, we are an optical communications equipment company integrating research and development, production, after-sales service, and technical services. We provide high-quality products, comprehensive after-sales support, and free technical assistance for fiber optic connector production challenges.
Product Highlights
Polishes 48 LC/PC connectors in one cycle with 98-100% first-pass yield. Hardened stainless steel ensures durability. Achieves ≤0.20dB insertion loss & ≥55dB return loss. 2-year warranty.
