Hardened Stainless Steel FC APC Optical Fiber 18/26 Ports Polishing Fixture with Insertion Loss ≤0.20dB

Brand Name: Chuanglixun
Model Number: FC/APC, FC/APC
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Tags

LC connector fiber polishing kit

Square Polishing Fixture

LC connector Polishing Fixture

Product Details

Net Weight: 1.3 Kg No. Of Fiber: 18/26
Size: 174mm*174mm*26 Mm Materials: Hardened Stainless Steel
Insertion Loss: ≤0.20dB Return Loss: ≥55dB (PC) ≥60dB (APC)
Ferrule Diameter: 2.5mm Capacity: 24 Positions, 32 Positions, 36 Positions
End-face: PC Connector Type: FC PC
Radius Of Curvature: 5-25mm (UPC), 5-12mm (APC) Apex Offset: 0-50μm
Fiber Height: -100~+50μm Angle: 8.00+/-0.50° (APC)
First Pass Yield: 98%～100%
Highlight

Hardened Stainless Steel Polishing Fixture

,

18/26 Ports Fiber Polishing Jig

,

Insertion Loss ≤0.20dB Optical Fiber Polishing Holder

Product Description

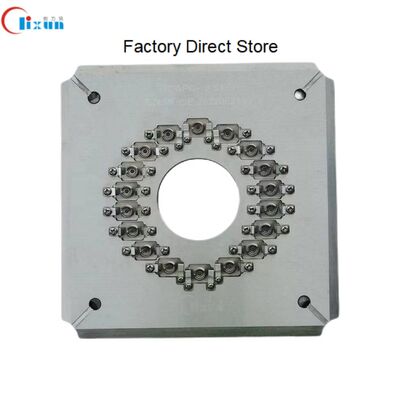

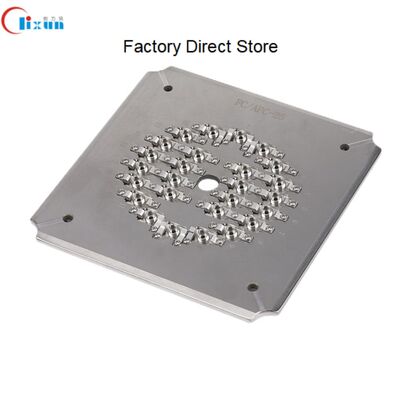

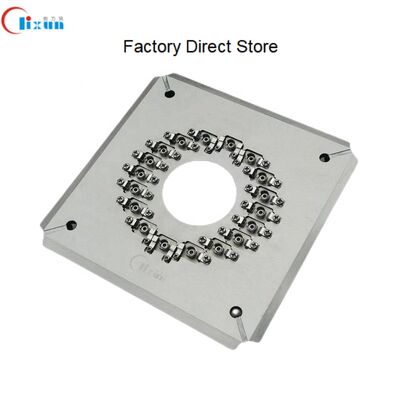

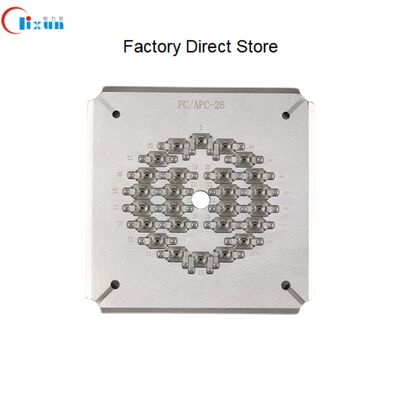

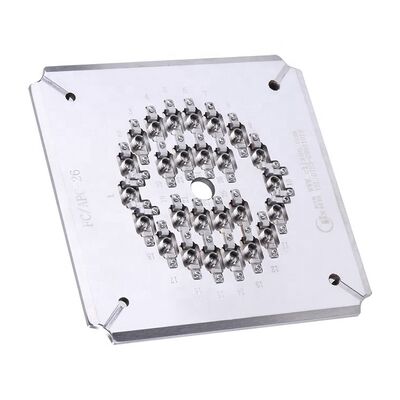

FC APC Optical Fiber 18/26 Ports Polishing Fixture
This high-stability fiber polishing fixture delivers exceptional surface quality for optical fiber connectors. Manufactured from premium heat-treated hardened steel (S2316), it ensures long service life and reliable performance.
Key Features
  • Designed specifically for FC/PC connectors
  • Easy jig replacement with simple, flexible operation
  • High efficiency: polishes 24, 32, or 36 connectors per cycle
  • First-pass yield for end face quality reaches 98-100%
  • IPC structure with independent compression for each connector
  • Pass rate with interference ≥98% (typically 100% per IEC standards)
  • PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life significantly
Hardened Stainless Steel FC APC Optical Fiber 18/26 Ports Polishing Fixture with Insertion Loss ≤0.20dB 0 Hardened Stainless Steel FC APC Optical Fiber 18/26 Ports Polishing Fixture with Insertion Loss ≤0.20dB 1 Hardened Stainless Steel FC APC Optical Fiber 18/26 Ports Polishing Fixture with Insertion Loss ≤0.20dB 2
Technical Specifications
Model FC-PC-24 FC-PC-32 FC-PC-36
Brand CLX CLX CLX
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled FC PC connectors Polishing assembled FC PC connectors Polishing assembled FC PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Polishing Performance Results
Polished Connector Ferrule Faces
High-quality end-face polishing with no white spots or scratches, featuring clearly visible fiber edges.
Hardened Stainless Steel FC APC Optical Fiber 18/26 Ports Polishing Fixture with Insertion Loss ≤0.20dB 3
Insertion Loss & Return Loss Test Results
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Hardened Stainless Steel FC APC Optical Fiber 18/26 Ports Polishing Fixture with Insertion Loss ≤0.20dB 4
Geometry Test Results
Parameters UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
Hardened Stainless Steel FC APC Optical Fiber 18/26 Ports Polishing Fixture with Insertion Loss ≤0.20dB 5 Hardened Stainless Steel FC APC Optical Fiber 18/26 Ports Polishing Fixture with Insertion Loss ≤0.20dB 6 Hardened Stainless Steel FC APC Optical Fiber 18/26 Ports Polishing Fixture with Insertion Loss ≤0.20dB 7
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company integrating research and development, production, after-sales service, and technical services. We provide high-quality products, comprehensive after-sales support, and free technical assistance for optical fiber connector production challenges.
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx within 4 to 6 days, with timing adjusted based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty period with free repairs (excluding consumables). After warranty, accessories are provided at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and specifications.

Product Highlights

High-precision FC APC fiber polishing fixture with hardened stainless steel construction. Polishes 18/26 connectors per cycle with exceptional performance: ≤0.20dB insertion loss, ≥60dB APC return loss. Features independent compression, 98-100% first-pass yield, and custom jig options.

Send Inquiry
