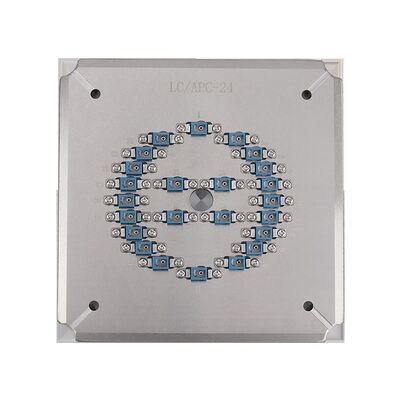

Universal LC APC 24-Position Polishing Fixture with Stainless Steel S136 for High Efficiency Fiber Optic Polishing
Product Details
| Connector Type: | LC APC Connector | Gross Weight: | 2 Kgs |
|---|---|---|---|
| Package Dimensions: | 220*220*100mm | Max Capacity: | 24 Positions For LC APC Connectors |
| Dimensions: | 174*174*26mm | Materials: | Stainless Steel S136 |
| Ferrule Diameter: | 1.25mm | Insertion Loss: | ≤0.20dB |
| Return Loss: | ≥60dB (UPC) | Net Weight: | 1.3 Kgs |
| Radius Of Curvature: | 5-25mm (UPC), 5-12mm (APC) | Apex Offset: | 0-50μm |
| Fiber Height: | -100~+50μm | Angle: | 8.00+/-0.50° (APC) |
| First Pass Yield: | 98%～100% | ||
| Highlight |
24 positions Polishing Fixture,Stainless Steel S136 Fiber Optic Polishing Jig,High efficiency LC APC Polishing Holder |
||
Product Description
This high-stability fiber polishing fixture/jig delivers exceptional surface quality for LC APC connectors. Manufactured from heat-treated hardened steel S2316 for extended service life, this precision tool can be customized for SC, FC, ST, LC, and other connector types according to customer requirements.
- Specifically designed for LC/APC connectors
- Easy jig changing with simple, flexible operation
- High efficiency: polishes up to 24, 36, or 48 connectors per cycle
- First-pass yield for end face quality reaches 98%–100%
- IPC structure with independent compression for each connector
- Interference pass rate ≥98% (typically 100%, per IEC standards)
- Performance: APC return loss ≥60dB, UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
- Replaceable accessories for extended service life
- High-quality heat-treated hardened steel construction
| Model | LC-APC-24 | LC-APC-36 | LC-APC-48 |
|---|---|---|---|
| Brand | CLX | CLX | CLX |
| Connector Type | LC-APC | LC-APC | LC-APC |
| End-face | APC | APC | APC |
| Ferrule Diameter | 1.25mm | 1.25mm | 1.25mm |
| Capacity | 24 positions | 36 positions | 48 positions |
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥60dB (UPC) | ≥60dB (UPC) | ≥60dB (UPC) |
| Application | Polishing assembled LC APC connectors | ||
| Material | Stainless Steel | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight | 1.3 kgs / 1.5 kgs | ||
| Suitable Machines | CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines | ||
High-quality end-face polishing with no white spots, no scratches, and clearly visible fiber edges.
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return Loss | ≥55dB | ≥60dB | ≥30dB |
| Parameters | UPC Criterion | APC Criterion |
|---|---|---|
| Radius of Curvature | 5-25mm | 5-12mm |
| Apex Offset | 0-50μm | 0-50μm |
| Fiber Height | -100~+50μm | -100~+50μm |
| Angle | n/a | 8.00+/-0.50° |
