26 Port FC APC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Independent Compression

1
MOQ
$306.16-338.56
Price
26 Port FC APC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Independent Compression
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Production Machine
Material: Hardened Stainless Steel S136
Size: 174mmx174mmx5.1 Mm
Net Weight: 1.2kg
No. Of Fiber: 26
Insertion Loss: ≤0.20dB
Return Loss PC: ≥55dB
Return Loss APC: ≥60dB
Polishing Qualification Rate: 98%～100%
Connector Type: FC/APC
Max Connectors: 26
Structure: IPC Structure
Compression Type: Independent Compression
Service Life: Long
Heated Treatment: Yes
Highlight:

26 Port Polishing Fixture

,

Hardened Stainless Steel S136 Polishing Jig

,

Independent Compression Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuanglixun
Model Number: FC/APC, FC/APC
Payment & Shipping Terms
Product Description
FC/APC Fiber Optic 26-Port Connector Polishing Fixture
This specialized polishing fixture is engineered for high-efficiency FC/APC fiber optic connector polishing, featuring advanced design for optimal performance and durability.
Key Features
  • Specifically designed for FC/APC fiber optic connectors
  • Easy jig replacement with simple, flexible operation
  • High-efficiency polishing of up to 26 connectors per cycle
  • First-pass yield rate of 98% to 100% for end face quality
  • IPC structure with independent compression for each connector
  • Interference pass rate ≥98% (typically 100% per IEC standards)
  • Superior optical performance: APC return loss ≥60dB, UPC return loss ≥55dB, insertion loss ≤0.20dB
  • Replaceable accessories for extended service life
  • Constructed from high-quality, heat-treated hardened steel S136
  • Compatible with SC, FC, ST, LC connector jigs and custom designs
Technical Specifications
Model Number FC/APC
Dimensions 174mm × 174mm × 5.1mm
Net Weight 1.2kg
Fiber Capacity 26 connectors
Application FC/APC Fiber Optic Connector Polishing
Material Hardened stainless steel S136
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC) / ≥60dB (APC)
Polishing Qualification Rate 98% to 100%
Product Images

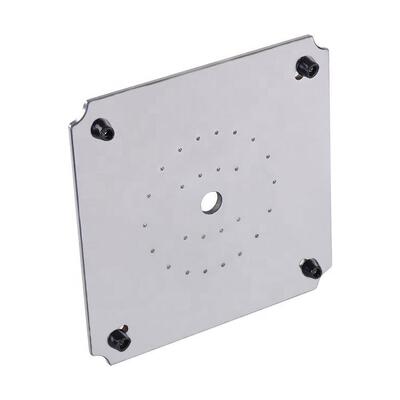

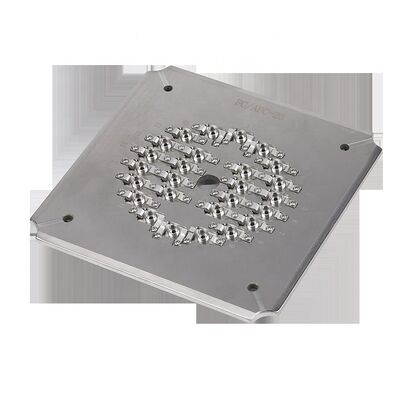

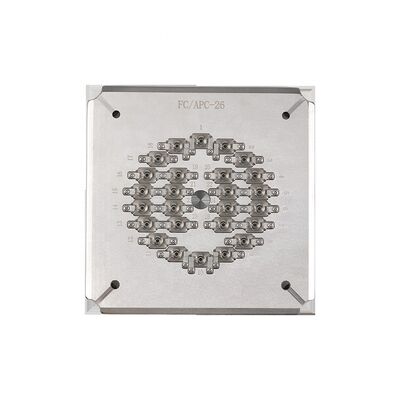

26 Port FC APC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Independent Compression 0 26 Port FC APC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Independent Compression 1 26 Port FC APC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Independent Compression 2 26 Port FC APC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Independent Compression 3 26 Port FC APC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Independent Compression 4 26 Port FC APC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Independent Compression 5
Shipping Information
We utilize major international carriers including DHL, FedEx, UPS, EMS, TNT, and Sea freight. Customers may provide their courier account for optimized shipping cost based on order quantity.
26 Port FC APC Fiber Optic Polishing Fixture with Hardened Stainless Steel S136 and Independent Compression 6
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturing factory.
What is your minimum order quantity?
MOQ is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
Shipping via DHL or FedEx typically takes 4-6 days, with timing adjusted based on order quantity.
How do we pay?
We accept advance booking and multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty with free repairs (excluding consumables). After warranty period, accessories are available at cost.
Do you provide customized services?
Yes, we provide custom services according to customer requirements and specifications.
