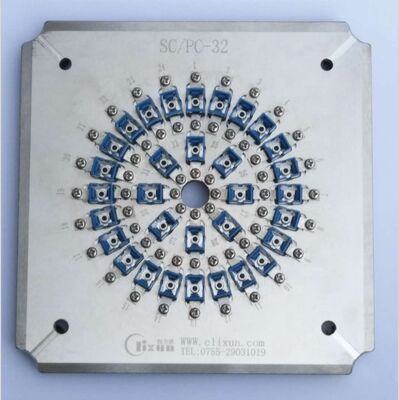

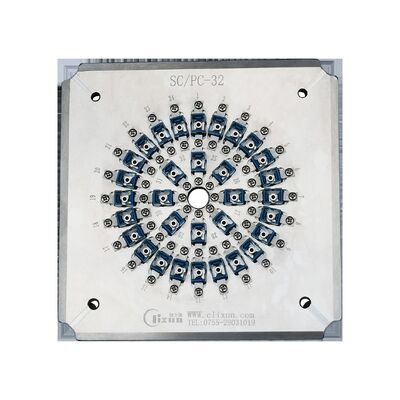

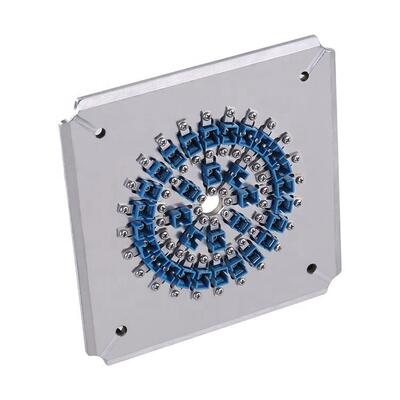

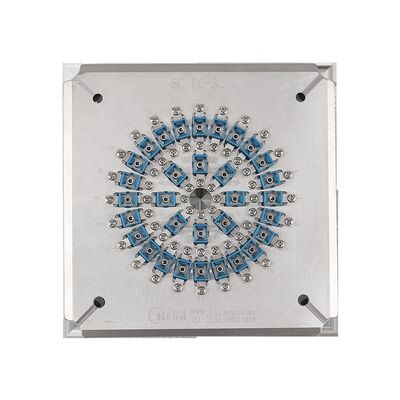

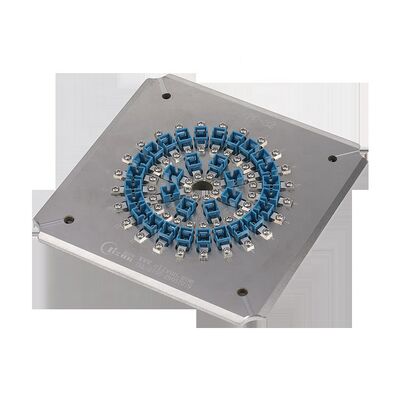

32 Hole Connector SC/UPC Polishing Fixture with Hardened Stainless Steel S136 Fiber Optic Polishing Jig
Product Details
| Net Weight: | 1.2kg | Size: | 174mmx174mmx5.1mm |
|---|---|---|---|
| Insertion Loss: | ≤0.20dB | Return Loss PC: | ≥55dB |
| Return Loss APC: | ≥60dB | No. Of Fiber: | 32 |
| Material: | Hardened Stainless Steel S136 | Connector Type: | SC/UPC |
| Polishing Qualification Rate: | 98%～100% | Max Connectors: | 32 |
| First Pass Yield: | 98%～100% | IPC Structure: | Yes |
| Independent Compression: | Yes | Heated Treatment: | Yes |
| Jig Compatibility: | SC, FC, ST, LC | ||
| Highlight |
32 Hole Connector Polishing Fixture,SC/UPC Polishing Fiber Optic Polishing Jig,Hardened Stainless Steel S136 Polishing Plate |
||
Product Description
- Specifically designed for SC/UPC connector polishing applications
- Easy jig replacement with simple, flexible operation
- High efficiency: polishes up to 32 connectors per cycle
- Exceptional first-pass yield: 98% to 100% end-face quality
- IPC structure with independent compression for each connector
- Interference pass rate ≥98% (typically 100% per IEC standards)
- Superior optical performance: APC return loss ≥60dB, UPC return loss ≥55dB
- Low insertion loss: ≤0.20dB (typical)
- Replaceable accessories for extended service life
- High-quality S136 hardened stainless steel construction
- Customizable for SC, FC, ST, LC connectors and customer requirements
| Model Number | SC/UPC |
|---|---|
| Dimensions | 174mm × 174mm × 5.1mm |
| Net Weight | 1.2kg |
| Application | Fiber Optic Patch Cord Production |
| Number of Fibers | 32 |
| Material | Hardened Stainless Steel S136 |
| Insertion Loss | ≤0.20dB |
| Return Loss | ≥55dB (PC/UPC), ≥60dB (APC) |
| Connector Polishing Qualification Rate | 98%～100% |
| Minimum Order Quantity | 1 Piece |
Product Highlights
32-hole SC/UPC fiber optic polishing fixture. Polishes 32 connectors per cycle with 98-100% first-pass yield. Features hardened S136 steel for durability, ≤0.20dB insertion loss, and ≥55/60dB return loss. Custom options available.
