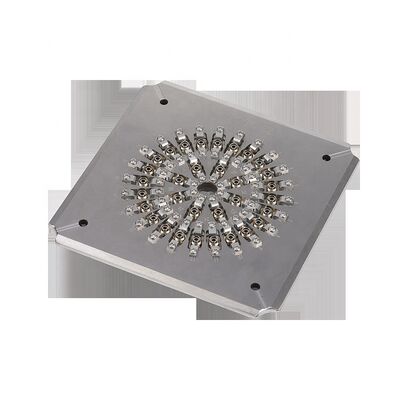

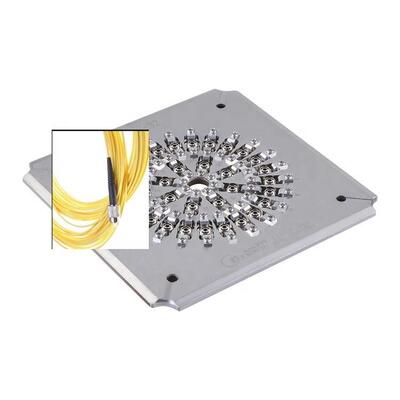

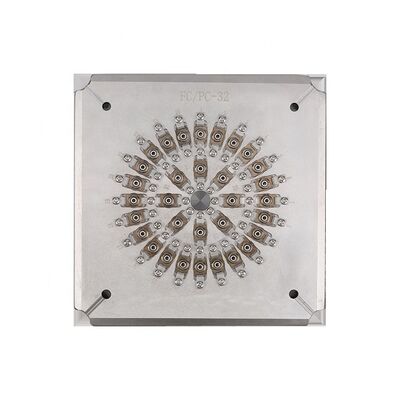

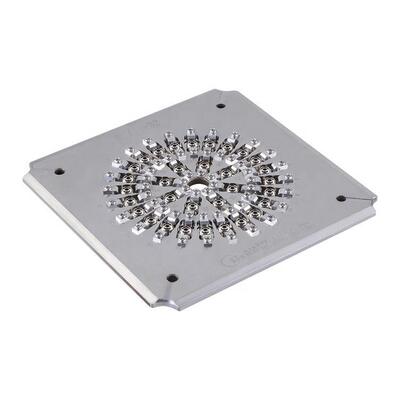

32 Ports FC PC Fiber Optic Connector Polishing Fixture with Hardened Stainless Steel S136 and IPC Structure
Product Details
| Type: | Fiber Optic Production Machine | Net Weight: | 1.2kg |
|---|---|---|---|
| Size: | 174mm*174mm*26mm | Material: | Hardened Stainless Steel S2316 |
| No. Of Fiber: | 32 | Insertion Loss: | ≤0.20dB |
| Return Loss: | ≥55dB (PC) ≥60dB (APC) | Max Capacity: | 32 Connectors A Time |
| Suitable Machine: | CLX-02E And SEIKOH GIKEN SFP-550 Serials | Material Type: | Harden Stainless Steel S136 |
| First Pass Yield: | 98%～100% | Interference Pass Rate: | ≥98% (100% Typical) |
| APC Return Loss: | ≥60dB | UPC Return Loss: | ≥55dB |
| Typical Insertion Loss: | ≤0.20dB | ||
| Highlight |
32 Ports Polishing Fixture,Hardened Stainless Steel S136 Fiber Optic Polishing Jig,IPC Structure Fiber Optic Connector Polishing Holder |
||
Product Description
The FC PC-32 Port Fiber Optic Connector Polishing Fixture is a high-performance jig designed for precision polishing of FC/PC connectors in fiber optic cable manufacturing.
- Specifically designed for FC/PC connectors
- Easy jig changing with simple, flexible operation
- High efficiency - polishes up to 32 connectors per cycle
- First pass yield for end face quality: 98% to 100%
- IPC structure with independent compression for each connector
- Interference pass rate ≥98% (typically 100% per IEC standards)
- APC return loss ≥60dB, UPC return loss ≥55dB
- Insertion loss ≤0.20dB (typical)
- Replaceable accessories extend service life
- Constructed from high-quality hardened steel S136 for durability
- Compatible with SC, FC, ST, LC jigs and customizable per customer requirements
- Polishing SC connectors for fiber optic patchcord manufacturing
- FC/PC connector polishing for fiber optic pigtails
The IPC mechanism provides precise polishing pressure control for each ferrule, delivering high-quality polishing finish regardless of ferrule length. This system enables polishing from 1 to 36 pieces simultaneously without pressure adjustment requirements. No ferrule length control is needed for re-polishing operations. For SC, LC, FC, and MU connectors, the durable snap-in mechanism reduces cycle time through easier and faster connector installation.
| Parameter | Specification |
|---|---|
| Machine Size | 174 × 174 × 26mm |
| Net Weight | 1.2kg |
| Maximum Capacity | 32 connectors per cycle |
| Application | FC/PC connector polishing |

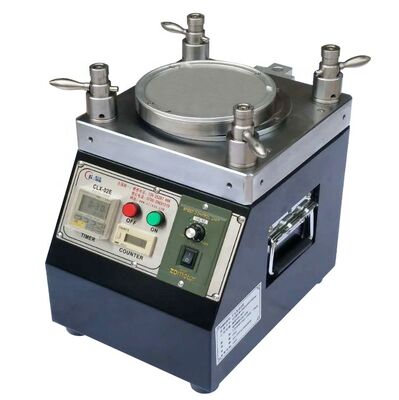

| Suitable Machines | CLX-02E and SEIKOH GIKEN SFP-550 Series |
| Materials | Hardened stainless steel S136 |
- Are you a factory or a trader?
We are a factory. - What is your MOQ?
Minimum order quantity is 1 piece. - Do you provide sample services?
Yes, we provide samples. - How will you ship to me?
We ship via DHL or FedEx in 4 to 6 days, with extensions based on order quantity. - How do we pay?
Payment in advance or multiple methods including T/T and T/L. - How long is your product warranty?
1-year warranty with free repairs (excluding consumables). After warranty, accessories provided at cost. - Do you provide customized services?
Yes, we provide customization according to customer requirements and specifications.
Product Highlights
32-port FC/PC fiber optic polishing fixture. High-efficiency: polishes 32 connectors per cycle with 98-100% first-pass yield. IPC mechanism ensures precision (≤0.20dB IL, ≥55/60dB RL). Durable hardened S136 steel construction. Customizable for SC/LC/ST connectors.
