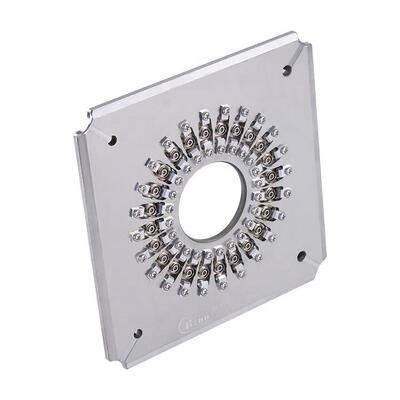

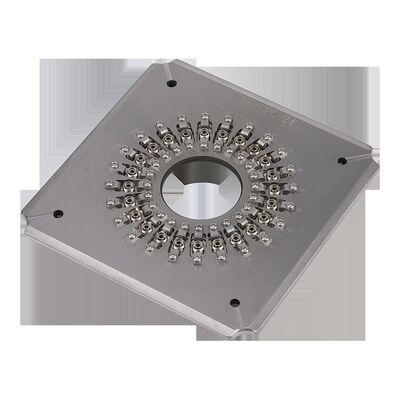

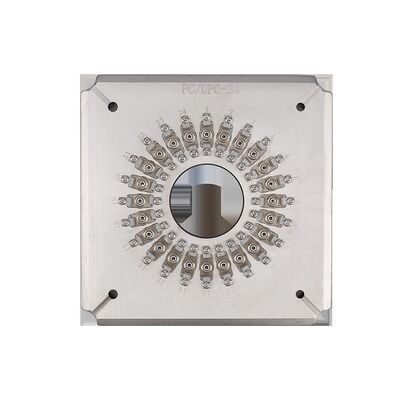

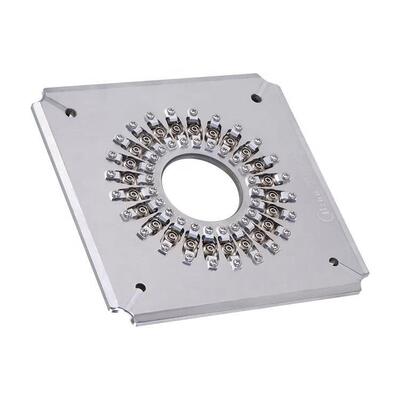

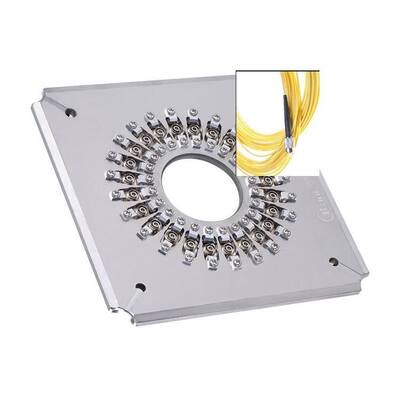

Stainless Steel S136 FC UPC Polishing Fixture with 24/32/36 Connectors Capacity and Independent Compression IPC Structure
Product Details
| Connector Type: | FC UPC | End-face: | UPC |
|---|---|---|---|
| Ferrule Diameter: | 2.5mm | Capacity: | 24/32/36 Positions |
| Insertion Loss: | ≤0.20dB | Return Loss: | ≥55dB (UPC) |
| Material: | Stainless Steel | Dimension: | 174*174*26 Mm |
| Net Weight: | 1.3 Kg | Gross Weight: | 1.5 Kg |
| Suitable Machines: | CLX-02E, SFP-550 | APC Return Loss: | ≥60dB |
| MM Insertion Loss: | ≤0.50dB | MM Return Loss: | ≥30dB |
| Radius Of Curvature: | 5-25mm (UPC), 5-12mm (APC) | ||
| Highlight |
Stainless Steel S136 Polishing Fixture,24/32/36 Connectors Capacity Fiber Optic Polishing Jig,Independent Compression IPC Structure FC UPC Polishing Holder |
||
Product Description
- Specifically designed for FC/UPC (PC) connectors
- Easy jig changes with simple, flexible operation
- High efficiency polishing: 24, 32, or 36 connectors per cycle
- 98%～100% first-pass yield for end face quality
- IPC structure with independent compression for each connector
- ≥98% pass rate with interference (100% typical per IEC standards)
- APC return loss ≥60dB, UPC return loss ≥55dB
- Insertion loss ≤0.20dB (typical)
- Replaceable accessories for extended service life
- Custom designs available for SC, FC, ST, LC connectors
| Model | FC-UPC-24 | FC-UPC-32 | FC-UPC-36 |
|---|---|---|---|
| Brand | CLX | CLX | CLX |
| Connector Type | FC UPC | FC UPC | FC UPC |
| End-face | UPC | UPC | UPC |
| Ferrule Diameter | 2.5mm | 2.5mm | 2.5mm |
| Capacity | 24 positions | 32 positions | 36 positions |
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥55dB (UPC) | ≥55dB (UPC) | ≥55dB (UPC) |
| Application | Polishing assembled FC UPC connectors | Polishing assembled FC UPC connectors | Polishing assembled FC UPC connectors |
| Material | Stainless Steel | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight (kg) | 1.3 kgs / 1.5 kgs | ||
| Suitable machines | CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines | ||
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return loss | ≥55dB | ≥60dB | ≥30dB |
| Parameters | UPC Criterion | APC Criterion |
|---|---|---|
| Radius of Curvature | 5-25mm | 5-12mm |
| Apex Offset | 0-50μm | 0-50μm |
| Fiber Height | -100~+50μm | -100~+50μm |
| Angle | n/a | 8.00+/-0.50° |
Product Highlights
High-efficiency FC/UPC fiber polishing fixture polishes up to 36 connectors per cycle with 98-100% first-pass yield. Made from durable stainless steel, it ensures low insertion loss (≤0.20dB) and high return loss (≥55dB). Repairable design and custom options available.
