48 Ports LC PC Fiber Optic Polishing Fixture with High-Strength Stainless Steel S136 and Insertion Loss ≤0.20dB

1
MOQ
$425.25-436.65
Price
48 Ports LC PC Fiber Optic Polishing Fixture with High-Strength Stainless Steel S136 and Insertion Loss ≤0.20dB
Features Gallery Product Description Request A Quote
Features
Specifications
Weight: 1.2kg
Size: 174mmx174mmx26mm
Material: High-strength Stainless Steel S136
No. Of Fiber: 48
Insertion Loss: ≤0.20dB
Return Loss PC: ≥55dB
Return Loss APC: ≥60dB
Connector Type: LC/PC
Polishing Capacity: 48 Connectors/cycle
First Pass Yield: 98%～100%
Interference Pass Rate: ≥98%
IPC Structure: Independent Compression
Heated Treatment: Yes
Hardened Steel: S136
Jig Compatibility: SC, FC, ST, LC
Highlight:

48 Ports Polishing Fixture

,

High-Strength Stainless Steel S136 Polishing Jig

,

Insertion Loss ≤0.20dB Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuanglixun
Model Number: LC PC-48, LC/PC
Payment & Shipping Terms
Product Description
LC PC Fiber Optic Polishing Plate Fixture
Product Overview
High-performance 48-port fiber optic polishing fixture designed for LC/PC connectors, delivering exceptional end-face quality and operational efficiency in fiber optic patch cord manufacturing.
Key Features
  • Designed specifically for LC/PC connectors with easy jig replacement
  • High-efficiency polishing of up to 48 connectors per cycle
  • First-pass yield for end face quality reaches 98%–100%
  • IPC structure with independent compression for each connector
  • Interference pass rate ≥98% (typically 100%, per IEC standards)
  • Superior optical performance: APC return loss ≥60dB, UPC return loss ≥55dB
  • Insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life significantly
  • Constructed from high-quality, heat-treated S136 hardened steel
  • Customizable for SC, FC, ST, LC connectors and customer requirements
Technical Specifications
Model Number LC/PC(UPC)
Dimensions 174mm × 174mm × 26mm
Net Weight 1.2kg
Application Optic Fiber Patch Cord Manufacturing
Use Case FTTH (Fiber to the Home)
Material High-strength Stainless Steel S136
Number of Fibers 48
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC) / ≥60dB (APC)
Minimum Order Quantity 1 PCS
Product Images

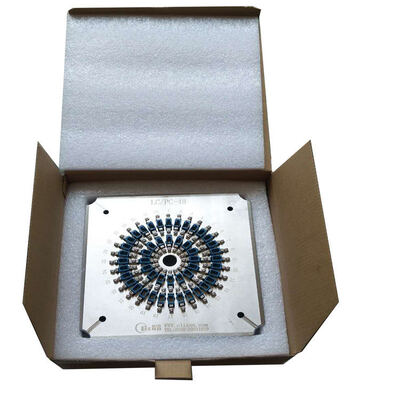

48 Ports LC PC Fiber Optic Polishing Fixture with High-Strength Stainless Steel S136 and Insertion Loss ≤0.20dB 0

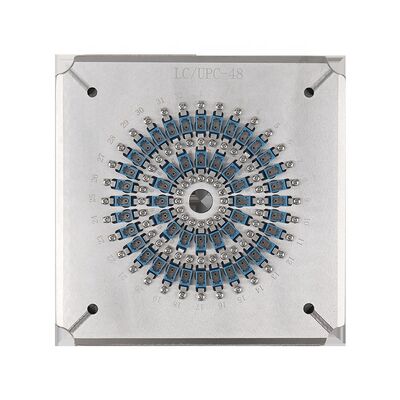

48 Ports LC PC Fiber Optic Polishing Fixture with High-Strength Stainless Steel S136 and Insertion Loss ≤0.20dB 1

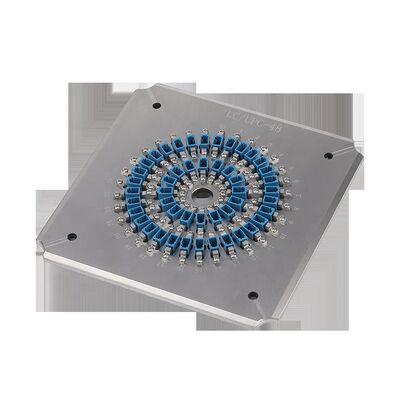

48 Ports LC PC Fiber Optic Polishing Fixture with High-Strength Stainless Steel S136 and Insertion Loss ≤0.20dB 2

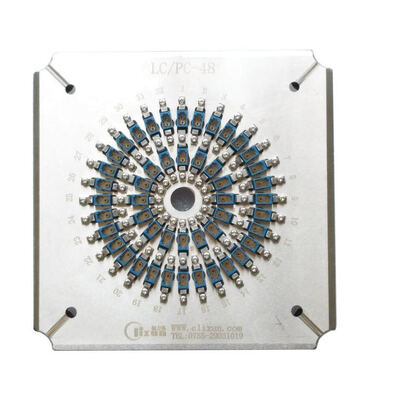

48 Ports LC PC Fiber Optic Polishing Fixture with High-Strength Stainless Steel S136 and Insertion Loss ≤0.20dB 3

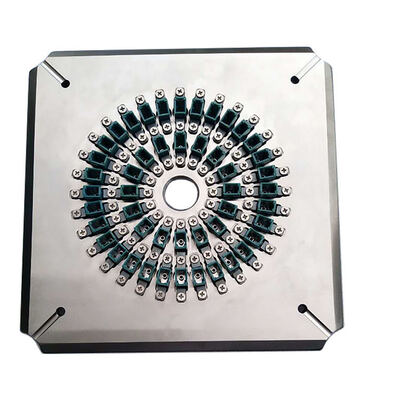

48 Ports LC PC Fiber Optic Polishing Fixture with High-Strength Stainless Steel S136 and Insertion Loss ≤0.20dB 4
48 Ports LC PC Fiber Optic Polishing Fixture with High-Strength Stainless Steel S136 and Insertion Loss ≤0.20dB 5
Shipping Information
We utilize major global shipping carriers including DHL, FEDEX, UPS, EMS, TNT, or Sea freight. Customers may provide their courier account for optimized shipping cost selection based on order quantity.
48 Ports LC PC Fiber Optic Polishing Fixture with High-Strength Stainless Steel S136 and Insertion Loss ≤0.20dB 6
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your minimum order quantity?
MOQ is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
Standard shipping via DHL or FedEx takes 4-6 days, with timing adjusted based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty with free repairs (excluding consumables). After warranty, accessories provided at cost.
Do you provide customized services?
Yes, we provide custom solutions according to customer requirements and specifications.
