ST Fiber Optic 24/32 Connector Polishing Fixture with Hardened Stainless Steel S136 for High Efficiency and Insertion Loss ≤0.20dB

1
MOQ
ST Fiber Optic 24/32 Connector Polishing Fixture with Hardened Stainless Steel S136 for High Efficiency and Insertion Loss ≤0.20dB
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Hardened Stainless Steel S136
Size: 174mmx174mmx26 Mm
Net Weight: 1.2kg
No. Of Fiber: 24,32
Insertion Loss: ≤0.20dB
Return Loss: ≥55dB (PC)
Ferrule Diameter: 2.5mm
Capacity: 24positions, 32positions
End-face Type: PC, APC
Radius Of Curvature: 5-25mm (UPC), 5-12mm (APC)
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Angle: 8.00+/-0.50° (APC)
Gross Weight: 2.0 Kgs
Suitable Machines: CLX-02E, Seikoh Giken SFP-550
Highlight:

Hardened Stainless Steel S136 Polishing Fixture

,

24/32 Connectors in One Cycle Fiber Optic Polishing Jig

,

Insertion Loss ≤0.20dB ST Connector Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuanglixun
Model Number: ST-PC, ST-PC
Payment & Shipping Terms
Product Description

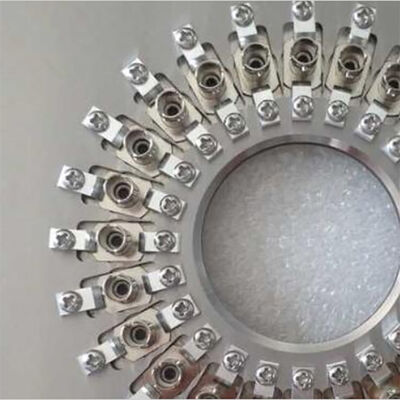

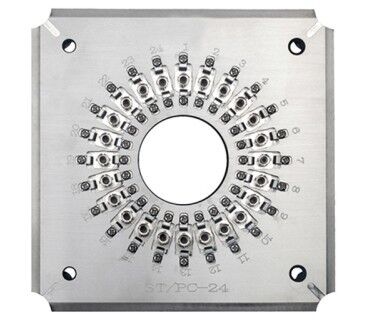

ST Fiber Optic 24/32 Connector Polishing Fixture
  • Designed specifically for ST-PC connectors
  • Easy to change jigs with simple, flexible operation
  • High efficiency: polishes up to 24 or 32 connectors in one cycle
  • First pass yield for end face quality reaches 98%–100%
  • IPC structure with independent compression for each connector
  • Pass rate with interference ≥98% (typically 100%, per IEC standards)
  • PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
  • Constructed from high-quality hardened steel S136 for durability
  • Available with jigs for SC, FC, ST, LC connectors and custom designs
ST Fiber Optic 24/32 Connector Polishing Fixture with Hardened Stainless Steel S136 for High Efficiency and Insertion Loss ≤0.20dB 0 ST Fiber Optic 24/32 Connector Polishing Fixture with Hardened Stainless Steel S136 for High Efficiency and Insertion Loss ≤0.20dB 1

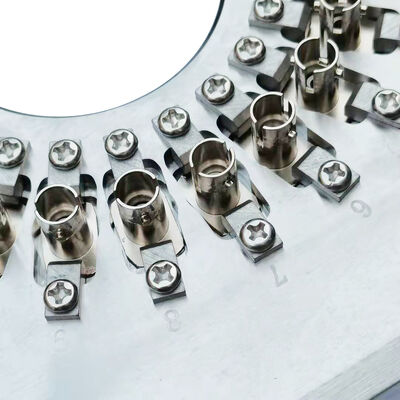

Technical Specifications
Model ST-PC-24 ST-PC-32 ST-APC-26
Brand CLX CLX CLX
Connector Type ST PC ST PC ST APC
End-face PC PC APC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 26 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥60dB (APC)
Application Polishing assembled ST PC connectors Polishing assembled ST PC connectors Polishing assembled ST APC connectors
Material Stainless Steel S136
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
ST Fiber Optic 24/32 Connector Polishing Fixture with Hardened Stainless Steel S136 for High Efficiency and Insertion Loss ≤0.20dB 2
Get a Free Quotation via Us >>> GO
Polishing Effect Analysis
Polished Connector Ferrule Faces
ST Fiber Optic 24/32 Connector Polishing Fixture with Hardened Stainless Steel S136 for High Efficiency and Insertion Loss ≤0.20dB 3
High-quality end-face polishing with no white spots or scratches. The fiber edge is clearly visible and well-defined.
Insertion Loss & Return Loss Test Results
ST Fiber Optic 24/32 Connector Polishing Fixture with Hardened Stainless Steel S136 for High Efficiency and Insertion Loss ≤0.20dB 4
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Geometry Test Results
ST Fiber Optic 24/32 Connector Polishing Fixture with Hardened Stainless Steel S136 for High Efficiency and Insertion Loss ≤0.20dB 5
No. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
Company Profile
ST Fiber Optic 24/32 Connector Polishing Fixture with Hardened Stainless Steel S136 for High Efficiency and Insertion Loss ≤0.20dB 6
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is an optical communications equipment company integrating research and development, production, after-sales service and technical services. We not only sell high-quality products and provide good after-sales service, but also provide free technical support to our customers. For the technical problems encountered in the production of optical fiber connectors, we provide effective solutions.
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
MOQ 1 piece.
Do you provide sample services?
Yes, we will provide samples.
How will you ship to me?
We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
How do we pay?
Book in advance or multiple payment methods such as T/T and T/L.
How long is your product warranty?
The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and description.
