Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors

Brand Name: chuanglixun
Model Number: SC/PC,SC/UPC, SC/PC,SC/UPC
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Tags

LC connector fiber polishing kit

Square Polishing Fixture

LC connector Polishing Fixture

Product Details

Material: Hardened Stainless Steel S136 Size: 174mmx174mmx26mm
Net Weight: 1.5kg No. Of Fiber: 24,32,36
Insertion Loss: ≤0.20dB Return Loss: ≥55dB (PC), ≥60dB (APC)
Ferrule Diameter: 2.5mm Capacity: 24positions, 32positions, 36positions
End-face: PC Radius Of Curvature: 5-25mm (UPC), 5-12mm (APC)
Apex Offset: 0-50μm Fiber Height: -100~+50μm
Angle: 8.00+/-0.50° (APC) First Pass Yield: 98%～100%
Interference Pass Rate: ≥98%
Highlight

Hardened Stainless Steel S136 Polishing Fixture

,

24 32 36 Ports Fiber Optic Polishing Jig

,

Insertion Loss ≤0.20dB SC UPC Polishing Holder

Product Description

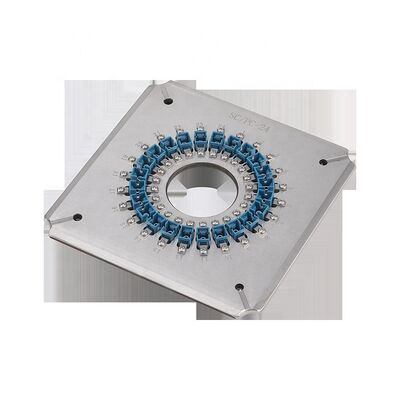

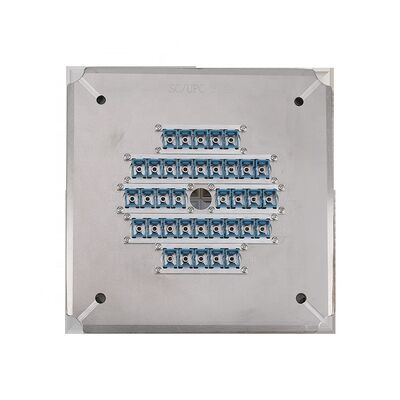

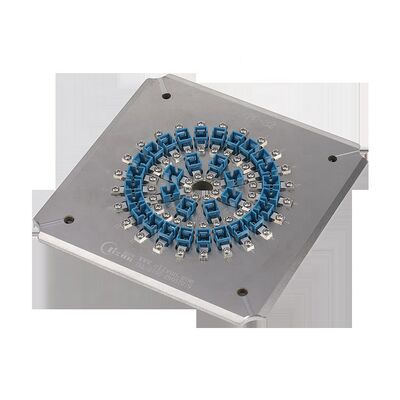

Fiber Optic SC UPC Polishing Fixture
This high-stability fiber polishing fixture delivers exceptional surface quality for SC, FC, ST, and LC connectors. Manufactured from heat-treated hardened steel S2316/S136 for extended service life.
Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 0
Key Features
  • Designed specifically for SC/PC connectors with easy jig changing
  • High efficiency: polishes 24, 32, or 36 connectors per cycle
  • First-pass yield reaches 98-100% for end face quality
  • IPC structure with independent compression for each connector
  • Excellent performance: APC return loss ≥60dB, UPC return loss ≥55dB
  • Insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
  • Custom configurations available for SC, FC, ST, LC connectors
Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 1 Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 2 Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 3
Technical Specifications
Model SC-PC-24 SC-PC-32 SC-PC-36
Brand CLX CLX CLX
Connector Type SC PC SC PC SC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (APC) ≥55dB (APC) ≥55dB (PC)
Material Stainless Steel S136
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Get a Free Quotation
Polishing Performance Results
Polished Connector Ferrule Faces:
Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 4
High-quality end-face polishing with no white spots, no scratches, and clearly visible fiber edges.
Insertion Loss & Return Loss Test Results:
Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 5
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Geometry Test Results:
Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 6
Parameters UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
Manufacturer Profile
Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 7
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. has been a leading optical communications equipment manufacturer since 2010. We specialize in research, development, production, and technical services for fiber optic connectors, providing comprehensive solutions and exceptional after-sales support.
Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 8 Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 9 Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 10 Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 11 Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 12 Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 13 Get a Free Quotation
Frequently Asked Questions
Are you a factory or a trader?
We are the factory manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples for evaluation.
How will you ship to me?
We ship via DHL or FedEx in 4-6 days, with extended timelines based on order quantity.
How do we pay?
We accept advance booking and multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty with free repairs (excluding consumables). After warranty, cost-price accessories continue to be available.
Do you provide customized services?
Yes, we provide custom solutions according to customer requirements and specifications.
Hardened Stainless Steel S136 Fiber Optic Polishing Jig with 24 32 36 Ports and Insertion Loss ≤0.20dB for SC UPC Connectors 14

Product Highlights

High-efficiency SC/PC fiber polishing fixture with hardened S136 steel for durability. Polishes 24-36 connectors per cycle with 98-100% first-pass yield. Meets IEC standards: ≤0.20dB insertion loss, ≥55dB return loss. Customizable for SC/FC/ST/LC connectors.
