24-Position LC APC Polishing Fixture with Stainless Steel S136 for High-Quality End-Face Polishing

1
MOQ
$299.15-319.65
Price
24-Position LC APC Polishing Fixture with Stainless Steel S136 for High-Quality End-Face Polishing
Features Gallery Product Description Request A Quote
Features
Specifications
Connector Type: LC APC Connector
Gross Weight: 2 Kgs
Package Dimensions: 220*220*100mm
Max Capacity: 24 Positions For LC APC Connectors
Dimensions: 174*174*26mm
Material: Stainless Steel S136
Ferrule Diameter: 1.25 Mm
Net Weight: 1.5 Kgs
End-face Type: APC
Insertion Loss: ≤0.20dB
Return Loss: ≥60dB
Radius Of Curvature: 5-12mm
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Angle: 8.00+/-0.50°
Highlight:

24 positions Polishing Fixture

,

Stainless Steel S136 Fiber Optic Polishing Jig

,

High-quality end-face Optical Fiber Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Model Number: LC-APC-24
Payment & Shipping Terms
Product Description
LC APC-24 Port Connector Fiber Optic Four Corner Pressure LC UPC Polishing Jig
Professional optical fiber polishing fixture designed for high-efficiency LC APC connector polishing with precise pressure control.

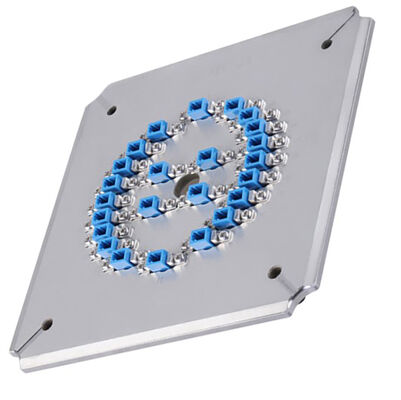

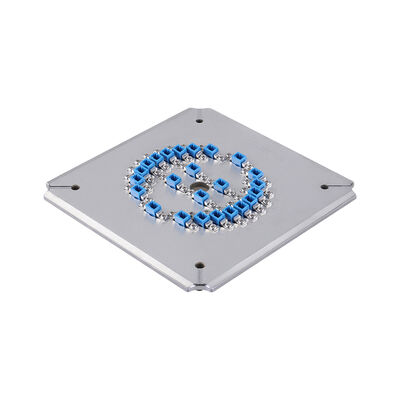

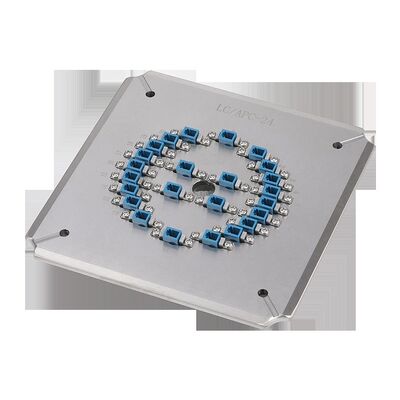

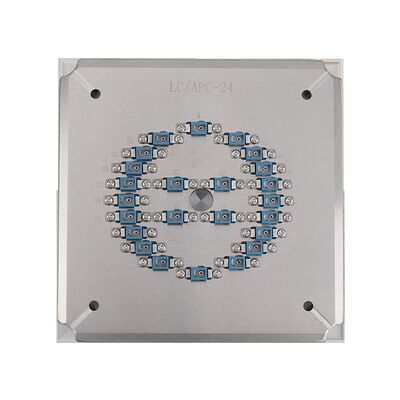

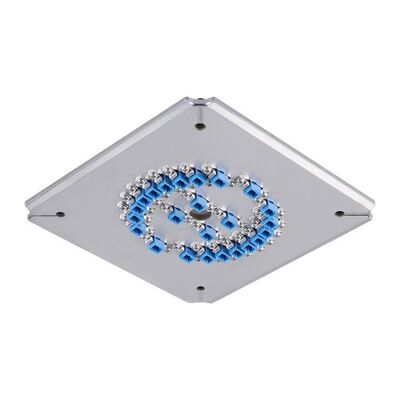

24-Position LC APC Polishing Fixture with Stainless Steel S136 for High-Quality End-Face Polishing 0
Key Features
  • Designed specifically for LC APC connector polishing
  • Plug-in type jig for simple and flexible operation
  • High efficiency: polishes 20-40 LC APC connectors per cycle
  • Delivers excellent connector end-face polishing quality
24-Position LC APC Polishing Fixture with Stainless Steel S136 for High-Quality End-Face Polishing 1
Applications
  • Polishing LC APC connectors on patch cords
  • LC APC connector polishing on pigtails
  • Polishing LC APC connectors on attenuators
Product Description
The IPC mechanism offers precise polishing pressure control for each ferrule being polished and provides a high quality polishing finish regardless of ferrule length. It enables the user to polish from 1 piece up to 36 pieces at once without adjusting polishing pressure. Also there is no need to control ferrule length in case of re-polishing. For SC, LC, FC, MU connectors, we use durable snap-in mechanism, which achieves reduced cycle time by easier and faster installation of connectors.
Product Parameters
Model LC-APC-24 LC-PC-40 LC-PC-48
Brand CLIXUN
Connector Type LC APC LC UPC LC UPC
End-face APC UPC UPC
Ferrule Diameter 1.25 mm
Capacity 24 positions 40 positions 48 positions
Application Polishing assembled LC APC connectors Polishing assembled LC PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm 174*174*26 mm
Net Weight / Gross Weight (kg) 1.5 kgs / 2.0 kgs
Suitable machines CLX-02E & Seikoh Giken SFP-550 polishing machine and similar machines
General Size 32 Port FC PC Patch cords Pigtail Fiber Optic Cable Polishing Holder
24-Position LC APC Polishing Fixture with Stainless Steel S136 for High-Quality End-Face Polishing 2
Get a free Quotation via Us >>> GO
Polishing Effect
Polished Connector Ferrule Faces:
24-Position LC APC Polishing Fixture with Stainless Steel S136 for High-Quality End-Face Polishing 3
High-quality end-face polishing, no white spots, no scratches, the fiber edge is clearly visible
ILRL Test Result:
24-Position LC APC Polishing Fixture with Stainless Steel S136 for High-Quality End-Face Polishing 4
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
Geometry Test Result:
24-Position LC APC Polishing Fixture with Stainless Steel S136 for High-Quality End-Face Polishing 5
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
