Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss

1
MOQ
Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Production Machine
Size: 174mm*174mm*26mm
Material: Hardened Stainless Steel S2316
Net Weight: 1.3kg
No. Of Fiber: 24/32/36
Insertion Loss: ≤0.20dB
Return Loss: ≥55dB (PC), ≥60dB (APC)
Connector Type: FC PC
End-face: PC
Ferrule Diameter: 2.5mm
Capacity: 24/32/36 Positions
Radius Of Curvature: 5-25mm (UPC), 5-12mm (APC)
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Angle: 8.00+/-0.50° (APC)
Highlight:

Hardened Stainless Steel S2316 Polishing Fixture

,

24/32/36 Connectors Capacity Fiber Optic Polishing Jig

,

Insertion Loss ≤0.20dB FC Connector Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Chuanglixun
Certification: RoHS
Model Number: FC/PC, FC/PC FC/UPC
Payment & Shipping Terms
Product Description
Fiber Optic Cable Connector FC UPC Patchcord Polish Jig FC Connector Polishing Fixture
This high-stability fiber polishing fixture delivers exceptional surface quality for FC UPC connectors. Manufactured from premium hardened steel S2316 with heat treatment, it ensures long service life and reliable performance.

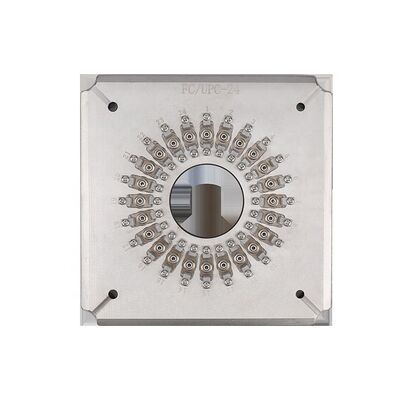

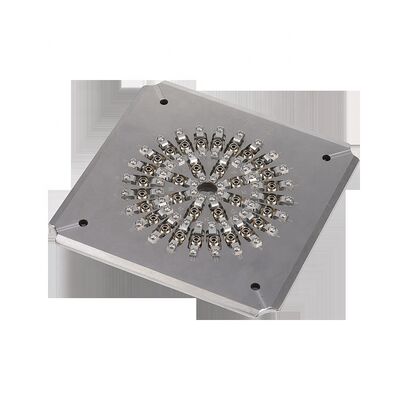

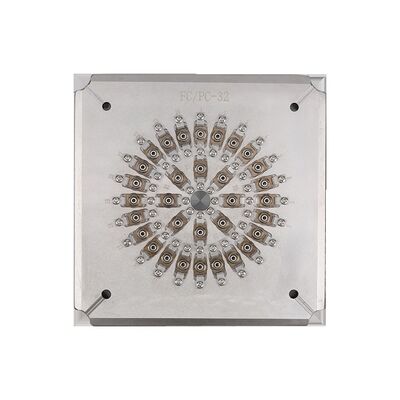

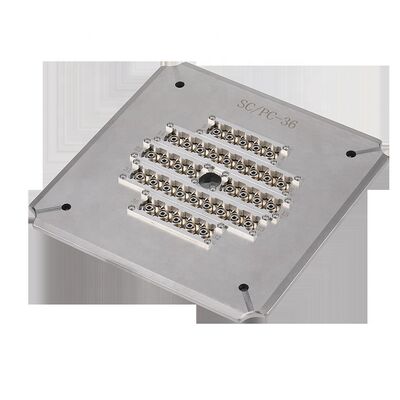

Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss 0 Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss 1 Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss 2 Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss 3
Key Features
  • Specifically designed for FC/PC connectors
  • Easy jig changing with simple, flexible operation
  • High efficiency: polishes 24, 32, or 36 connectors per cycle
  • First-pass yield for end face quality reaches 98%–100%
  • IPC structure with independent compression for each connector
  • Pass rate with interference ≥98% (typically 100% per IEC standards)
  • PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life significantly
Technical Specifications
Model FC-PC-24 FC-PC-32 FC-PC-36
Brand CLX CLX CLX
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled FC PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.3 kg / 1.5 kg
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Get a free Quotation via Us >>>GO
Polishing Performance Results
Polished Connector Ferrule Faces

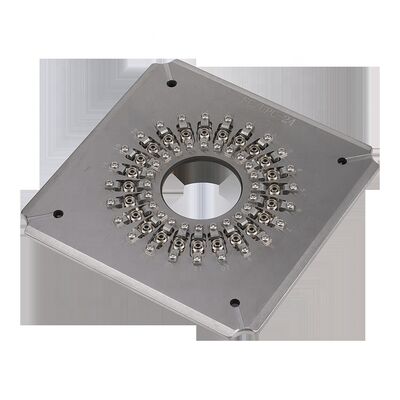

Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss 4
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges
Insertion Loss & Return Loss Test Results
Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss 5
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Geometry Test Results
Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss 6
Parameters UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
Company Profile
Hardened Stainless Steel S2316 Fiber Optic Polishing Jig for FC Connectors with 24/32/36 Capacity and ≤0.20dB Insertion Loss 7
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd., established in 2010, is an optical communications equipment company integrating research and development, production, after-sales service, and technical services. We provide high-quality products, excellent after-sales service, and free technical support with effective solutions for technical problems in fiber connector production.
Frequently Asked Questions
  • Are you a factory or a trader? – We are a factory.
  • What is your MOQ? – MOQ 1 piece.
  • Do you provide sample services? – Yes, we provide samples.
  • How will you ship to me? – We ship via DHL or FedEx in 4 to 6 days, extended based on order quantity.
  • How do we pay? – Advance booking or multiple payment methods including T/T and T/L.
  • How long is your product warranty? – 1-year warranty with free repairs (excluding consumables), with cost-based accessory support after warranty.
  • Do you provide customized services? – Yes, we provide customized services according to customer requirements.
