Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate

1
MOQ
€185.53-200.75
Price
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Production Machine
Net Weight: 0.5kg
Material: Harden Stainless Steel
Dimensions: 110*5mm
No. Of Fiber: 16
3D Pass Rate: 100%
Insertion Loss: ≤0.20dB
Return Loss: ≥55dB (PC) ≥60dB (APC)
Connector Type: SC,FC,LC,ST (PC/APC)

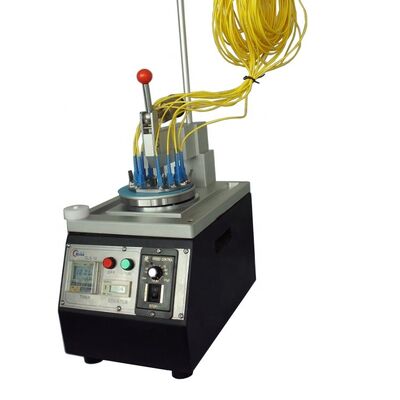

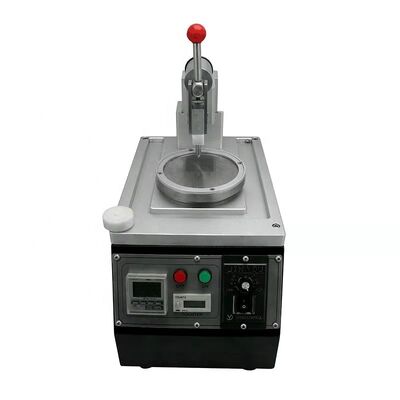

Polishing Machine Type: Center Pressure Polish Machine
Number Of Fiber Cores: 16
Model: LC/PC LC/UPC
Ferrule End-face: Excellent Polishing Quality
Geometry Dimensions: Comply With IEC Standards
First Pass Yield: 100%
Highlight:

16 Port LC PC Polish Polishing Fixture

,

Harden Stainless Steel Fiber Optic Polishing Jig

,

100% 3D Pass Rate Optical Fiber Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuanglixun
Model Number: LC/PC
Payment & Shipping Terms
Product Description
Efficient And Durable Fiber Optic 16 Port LC PC Polish Jig
This high-stability fiber polishing fixture delivers excellent surface quality for patch cord manufacturing. Constructed from heat-treated hardened steel S2316, it ensures long service life and reliable performance.
Key Features
  • Designed specifically for LC/PC(UPC) connector polishing
  • Easy jig changing with simple, flexible operation
  • High efficiency - polishes up to 16 ferrules in one cycle
  • Excellent ferrule end-face polishing quality
  • Geometry dimensions comply with IEC standards
  • 100% first pass yield for end face quality
  • High-quality stainless steel materials with heat treatment for precision and durability
  • Custom design services for non-standard ferrule grinding requirements
Technical Specifications
Model LC/PC, LC/UPC
Net Weight 0.5kg
Compatible Connector Types SC, FC, LC, ST (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 16
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty Period 2 years

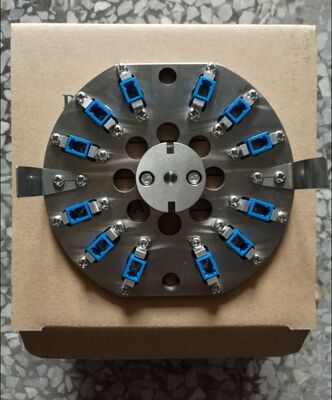

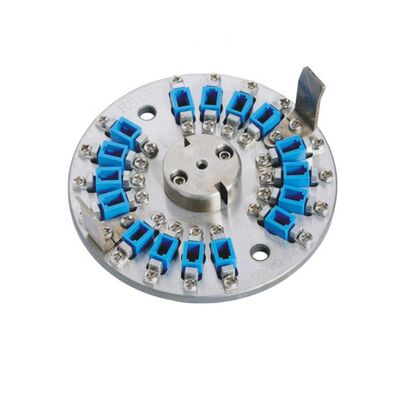

Product Images
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 0
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 1
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 2

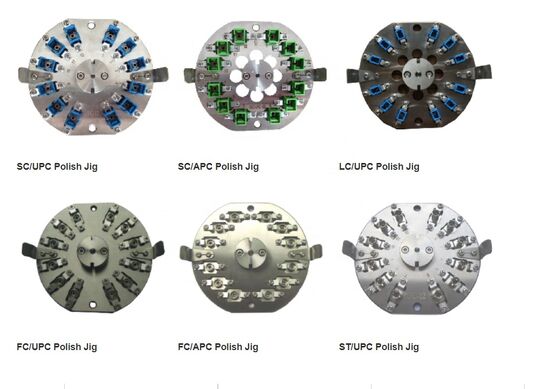

Available Models
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 3
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 4
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 5
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 6
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 7
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 8
Shipping Information
We utilize major global shipping carriers including DHL, FEDEX, UPS, EMS, TNT, or Sea freight. You may provide your courier account, and we will select the most cost-effective shipping method based on your order quantity.
Efficient 16 Port LC PC Polish Jig Harden Stainless Steel Fiber Optic Polishing Fixture with 100% 3D Pass Rate 9
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We typically ship within 4 to 6 days via DHL or FedEx, with timing adjusted based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
The warranty period is 1 year (providing free repairs, excluding consumables). After warranty, we continue to provide accessories at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and specifications.
