24-Port Fiber Optic Polishing Jig with 2.5mm Ferrule Holder and Stainless Steel S136 Construction for FTTH Use
Product Details
| Material: | Stainless Steel S136 | Dimensions: | 174mm X 174mm X 26mm |
|---|---|---|---|
| Weight: | 1.2kg | No. Of Fiber: | 24 |
| Ferrule Holder Size: | 2.5mm | Connector Type: | FC PC |
| End-face: | PC | Ferrule Diameter: | 2.5mm |
| Capacity: | 24 Positions | Insertion Loss: | ≤0.20dB |
| Return Loss: | ≥55dB (PC) | Polishing Efficiency: | 98%～100% First Pass Yield |
| Interference Pass Rate: | ≥98% | Suitable Machines: | CLX-02E, Seikoh Giken SFP-550 |
| Net Weight: | 1.5 Kgs | ||
| Highlight |
Stainless Steel S136 Polishing Fixture,24-Port Fiber Optic Polishing Jig,2.5mm Ferrule Holder Polishing Holder |
||
Product Description

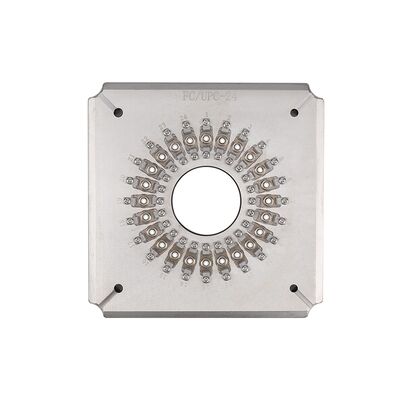

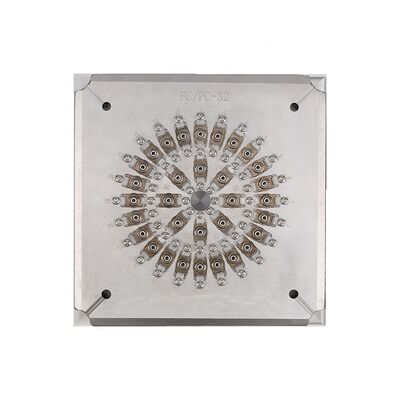

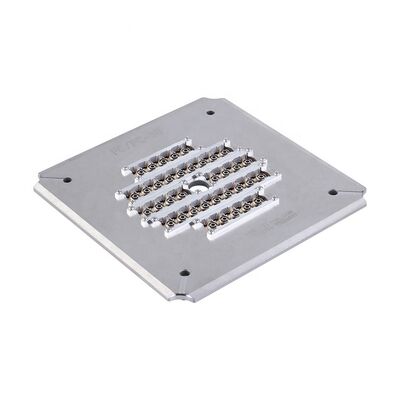

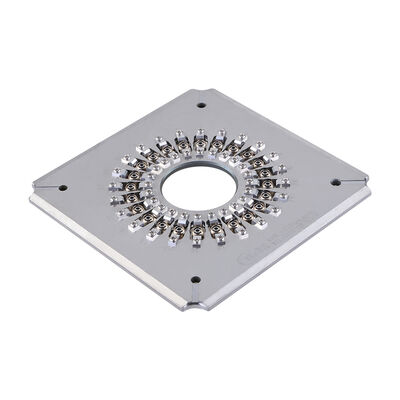

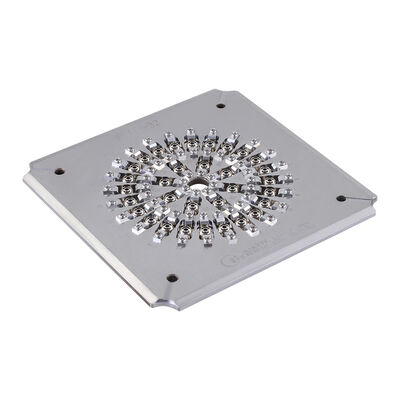

High-precision 2.5mm ferrule holder with dimensions 174×174×26mm, specifically designed for FTTH applications. Constructed from durable stainless steel S136 for long-lasting performance.
This high-stability fiber polishing fixture delivers exceptional surface quality and precision. Manufactured from hardened steel S2316 with heat treatment for extended service life. Compatible with various connector types including SC, FC, ST, and LC, with custom configurations available.
- Designed specifically for FC/PC connectors
- Easy jig replacement with simple, flexible operation
- High efficiency: polishes up to 24, 32, or 36 connectors per cycle
- First-pass yield for end-face quality reaches 98-100%
- IPC structure with independent compression for each connector
- Interference pass rate ≥98% (typically 100% per IEC standards)
- PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
- Replaceable accessories to extend service life
| Model | FC-PC-24 | FC-PC-32 | FC-PC-36 |
|---|---|---|---|
| Brand | CLX | CLX | CLX |
| Connector Type | FC PC | FC PC | FC PC |
| End-face | PC | PC | PC |
| Ferrule Diameter | 2.5mm | 2.5mm | 2.5mm |
| Capacity | 24 positions | 32 positions | 36 positions |
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥55dB (PC) | ≥55dB (PC) | ≥55dB (PC) |
| Application | Polishing assembled FC PC connectors | ||
| Material | Stainless Steel | ||
| Dimension (L×W×H) | 174×174×26 mm | ||
| Net Weight / Gross Weight | 1.5 kg / 2.0 kg | ||
| Suitable Machines | CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar equipment | ||
High-quality end-face polishing with no white spots or scratches. Clear fiber edge visibility for optimal performance.
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return Loss | ≥55dB | ≥60dB | ≥30dB |
| Parameter | UPC Criterion | APC Criterion |
|---|---|---|
| Radius of Curvature | 5-25mm | 5-12mm |
| Apex Offset | 0-50μm | 0-50μm |
| Fiber Height | -100~+50μm | -100~+50μm |
| Angle | n/a | 8.00+/-0.50° |
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company integrating research and development, production, after-sales service, and technical services. We provide high-quality products, comprehensive after-sales support, and free technical assistance for fiber connector production challenges.
We are a factory.
Minimum order quantity is 1 piece.
Yes, we provide samples.
We ship via DHL or FedEx within 4-6 days, with timing adjusted based on order quantity.
Payment in advance or multiple payment methods including T/T and T/L.
1-year warranty with free repairs (excluding consumables). After warranty, accessories provided at cost.
Yes, we provide customized services according to customer requirements.
Product Highlights
24-port FC/UPC fiber polishing fixture for FTTH. Made of hardened stainless steel S136 for durability. Polishes 24 connectors per cycle with 98-100% first-pass yield, ≤0.20dB insertion loss, ≥55dB return loss. Custom options available.
