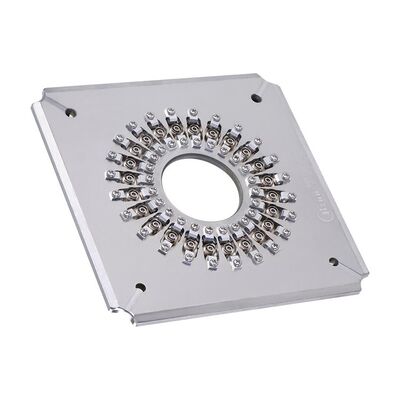

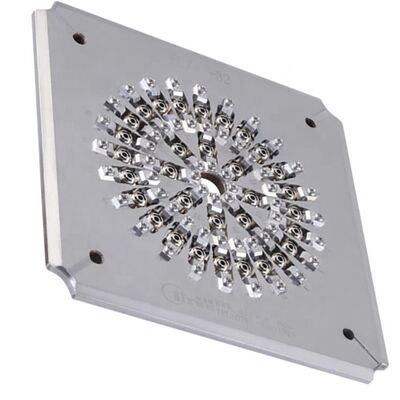

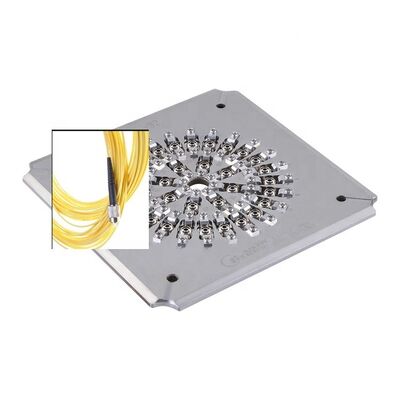

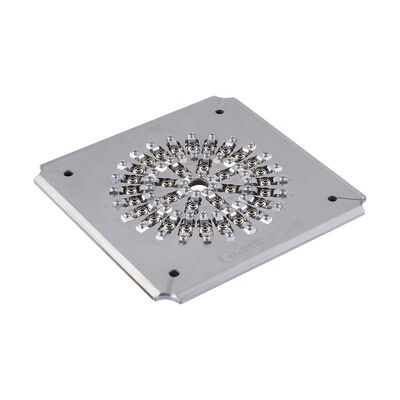

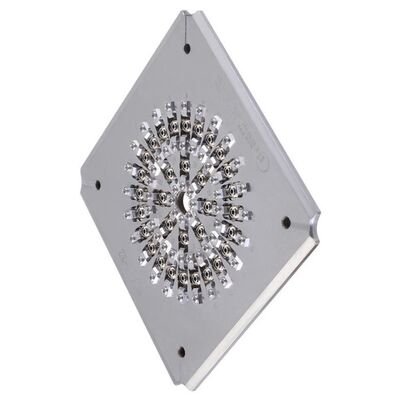

Hardened Stainless Steel S136 32 Core Connector Polishing Fixture for High-Quality Polished End Faces
Product Details
| Weight: | 1.3kg | Material: | Hardened Stainless Steel S136 |
|---|---|---|---|
| Dimensions: | 174mm*174mm*5.1mm | No. Of Fiber: | 32 |
| Ferrule Diameter: | 2.5mm | Capacity: | 32 Positions |
| Insertion Loss: | ≤0.20dB | Return Loss: | ≥55dB (PC) |
| Radius Of Curvature: | 5-25mm | Apex Offset: | 0-50μm |
| Fiber Height: | -100~+50μm | Angle: | 8.00+/-0.50° |
| End-face: | PC | Connector Type: | FC PC |
| Net Weight: | 1.5 Kgs | ||
| Highlight |
Hardened Stainless Steel S136 Polishing Fixture,32 Core Connector Fiber Polishing Jig,High-Quality Polished End Faces Optical Fiber Polishing Holder |
||
Product Description
- Specifically designed for FC/PC connectors
- Easy jig replacement with simple, flexible operation
- High efficiency: polishes up to 24, 32, or 36 connectors per cycle
- First-pass yield for end face quality reaches 98%–100%
- IPC structure with independent compression for each connector
- Interference pass rate ≥98% (typically 100% per IEC standards)
- PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
- Replaceable accessories to extend service life
| Model | FC-PC-24 | FC-PC-32 | FC-PC-36 |
|---|---|---|---|
| Brand | CLX | CLX | CLX |
| Connector Type | FC PC | FC PC | FC PC |
| End-face | PC | PC | PC |
| Ferrule Diameter | 2.5mm | 2.5mm | 2.5mm |
| Capacity | 24 positions | 32 positions | 36 positions |
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥55dB (PC) | ≥55dB (PC) | ≥55dB (PC) |
| Application | Polishing assembled FC PC connectors | Polishing assembled FC PC connectors | Polishing assembled FC PC connectors |
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return Loss | ≥55dB | ≥60dB | ≥30dB |
| No. | Parameters | UPC Criterion | APC Criterion |
|---|---|---|---|
| 1 | Radius of Curvature | 5-25mm | 5-12mm |
| 2 | Apex Offset | 0-50μm | 0-50μm |
| 3 | Fiber Height | -100~+50μm | -100~+50μm |
| 4 | Angle | n/a | 8.00+/-0.50° |
Product Highlights
32-core FC UPC fiber polishing fixture delivers high-quality end faces with ≤0.20dB insertion loss and ≥55dB return loss. Made from hardened stainless steel for durability, it polishes 32 connectors per cycle with 98-100% first-pass yield. Custom options available.
