24 Core LC-APC Polishing Fixture with Stainless Steel S2316 for High Efficiency Fiber Optic Polishing

1
MOQ
CN¥2,063.12-2,204.50
Price
24 Core LC-APC Polishing Fixture with Stainless Steel S2316 for High Efficiency Fiber Optic Polishing
Features Gallery Product Description Request A Quote
Features
Specifications
No. Of Fiber: 24
Weight: 1.5kg
Dimensions: 174mm*174mm*26mm
Connector Type: LC APC
End-face: APC
Ferrule Diameter: 1.25mm
Capacity: 24 Positions
Insertion Loss: ≤0.20dB
Return Loss: ≥60dB (PC)
Material: Stainless Steel
Net Weight: 1.3 Kgs
Gross Weight: 1.5 Kgs
Radius Of Curvature: 5-25mm
Apex Offset: 0-50μm
Fiber Height: -100~+50μm
Highlight:

24 Core Polishing Fixture

,

Stainless Steel S2316 Fiber Optic Polishing Jig

,

High Efficiency LC-APC Polishing Holder
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuanglixun
Model Number: LC-APC-24, LC/APC24
Payment & Shipping Terms
Product Description

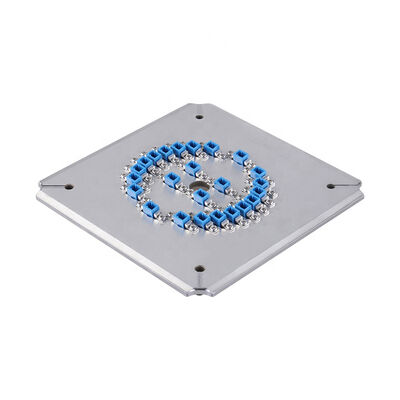

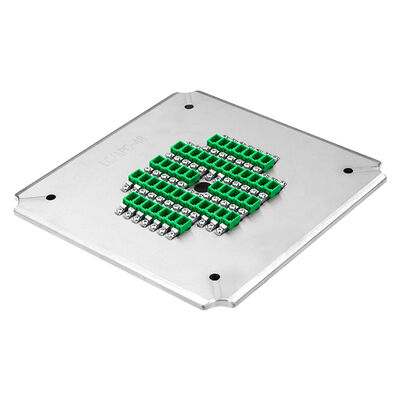

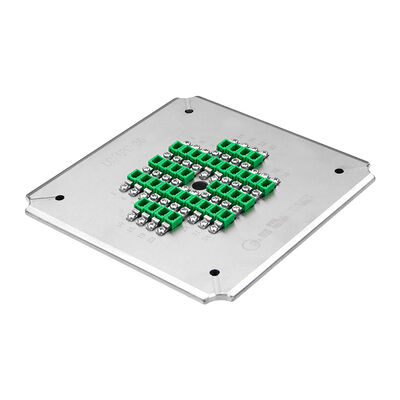

24 Core LC-APC Polishing Fixture
High-performance fiber polishing fixture designed for LC-APC connectors, offering exceptional stability and surface quality for optical polishing applications.
24 Core LC-APC Polishing Fixture with Stainless Steel S2316 for High Efficiency Fiber Optic Polishing 0 24 Core LC-APC Polishing Fixture with Stainless Steel S2316 for High Efficiency Fiber Optic Polishing 1 24 Core LC-APC Polishing Fixture with Stainless Steel S2316 for High Efficiency Fiber Optic Polishing 2 24 Core LC-APC Polishing Fixture with Stainless Steel S2316 for High Efficiency Fiber Optic Polishing 3
Key Features
  • Specifically designed for LC/APC connectors
  • Easy jig replacement with simple, flexible operation
  • High efficiency: polishes 24, 36, or 48 connectors per cycle
  • First-pass yield for end face quality reaches 98%-100%
  • IPC structure with independent compression for each connector
  • APC return loss ≥60dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
Technical Specifications
Model LC-APC-24 LC-APC-36 LC-APC-48
Brand CLX CLX CLX
Connector Type LC APC LC APC LC APC
End-face APC APC APC
Ferrule Diameter 1.25mm 1.25mm 1.25mm
Capacity 24 positions 36 positions 48 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥60dB (PC) ≥60dB (PC) ≥60dB (PC)
Application Polishing assembled LC APC connectors Polishing assembled LC APC connectors Polishing assembled LC APC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.3 kgs / 1.5 kgs
Suitable Machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Get a free Quotation via Us >>>GO
Polishing Performance
Polished Connector Ferrule Faces
24 Core LC-APC Polishing Fixture with Stainless Steel S2316 for High Efficiency Fiber Optic Polishing 4
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.
Insertion Loss & Return Loss Test Results
24 Core LC-APC Polishing Fixture with Stainless Steel S2316 for High Efficiency Fiber Optic Polishing 5
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Geometry Test Results
24 Core LC-APC Polishing Fixture with Stainless Steel S2316 for High Efficiency Fiber Optic Polishing 6
Parameter UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
