40 Port Fiber Optic Polishing Jig with Stainless Steel S136 for Insertion Loss ≤0.20dB

1
MOQ
CN¥2,935.40-3,105.20
Price
40 Port Fiber Optic Polishing Jig with Stainless Steel S136 for Insertion Loss ≤0.20dB
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel S136
Dimensions: 174mmx174mmx7.2mm
Net Weight: 1.5kg
Insertion Loss: ≤0.20dB
Return Loss: ≥55dB
No. Of Fiber: 40
Fiber Ferrule Diameter: 2.5mm
SM/UPC Insertion Loss: ≤0.20dB
SM/APC Insertion Loss: ≤0.20dB
MM/UPC Insertion Loss: ≤0.50dB
SM/UPC Return Loss: ≥55dB
SM/APC Return Loss: ≥60dB
MM/UPC Return Loss: ≥30dB
Radius Of Curvature: 5-25mm (UPC), 5-12mm (APC)
Apex Offset: 0-50μm
Highlight:

40 Port Polishing Fixture

,

Stainless Steel S136 Fiber Optic Polishing Jig

,

Insertion Loss ≤0.20dB Fiber Ferrule Polishing Fixture
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: chuanglixun
Model Number: PC-40, PC-40
Payment & Shipping Terms
Product Description

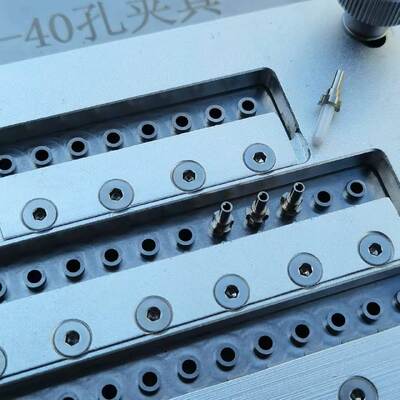

ST FC SC Patch Cord 2.5mm Ferrule 40 Port Fiber Optical Polish Jig Polishing Fixture
This high-stability fiber polishing fixture delivers exceptional surface quality for optical connector polishing applications. Manufactured from premium hardened steel S2316 with heat treatment for extended service life.
Product Characteristics
  • Designed for FC, SC, ST, LC/PC 2.5mm Fiber Optic Connectors Ferrule
  • Easy to change jigs with simple, flexible operation
  • High efficiency - polishes up to 40 connector ferrules in one cycle
  • First pass yield for end face quality reaches 98%～100%
  • IPC structure with independent compression for each connector
  • UPC return loss ≥55dB, Insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life significantly
  • Custom designs available for SC, FC, ST connectors per customer requirements
40 Port Fiber Optic Polishing Jig with Stainless Steel S136 for Insertion Loss ≤0.20dB 0 40 Port Fiber Optic Polishing Jig with Stainless Steel S136 for Insertion Loss ≤0.20dB 1
Technical Specifications
Model PC
Size 174mm x 174mm x 7.2mm
Net Weight 1.5kg
Packaged Weight 1.7kg
Materials Stainless Steel S136
Application Hold Fiber Optic Connectors Ferrule and Polishing
Fiber Ferrule Diameter 2.5mm
Insertion Loss ≤0.20dB
Return Loss ≥55dB
Number of Fibers 40
MOQ 1 Piece
40 Port Fiber Optic Polishing Jig with Stainless Steel S136 for Insertion Loss ≤0.20dB 2
Get a Free Quotation via Us >>> GO
Polishing Effect
Polished Connector Ferrule Faces
40 Port Fiber Optic Polishing Jig with Stainless Steel S136 for Insertion Loss ≤0.20dB 3
High-quality end-face polishing with no white spots, no scratches, and clearly visible fiber edges.
ILRL Test Results
40 Port Fiber Optic Polishing Jig with Stainless Steel S136 for Insertion Loss ≤0.20dB 4
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥60dB ≥30dB
Geometry Test Results
40 Port Fiber Optic Polishing Jig with Stainless Steel S136 for Insertion Loss ≤0.20dB 5
No. Parameters UPC Criterion APC Criterion
1 Radius of Curvature 5-25mm 5-12mm
2 Apex Offset 0-50μm 0-50μm
3 Fiber Height -100~+50μm -100~+50μm
4 Angle n/a 8.00+/-0.50°
