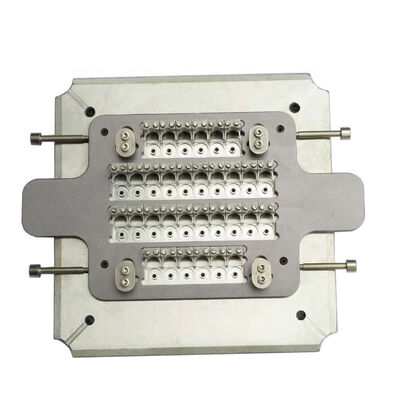

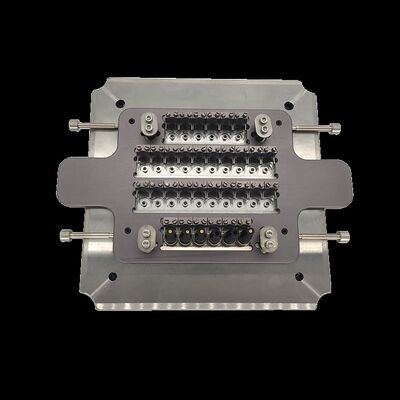

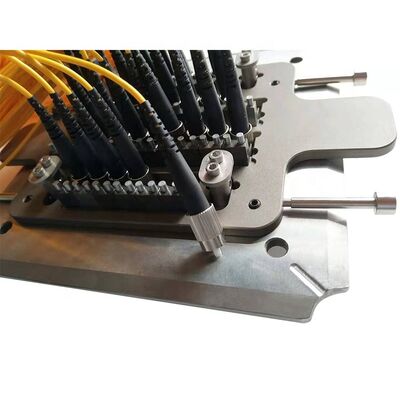

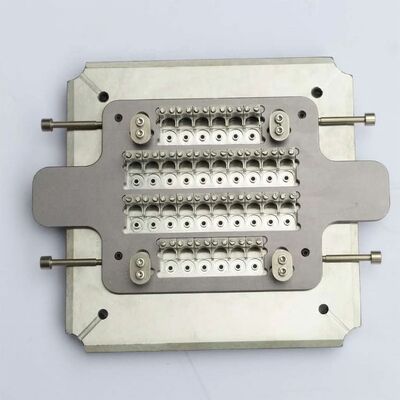

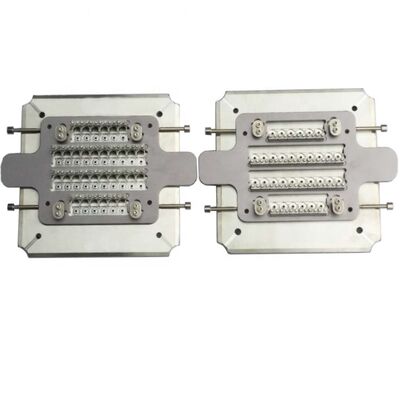

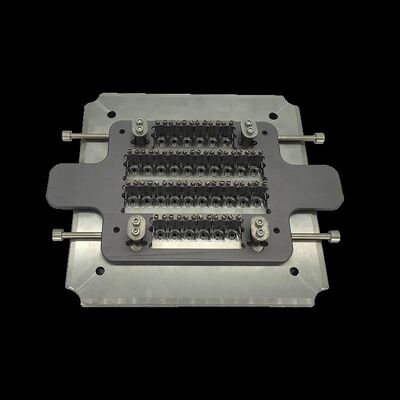

32-Fiber Abrasion Resistance Hardened Stainless Steel S136 FC UPC Fiber Optic Polishing Jig
Product Details
| Weight: | 1.5kg | Material: | Hardened Stainless Steel S136 |
|---|---|---|---|
| Dimensions: | 174mmx174mmx8mm | No. Of Fiber: | 32 |
| Insertion Loss SM/UPC: | ≤0.20dB | Insertion Loss SM/APC: | ≤0.20dB |
| Insertion Loss MM/UPC: | ≤0.50dB | Return Loss SM/UPC: | ≥55dB |
| Return Loss SM/APC: | ≥60dB | Return Loss MM/UPC: | ≥30dB |
| Radius Of Curvature UPC: | 5-25mm | Radius Of Curvature APC: | 5-12mm |
| Apex Offset: | 0-50μm | Fiber Height: | -100~+50μm |
| Angle APC: | 8.00+/-0.50° | ||
| Highlight |
32-Fiber Polishing Fixture,Abrasion Resistance Fiber Optic Polishing Jig,Hardened Stainless Steel S136 FC UPC Polishing Jig |
||
Product Description
- Designed for grinding and polishing of FC UPC connectors
- High-quality end face polishing with excellent 3D pass rate and low repeat repair rate
- Quick assembly and disassembly fixture for easy and flexible operation
- Wear-resistant, rust-proof construction that resists deformation
- Replaceable FC UPC fixture adapter attachment extends fixture life
| Place of Origin | China |
| Brand Name | Chuanglixun |
| Model Number | FC-PC-36 |
| Type | Fiber Optic Polishing Jig |
| No. of Fiber Positions | 32 positions |
| Application | FTTH, Fiber Optic Patch Cord Production |
| Function | Hold and polish FC UPC connectors |
| Dimensions | 174mm × 174mm × 20mm |
| Weight | 1.5kg |
| Material | Hardened stainless steel S136 |
| Package | Cushion Pads and carton case |
| MOQ | 1PCS |
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return Loss | ≥55dB | ≥60dB | ≥30dB |
| Parameters | UPC Criterion | APC Criterion |
|---|---|---|
| Radius of Curvature | 5-25mm | 5-12mm |
| Apex Offset | 0-50μm | 0-50μm |
| Fiber Height | -100~+50μm | -100~+50μm |
| Angle | n/a | 8.00+/-0.50° |
Product Highlights
32-fiber FC UPC polishing jig made of hardened S136 stainless steel. Ensures high-quality end-face polishing with excellent 3D data, low repeat repair rates, and quick assembly/disassembly. Wear-resistant, rust-proof design with replaceable adapters for extended service life.
