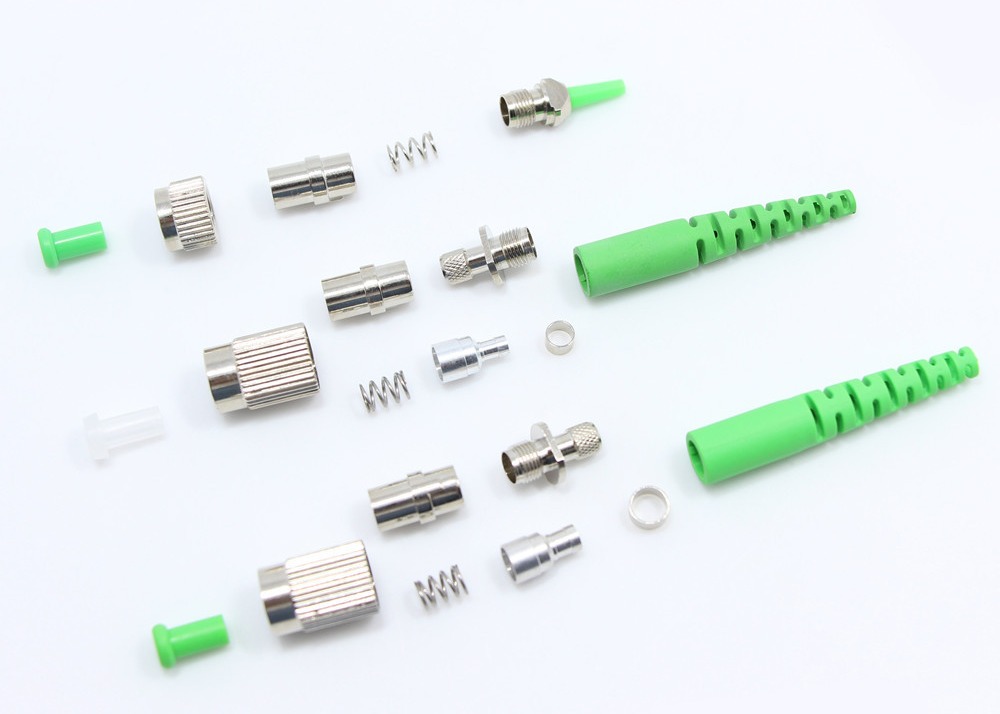

FC Fiber Optic Connector Parts FC Fiber Connector
Model:SX-SM-FC
Place of Origin:ShenZhen,China
Description
1. Can form a continuous light path.
2. Repeatable handling.
3. It can be connected to active or passive devices.
4. Movable connection with system and meter.
5. It is widely used in optical communication, optical sensor and other optical application fields, such as long-distance trunk line network, MAN, access network, optical fiber CATV network, optical fiber data network, DWDM system, etc. It is the most used optical passive device at present.
Basic principles and Feature
1. Fiber optic connector can be divided into three parts according to the structure :(1) ceramic insert, (2) connection structure (composed of pieces), (3) optical fiber cable.
2. Fiber optic connectors are divided into PC and APC according to the end face shape, and the end face of APC connector is generally ground into 8 degrees of inclination.
3. Fiber optic connectors are divided into FC, SC, ST, MU, LC, MT-RJ, MPO, MPX, coupling short pin series and so on.
4. According to the ceramic grinding end face: PC & APC
5. According to the type of commonly used connector fiber is divided into: single mode, multi-mode
6. According to the size of optical fiber connector cable: Ø3.0mm, chip 2.0mm, and 0.9mm
Specifications
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | |||||||
-WANs,LANs,CATV
-Testing equipment
-Communication system
-Telecommunication networks
